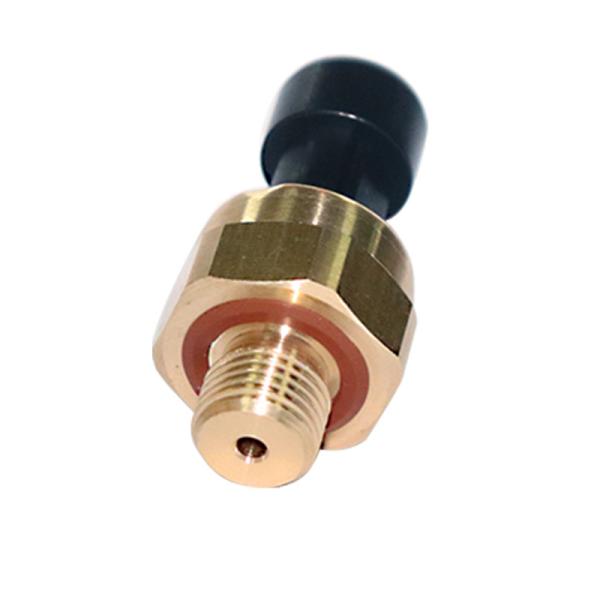

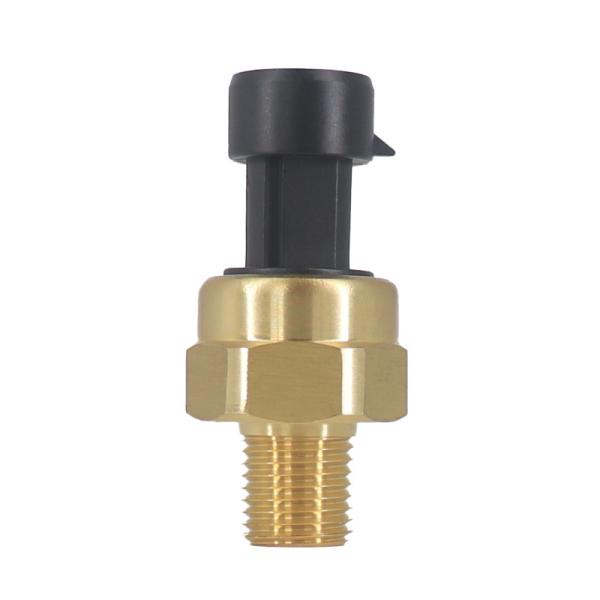

WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
Specifications
Brand Name :
WNK
Model Number :
WNK83mA
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$6.50/Sets
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000/ Piece/ Month
Delivery Time :
5-8 work days
Packaging Details :
standard export carton box for WNK83MA pressure sensor or as per your
Warranty :
1 YEAR
Customized support :
OEM, ODM
Accuracy :
±1%F.S.
Measured media :
Liquid, gas
Output :
0.5-4.5VDC
Input :
4.75-5.2VDC
Storage temperature :
-40~110°C
Work temperature :
-20~70°C
Electrical connection :
Packard or Cable outlet
Mechanical connection :
1/4NPT or G1/4
IP Rate :
IP65
Housing material :
Brass
Description

WNK Low Cost 0.5-4.5V Brass Pressure Sensor For Water Air Gas

WNK Low Cost Brass Pressure Sensor

Product Description
Applicable media Liquid, gas, steam
Pressure range 0-10bar, 0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurement Gauge pressure, sealing pressure, absolute pressure
Output 0.5-4.5VDC
Power supply 4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability) 1%F.S.
Work temperature -20~70ºC
Ambient temp -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable outlet/ Packard
Mechanical connection 1/4NPT G1/4
Housing material Brass

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment
pressure measurement.

Mechanical Dimension:

Product picture
