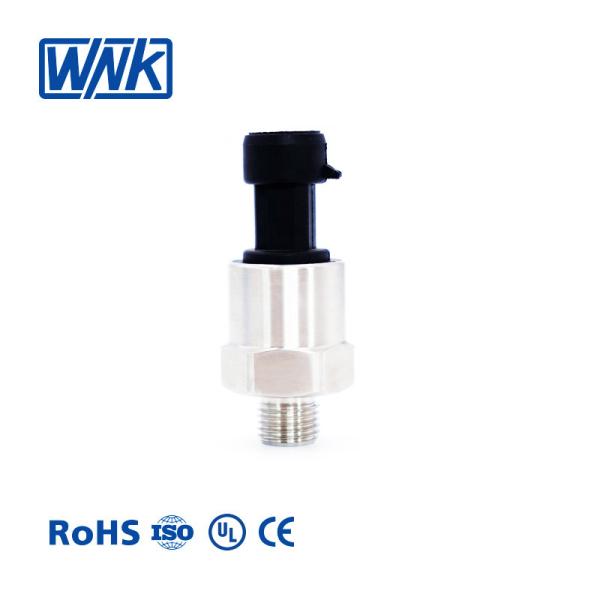

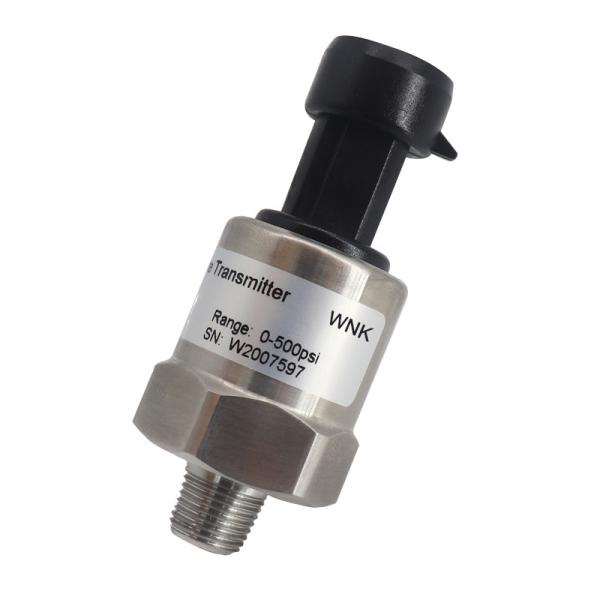

Water Pressure Sensor For Refrigerant HVAC 4 - 20mA 0.5 - 4.5V
Water Pressure Sensor For Refrigerant HVAC 4 - 20mA 0.5 - 4.5V
Water Pressure Sensor For Refrigerant HVAC 4 - 20mA 0.5 - 4.5V
Water Pressure Sensor For Refrigerant HVAC 4 - 20mA 0.5 - 4.5V
Specifications
Brand Name :
WNK
Model Number :
WNK80mA
Certification :
CE, ROHS
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$12.00 - $19.00/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000 Set/Sets per Week
Delivery Time :
5-8 work days
Packaging Details :
each product in one inner paper box with foam protection
Warranty :
1 YEAR
Customized support :
OEM, ODM
Measured media :
liquid, gas and steam
Output signals :
4~20mA, 1-5V,
Accuracy :
0.2%F.S, 0.5%F.S
Pressure range :
0~6MPa
Protection class :
IP65
Housing material :
304SST
Power Supply :
24VDC/12VDC/5VDC
Product name :
4-20mA 0.5-4.5V Pressure Sensor For Oil Gas
Keyword :
mems pressure sensor
MOQ :
1set
Port :
Shanghai port
Description

4-20mA 0.5-4.5V Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC

Water Pressure Sensor/ Air Pressure Transmitter For Refrigerant HVAC

Product Description

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems

Product Show

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
