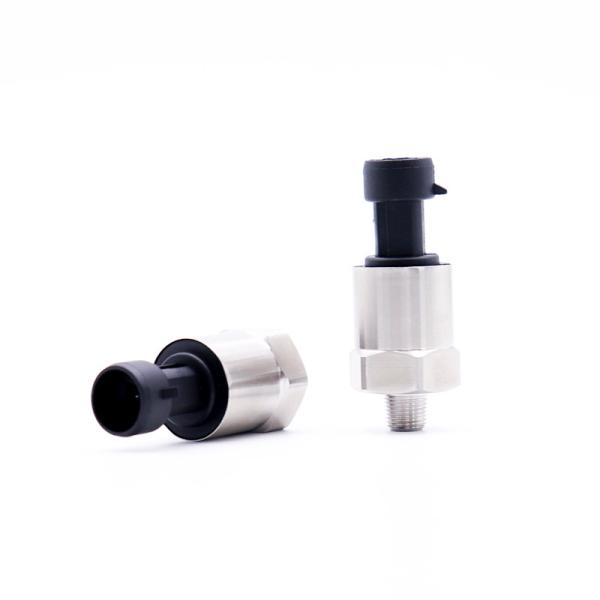

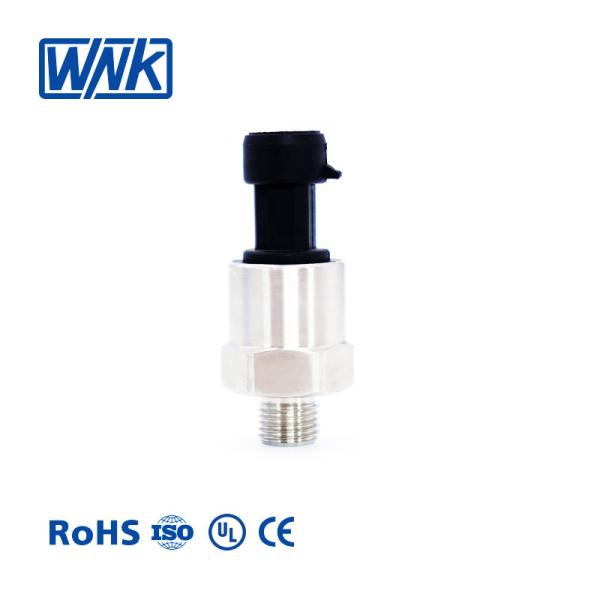

0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
Specifications
Brand Name :
WNK
Model Number :
WNK80MA
Certification :
CE, ROHS
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$12.00 - $19.00/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 Piece/Pieces per Month Compressor Pressure Sensor/ i2c Pressure Sensor
Delivery Time :
5-8 work days
Packaging Details :
paper carton or as per clients' requirement
Low Cost 4-20ma i2c Pressure Sensor HVAC Compressor Pressure Sensor for Water Air Gas
Warranty :
1 year
Customized support :
OEM, ODM
Pressure range :
0-60bar
Comprehensive accuracy :
0.1, 0.25, 0.5, 1.0
Output :
4-20ma 0.5-4.5v i2c
Protection class :
IP65
Housing material :
ss316
Pressure type :
gauge, absolute, vacuum, negative pressure
OEM service :
OEM, ODM, customization available
Application :
oil&gas, petrol, petrochemical, chemical industry
MOQ :
1 PC
Keywords :
Compressor Pressure Sensor/ i2c Pressure Sensor
Port :
shanghai
Description
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
Product Description

miniature piezoresistive pressure transducer, engine oil pressure transmitter
WNK811 is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and piezoresistive diffused silicon oil filled pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 3 times of the range, and with a wide of abosulte and gauge pressure.

With high output and wide ranges, WNK811 also provide with wide range customization.


Process Connection
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
Product Spec
WNK811 diffused silicon oil filled pressure sensor with customization
Applicable media
Liquid, Gas
Pressure range
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Customization Connector, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65
About us
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
Related Products
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output

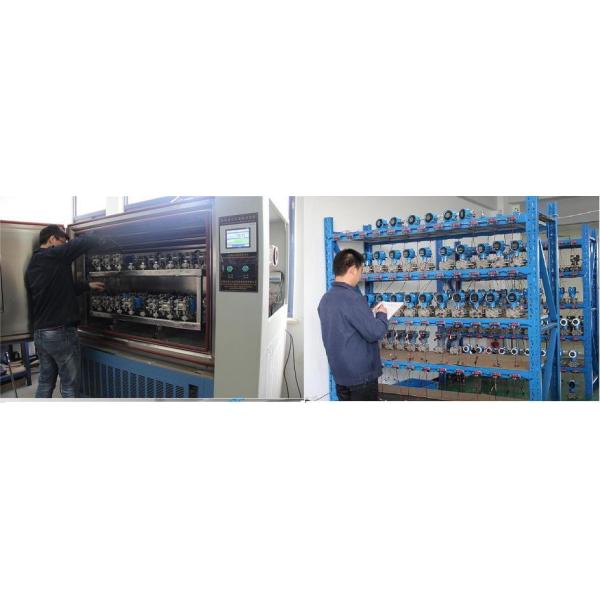

Our Quality Control
0.5V-4.5V Micro Absolute Vacuum Pressure Transducer 4-20mA I2C Output

Our product quality is guaranteed

1. 100% of all products we do temperature compensation and aging test before shipment.

2. Our products are all calibrated and shipped with certificate.
