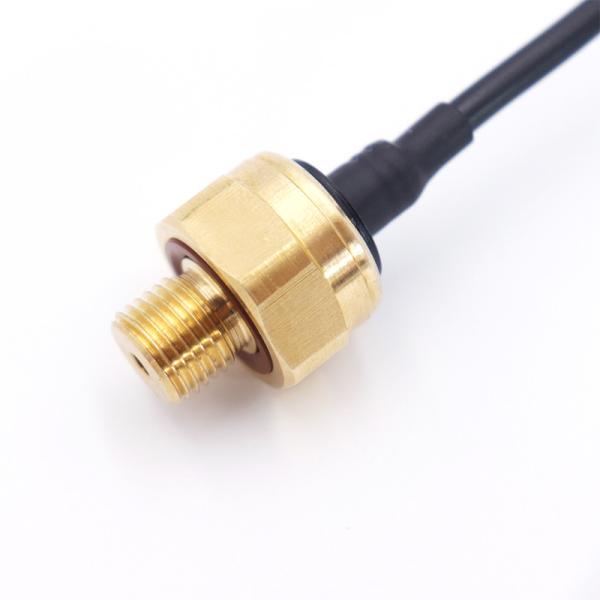

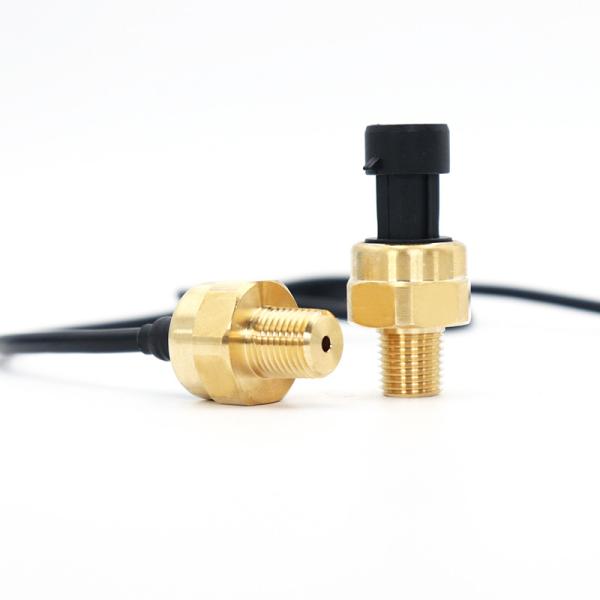

WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar
WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar
WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar
WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar
WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar
WNK Brass Pressure Sensor For Water Air Gas 0.5 To 4.5V 0 - 20 Bar
Specifications
Brand Name :
WNK
Model Number :
WNK83mA
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$6.00 - $6.50/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
3000 Piece/Pieces per Month 5V pressure sensor
Delivery Time :
5-8 work days
Packaging Details :
each product in one inner paper box with protection
Warranty :
1 YEAR
Customized support :
OEM, ODM
Model :
WNK83mA
Application :
constant pressure water supply system
Measured media :
typical water, gas, oil, hydraulic oil, etc.
Pressure range :
0-10bar,0-20bar
Power supply :
5V DC
Output :
0.5-4.5VDC
Protection class :
IP65 /67
Housing Material :
Brass
OEM service :
OEM, ODM, customization available
Operating temperature: :
-40~85 ℃
Port :
Shanghai/Ningbo
Description
WNK 0.5-4.5V 0-20Bar Brass Pressure Sensor For Water Air Gas
0-20Bar Brass Pressure Sensor
Specification
WNK83MA Gauge/Sealing Pressure Sensor
Applicable media
Liquid, Gas
Pressure range
0-10bar, 0-20bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
0.5-4.5V
Power supply
4.75-5.25VDC
Supply current
15mA Max
Accuracy(linearity,Hysteresis and Repeatability)
±1%F.S.
Total error band
±3%
Max pressure
2 times
Burst pressure
3 times
power(electrical) connection
Parkard connector, Direct cable outlet(50cm)
Process connection
G1/4, 1/4NPT
Housing material
Brass
Protection
IP65
Working temperature
-20~70℃
Storge temperature
-40~110℃
Product Description
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Application

WNK83MA is solution for below applications: •
Pressure measurement of gas or liquid in various areas;
•Liquid level measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive
electronics controlling, air compressor, HVAC, pump, valve and etc;
