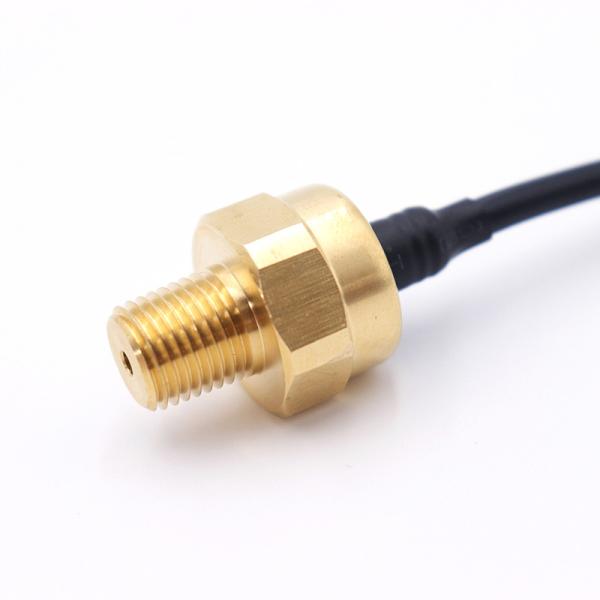

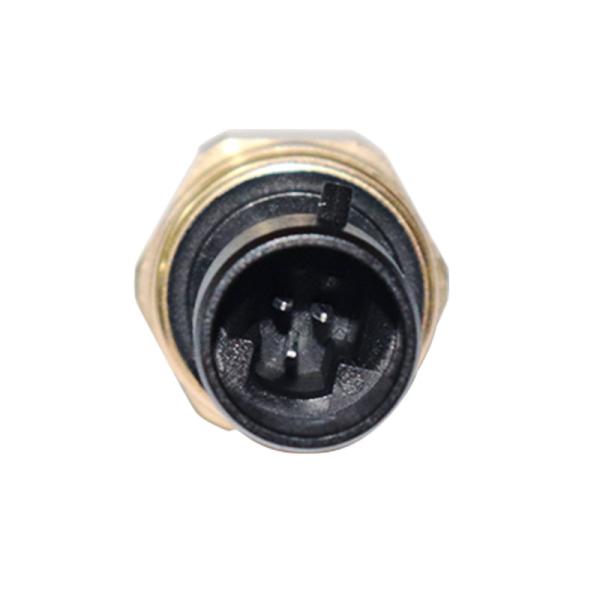

Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Specifications
Brand Name :
WNK
Model Number :
WNK83mA
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$6.50/Sets
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000/ Piece/ Month
Delivery Time :
5-8 work days
Packaging Details :
standard export carton box for WNK83MA pressure sensor or as per your
Warranty :
1 YEAR
Customized support :
OEM, ODM
Accuracy :
±1%F.S.
Measured media :
Liquid, gas
Output :
0.5-4.5VDC
Input :
4.75-5.2VDC
Storage temperature :
-40~110°C
Work temperature :
-20~70°C
Electrical connection :
Packard or Cable outlet
Mechanical connection :
1/4NPT or G1/4
IP Rate :
IP65
Housing material :
Brass
Description

0.5-4.5V Output Brass Pressure Sensor For Refrigerant HVAC Application

WNK83MA Gauge/Sealing Pressure Sensor
Applicable media Liquid, Gas
Pressure range 0-10bar, 0-20bar
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25VDC
Supply current 15mA Max
Accuracy(linearity,Hysteresis and Repeatability) ±1%F.S.
Total error band ±3%
Max pressure 2 times
Burst pressure 3 times
power(electrical) connection Parkard connector, Direct cable outlet(50cm)
Process connection G1/4, 1/4NPT
Housing material Brass
Protection IP65
Working temperature -20~70℃
Storge temperature -40~110℃
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output

Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
