WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar
WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar
WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar
WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar
WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar
WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK83MA
Packaging Details :
Each five pcs in one paper box 100 pcs in one carton
Price :
$6.50/Pieces
Warranty :
1 year
Customized support :
OEM, ODM
Pressure type :
Gauge, sealing, absolute pressure
Measure range :
0-10bar, 0-20bar
Analog :
0.5-4.5V
Accuracy :
1%FS
Supply voltage :
4.75-5.25 VDC

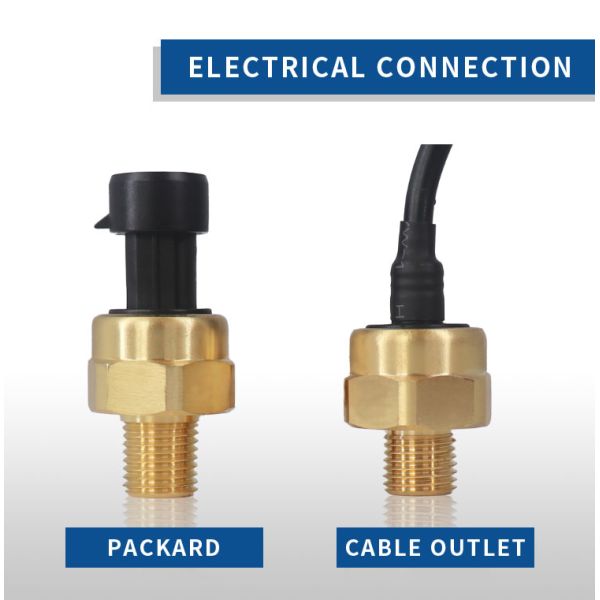

Electrical connection :
Packard/ Cable Outlet
Process connection :
1/4 NPT, G1/4
Material :
Brass
Cell :
Ceramic capacitive pressure sensor
Keywords :
Low Cost Pressure Sensor/ Brass Pressure Sensor
Description

Low Cost Brass Ceramic Capacitive 0.5-4.5V Pressure Sensor For Air Gas Water

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

This product is in stock, please place an order directly.

If you have any other questions, please feel free to contact us.

Applicable media Liquid, gas and steam
Pressure range 0-10bar,0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply

4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Parkard/ Cable Outlet
Mechanical connection 1/4 NPT, G1/4
Housing material Brass

Dimension

WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

Product Show

Applications

Company Information

WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

Packaging & Shipping

WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
