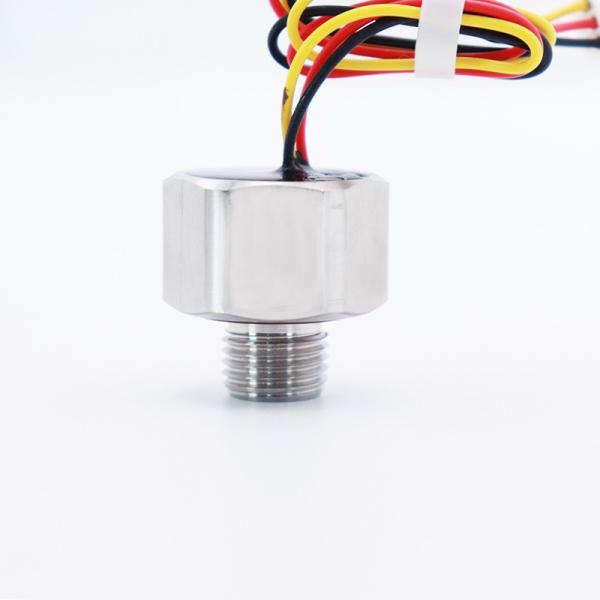

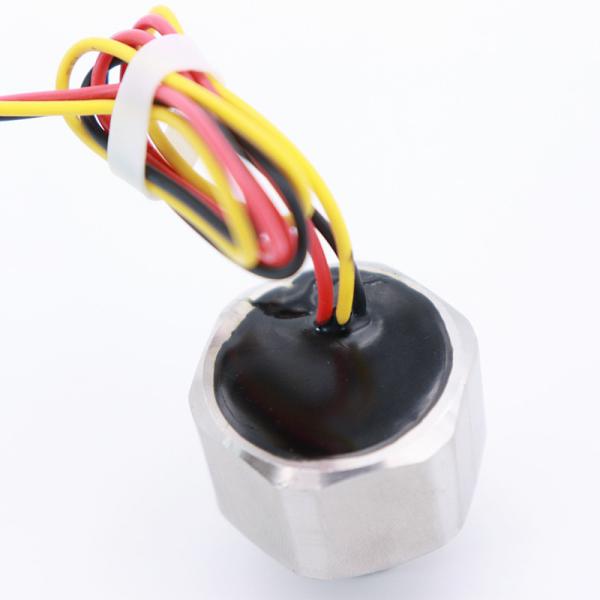

ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
Specifications
Certification :
CE, ROHS
Place of Origin :
Anhui, China
Brand Name :
WNK, WNK
Model Number :
WNK80MA, WNK811-1
Packaging Details :
each product in one inner paper box with protection
Supply Ability :
2000 Set/Sets per Week
Price :
$10.00 - $35.00/Pieces
Warranty :
1 YEAR
Customized support :
OEM, ODM
Measured media :
liquid, gas and steam
Output signals :
4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy :
0.2%F.S, 0.5%F.S
Pressure range :
-100kPa~0, 0-10kPa, 100kPa, 1MPa, 5MPa, 10MPa, 20MKPa, 50MPa
Protection class :
IP65
Housing material :
304SST
Power Supply :
24VDC/12VDC/5VDC/3.3V
Electrical connection :
Cable outlet, connector
Port :
Shanghai port
Description

China oil filled piezoresistive diffused silicon pressure sensor 0.5-4.5V 0-5V 4-20mA I2C


WNK811 is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and piezoresistive diffused silicon oil filled pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 3 times of the range, and with a wide of abosulte and gauge pressure.

With high output and wide ranges, WNK811 also provide with wide range customization.

ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer


Product Spec
WNK811 diffused silicon oil filled pressure sensor with customization
Applicable media
Liquid, Gas
Pressure range
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Customization Connector, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

Process Connection
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
About us
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
Related Products
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer
Our Quality Control
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer

Our product quality is guaranteed

1. 100% of all products we do temperature compensation and aging test before shipment.

2. Our products are all calibrated and shipped with certificate.
