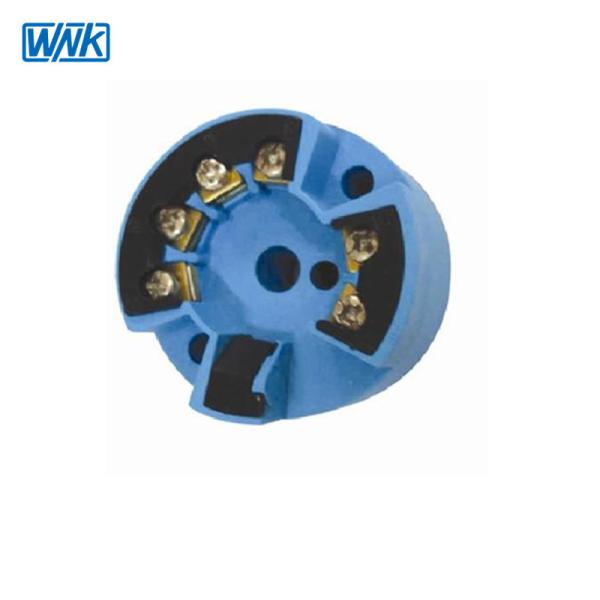

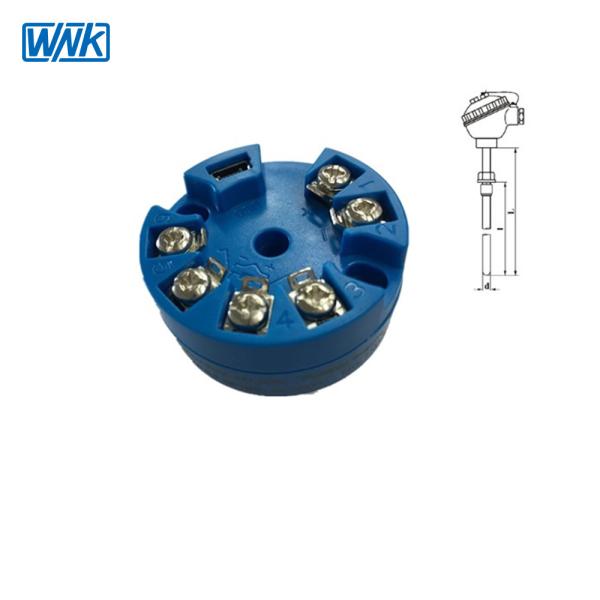

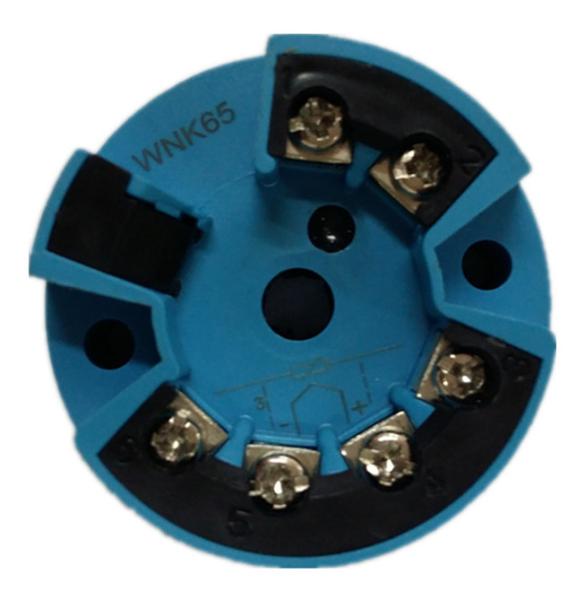

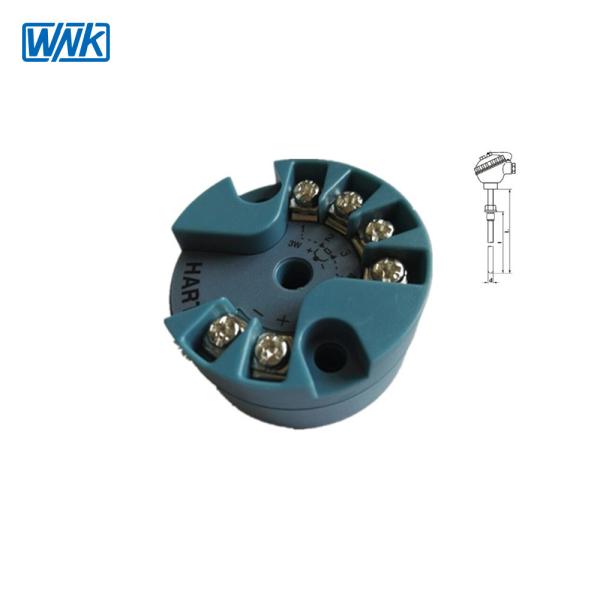

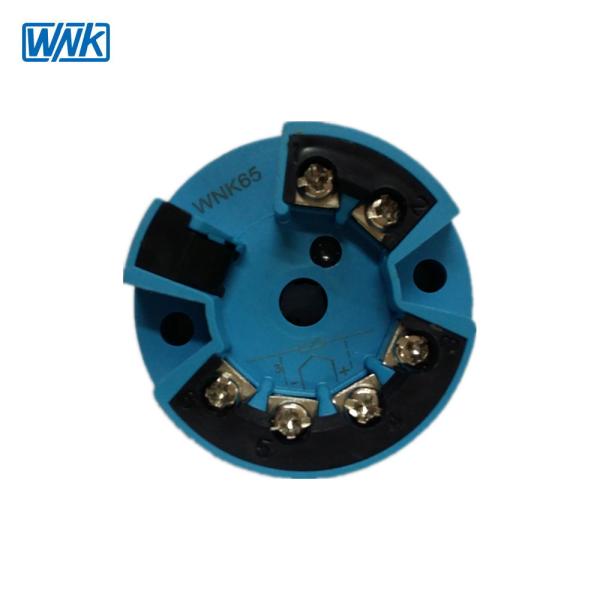

DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK65
Packaging Details :
standard export packing
Supply Ability :
2000 Set/Sets per Week
Price :
$12.00 - $50.00/Sets
Measured media :
liquid, gas and steam
Output signals :
4~20mA, Hart for option
Input :
Thermocouple, RTD, MV, Resistive sensor
Housing material :
Plastic
Temperature range :
-40℃~+85℃
Power Supply :
9~32 V
Dimension :
44mm(diameter)
Port :
Shanghai port
Description


PT100 4-20mA Head Mounted Temperature Transmitter without Display
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and -100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.


Main Parameteres

  1. Supply power: DC9V~32V;
  2. Output signal 4-20mA with HART protocol digital communication ( two-wire )
  3. Communicator or PC configuration and debugging software can do remote management;
  4. Internal code end compensation accuracy: ±0.5ºC
  5. Damp: 0-64 seconds adjustable;
  6. Data refreshing frequency: 4times/second;
  7. Stability: ±0.2%/year;
  8. Woring ambient temperature range: -40ºC~+85ºC;
  9. Dimensions: φ44mm;
  10. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
  11. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ


Wiring ports diagram

DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter

Sensor connection ports

DC9V Smart Temperature Transmitter , Dia 44mm Head Mounted Temperature Transmitter
