G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK83mA
Packaging Details :
Each five pcs in one paper box 100 pcs in one carton
Supply Ability :
5000 Piece/Pieces per Month g1/4 Pressure Transducer Sensor/ Ceramic Pressure 10bar
Price :
$6.50/Pieces >=1 Pieces
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Delivery Time :
5-8 work days
Warranty :
1 year
Customized support :
OEM, ODM
Pressure type :
Gauge, sealing, absolute pressure
Pressure range :
0.-10bar/ 0-20bar
Output signal :
0.5-4.5v
Accuracy :
1%
Supply voltage :
4.75-5.25 VDC
Electrical connection :
Cable outlet/ Packard
Process connection :
G1/4
Material :
Brass
Measured media :
liquid, gas and steam
Keywords :
g1/4 Pressure Transducer Sensor/ Ceramic Pressure 10bar
Port :
shanghai
Description

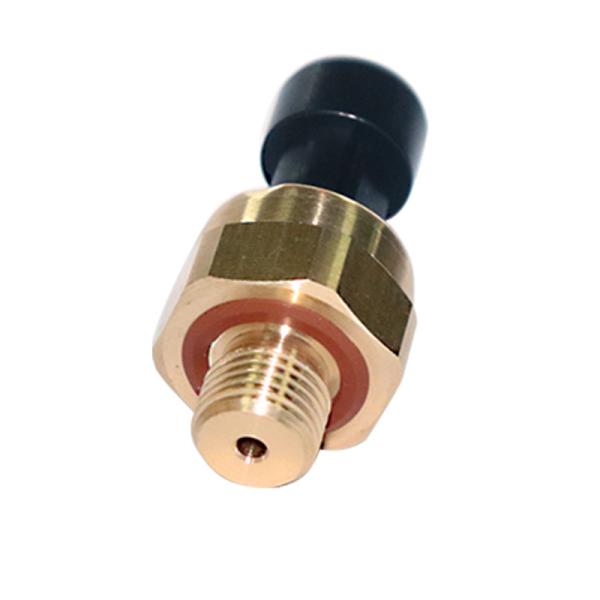

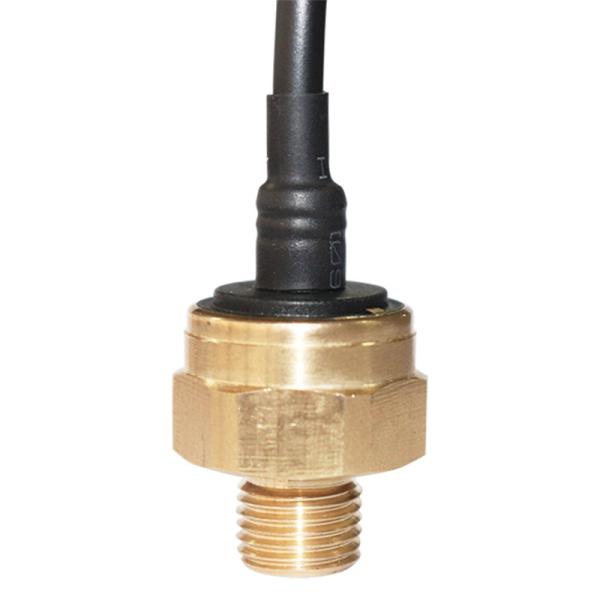

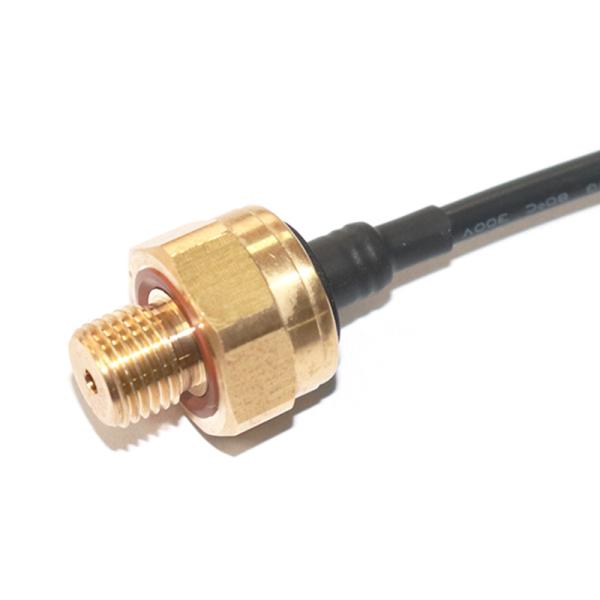

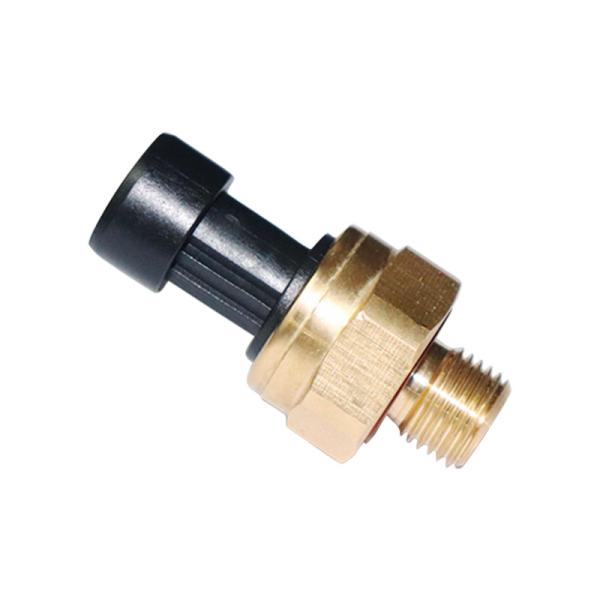

g1/4 Pressure Transducer Sensor Ceramic Pressure 10bar For Water Liquid Air

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Specification

Applicable Media Liquid, Gas, Steam
Output 0.5-4.5v dc
Power supply 4.75-5.25v dc
Housing material Brass
Electrical Connection G1/4
Mechanical Connection Cable Outlet/ Packard
Cell Ceramic capacitive pressure sensor
pressure range 0-10bar/ 0-20bar
Accuracy 1%FS
Working temperature -20-70C
Company Information

G1 4 Pressure Transducer Sensor 10bar For Water Liquid AirG1 4 Pressure Transducer Sensor 10bar For Water Liquid AirG1 4 Pressure Transducer Sensor 10bar For Water Liquid AirG1 4 Pressure Transducer Sensor 10bar For Water Liquid AirG1 4 Pressure Transducer Sensor 10bar For Water Liquid AirG1 4 Pressure Transducer Sensor 10bar For Water Liquid Air

Packaging & Shipping

G1 4 Pressure Transducer Sensor 10bar For Water Liquid AirG1 4 Pressure Transducer Sensor 10bar For Water Liquid Air

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
