PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WLD
Packaging Details :
One set in per carton, standard packing
Supply Ability :
1000 Piece/Pieces per Month
Price :
$480.00/Pieces >=1 Pieces
Type :
Variable Area Water Flowmeters
Maximum flow rate :
15m/s
Fluid conductivity :
≥5μs/cm
Ambient temperature :
-25~60℃,-10~60℃
Liner material :
PTFE/PVF/F46/Neoprene/PUR
Fluid maximum temperature :
100℃,150℃
Signal electrode form :
DN15-DN2600,DN300-DN1600
Electrode material :
SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium
Connecting flange material :
Carbon Steel
Grounding flange material :
SST 1Cr18Ni9Ti
Protection :
IP65/68
Port :
Shanghai
Description
Product Description

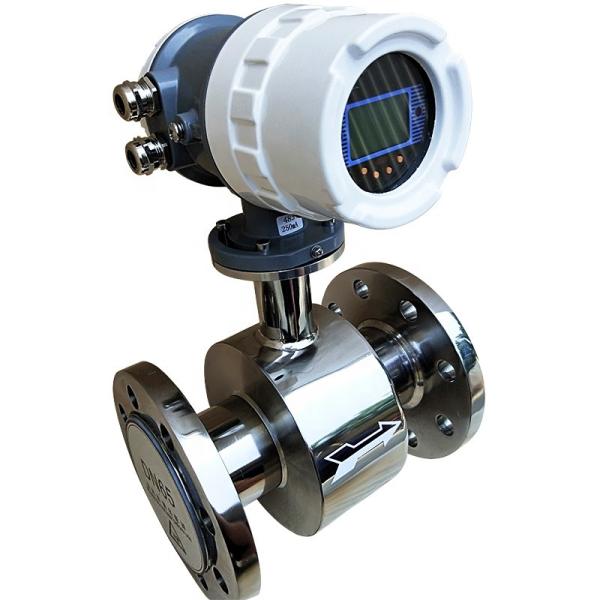

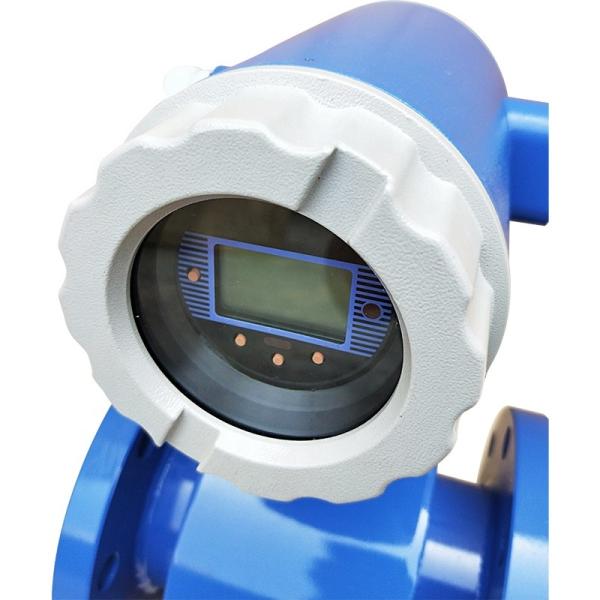

PTFE/PVF Liner Material High Stability Flow Meter Water Flow Sensor For Medicine Field
WLD electromagnetic flowmeter is manufactured with the latest technology with the following defects:
- Measurements are not affected by changes in fluid density, viscosity, temperature, pressure and conductivity;
- Unobstructed flow components in the measuring tube, no pressure loss, low requirements for straight pipe sections;
- Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials;
- The converter adopts novel excitation mode, low power consumption, stable zero point and high precision. The flow range can be1500:1
- The converter can be integrated or separated from the sensor;
- The converter adopts 16-bit high-performance microprocessor, 2X16LCD display, convenient parameter setting and reliable programming;
- Explosion-proof instruments can be used in corresponding explosion-proof places;
- The converter uses surface mount technology (SMT) with self-test and self-diagnosis functions;
Specifications
Maximum Flow Rate
15m/s
Nominal Pressure
DN15~DN150
4.0Mpa
DN15~DN600
1.6Mpa
DN200~DN1000
1.0Mpa
DN700~DN3000
0.6Mpa
Ambient Temperature
Sensor
-25~60℃
Coverter
-10~60℃
Liner material and fluid maximum temperature
Liner material
Separate type
Integrated type
PTFE
100℃;150℃
70℃
PVF
100℃;150℃
70℃
FEP
100℃;150℃
70℃
Neoprene
80℃;120℃
70℃
PUR
80℃
70℃
Signal electrode form
Fixed (DN15~DN2600) Scraper(DN300-DN1600)
Electrode material
SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium
Connecting flange Material
Carbon Steel
Grounding flange material
SST 1Cr18Ni9Ti
Imported prodective flange material
DN15~DN600
SST 1Cr18Ni9Ti
DN700-DN3000
Carbon Steel
Protection
DN15-DN150 Separate rubber and polyurethane liner sensors
IP65.68(Special customize)
DN200-DN2600 Separate rubber and polyurethane liner sensors
IP68 under water 10 meters
Other sensor converter
IP65
Spacing(separate type )
The Spacing Less than or equal to 100 meters or need Special customize
Product Application
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
Product Show
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
Hot Products
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
Our Company
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
Packing&Shipping
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
