200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK8010-TT
Packaging Details :
Each set into one individual carton, packed with foam protection;
Supply Ability :
3000 Piece/Pieces per Week Water Level Sensor/ Fuel Level Sensor
Price :
$35.00 - $50.00/Pieces
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Delivery Time :
5-8 work days
Grade :
Industrial
Warranty :
1 year
Customized support :
OEM, ODM
Measuring Range :
0...1~200 meters
Accuracy :
0.25%FS, 0.5%FS,
Analog Output :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Application Field :
Wells, Water Tank, Liquid, Sea water
Ingress Protection :
IP68
Power Supply :
12-30V DC/5v/3.3-5v
Digital Output :
RS485, IIC, I2C
Cable Material :
PF, PTFE (anti-corrosive)
Housing :
304SS, 316L(anti-corrosive)
Type :
Water Level Transmitter
Port :
Shanghai, Ningbo, Shenzhen, Guangzhou
Description

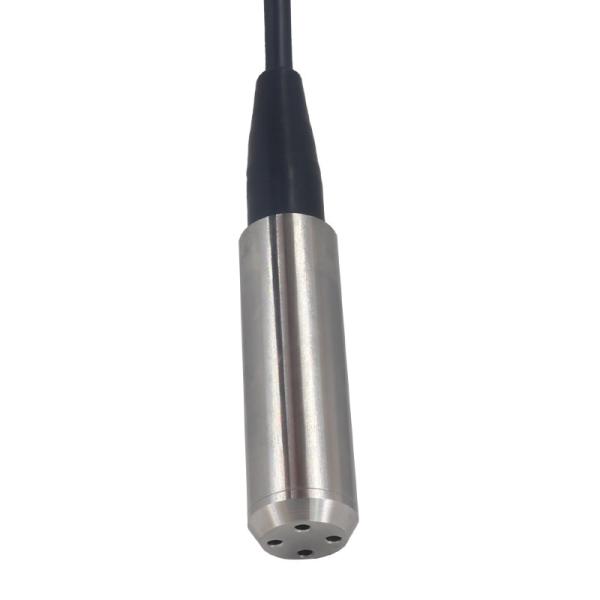

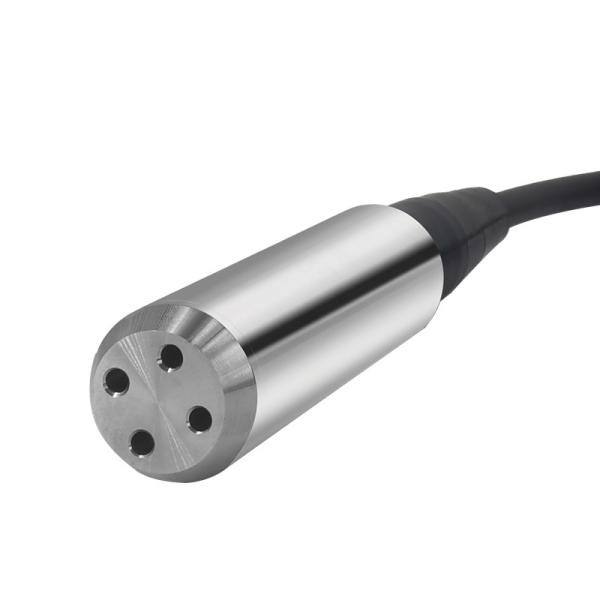

Water Liquid Oil Fuel Level Sensor Transmitter For Corrosive Media

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Output

4~20mA, 0-10mA, 0-5V, 1-5V, customization

Level range

0-0.5~200mH2O

Overload

150% of sensor range

Measuring medium

Liquid

Accuracy

±0.2%FS, ±0.5%FS

Stability

0.25%FS/ year

Housing material

Stainless steel

Cable material

Polyvinyl Fluoride, PTFE

Power Supply

24VDC

Ambient temperature

-20~85℃

Process temperature

-20~85℃

Compensation temperature

-20~85℃

Protection class

IP68

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Dimensions

200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media

200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media

Company Information

200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media

Exhibition

200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media

Certification

200m Water Level Transmitter Fuel Oil Level Sensor For Corrosive Media

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
