Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK8010-TT
Packaging Details :
Each set into one individual carton, protection with foam. Then into master carton
Supply Ability :
5000 Piece/Pieces per Month Water Tank Level Transmitter
Price :
$35.00 - $50.00/Pieces
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Delivery Time :
5-8 work days
Grade :
DIY, Industrial
Warranty :
1 year
Customized support :
OEM, ODM
Pressure range: :
0...1~200 metres
Output :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Accuracy :
0.2%FS, 0.5%FS,
Power supply :
12~36VDC
Protection class :
IP68
Application :
Rainwater, Drinking water,Wastewater, Sewage, Seawater
Housing Material :
304SS, 316L
Operating temperature: :
-40~85 ℃
Type :
Gauge
OEM service :
OEM, ODM, customization available
Port :
Shanghai/Ningbo
Description
Water Tank Level Transmitter Dirty Water Level Sensor For Corrisive Media

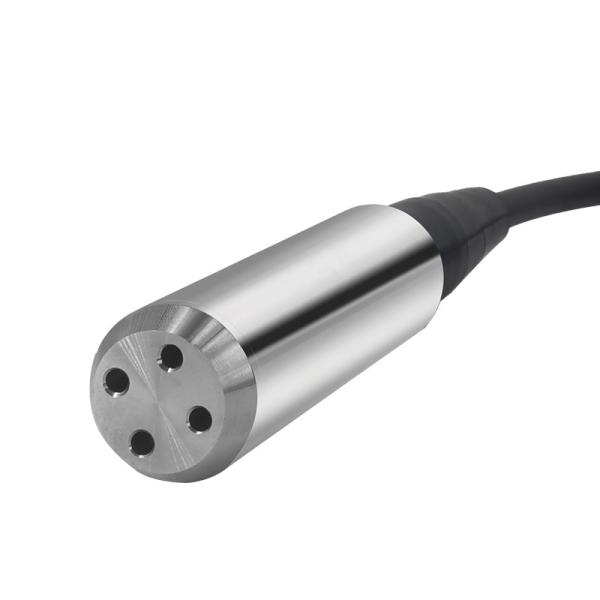

- Our WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price


Water Tank Level Transmitter Dirty Water Level Sensor For Corrisive Media

Water Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive Media

Specifications

Output

4~20mA, 0-10mA, 0-5V, 1-5V, customization

Level range

0-0.5~200mH2O

Overload

150% of sensor range

Measuring medium

Liquid

Accuracy

±0.2%FS, ±0.5%FS

Stability

0.25%FS/ year

Housing material

Stainless steel

Cable material

Polyvinyl Fluoride, PTFE

Power Supply

24VDC

Ambient temperature

-20~85℃

Process temperature

-20~85℃

Compensation temperature

-20~85℃

Protection class

IP68

Ordering Code

Water Tank Level Transmitter Dirty Water Level Sensor For Corrisive Media

Company Information

Water Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive MediaWater Tank Level Transmitter Dirty Water Level Sensor For Corrisive Media

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
