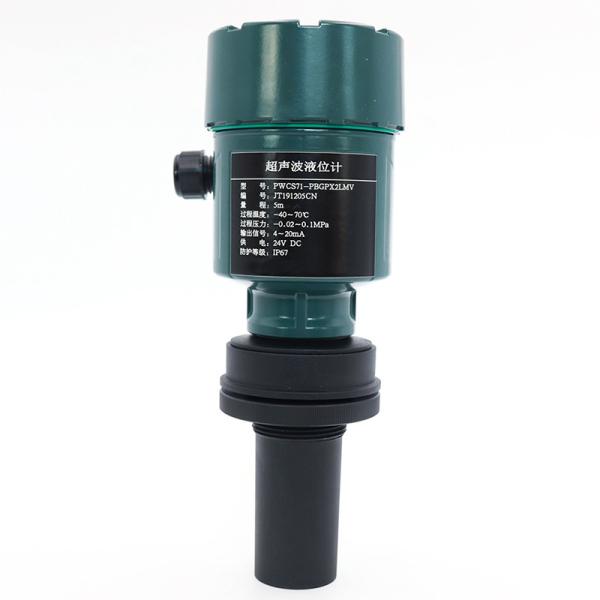

Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
PWCS72
Product Name :
ultrasonic water level meter
Measuring range :
0.3-10m
Process connection :
G1 1/2A or flange, Bracket
Housing material :
Aluminum/ABS
Accuracy :
0.25%FS
Transducer material :
PA66+GF30/PVDF
Process temperature :
-40-70℃
Process pressure :
-0.02-0.1MPa
Output :
4-20 mA/HART/RS485/Modbus
Explosion-proof grade :
Exia IIB T6 Ga
Price :
$200.00/Units 1-49 Units
Description
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor

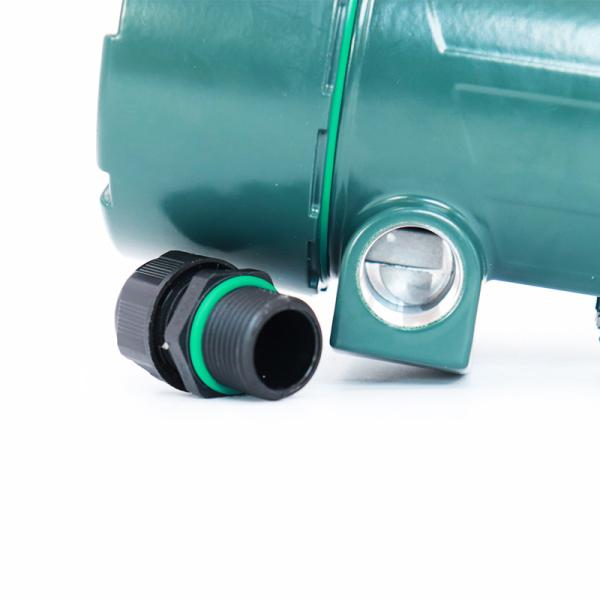

Aluminum Housing material
The Housing is made of aluminum with specific explosion-proof function
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor



Two transducer options
Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor


High Technology Functions
Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor


Wide Measuring Range and High Accuracy
Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
Application Case
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Model
Measuring Range
Process Connection
Transducer Material
PWCS71
0.25-5m
G11/2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS72
0.3-10m
G2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS73
0.4-10m
M66*2/Flange/Bracket
PA66+GF30/PVDF
PWCS74
0.5-20m
M95*2/Flange/Bracket
PA66+GF30
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Company Profile
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
Explosion-proof 4-20ma Ultrasonic Water Tank Level Meter Sensor
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
