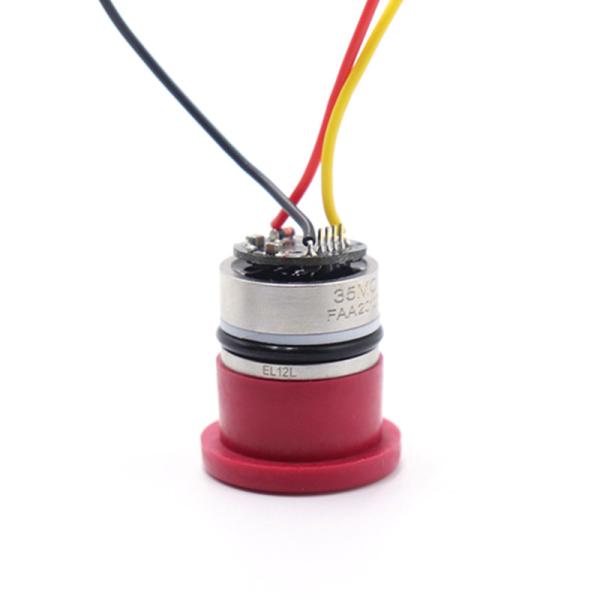

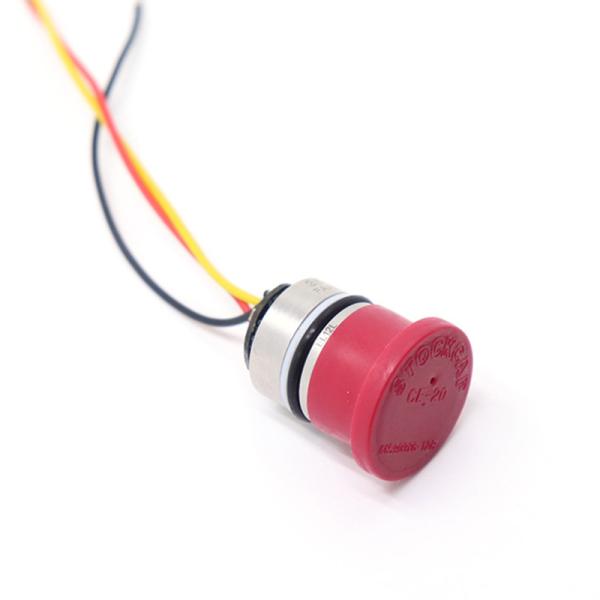

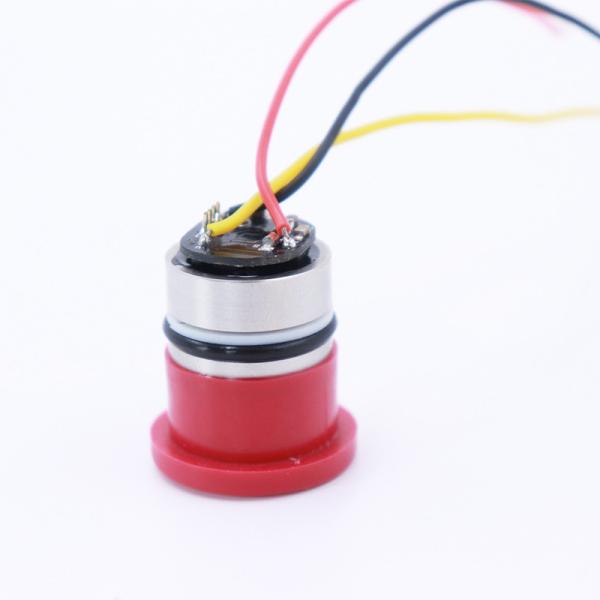

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa
Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
W19
Packaging Details :
paper carton or as client's requirement
Supply Ability :
10000 Piece/Pieces per Month 4-20ma Pressure Sensor
MOQ :
10 Pieces
Price :
$12.00/Pieces >=10 Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Delivery Time :
5-8 work days
Warranty :
1 year
Customized support :
OEM, ODM
Output signal :
0.5-4.5V, I2C, SPI, 4~20mA, 1-5V, 0-10V
Accuracy :
0.2%FS, 0.5%FS, 1%FS
Pressure range :
0~60MPa
Application :
Pressure measurement of gas, vapor or liquid in various areas
Pressure type :
GP, AP, Sealing pressure
Sensor type :
piezoresistive pressure sensor
Overload :
2-3 times of measuring pressure
Keywords :
4-20mA pressure sensor/water pressure sensor
MOQ :
1 PC
Port :
Shanghai
Description

4-20mA Smart High Accuracy Silicon Water Pressure Sensor With 0.5-4.5V DC/1-5V/SPI/ I2C

WD19 series is a 14-bits digital output pressure sensor, supporting I2C interface protocol. The external pressure is passed to sensitive elements through 316L stainless steel diaphram and internal silicon oil. Thus WD19 sensors can be used to measure all pressure media compatible with 316L stainless steel.
The series sensor realizes pressure and temperature calibration and compensation via a specially customized integrated circuit. It outputs 10%-90% digital signal as well as digital output of temperature signal.

>> Main Features

1. High stability and high accuracy of 0.2%FS, 0.5%FS
2. Low cost OEM
3. Suited for pressure range: -100KPa~60MPa
4. Wide temperature compensation range: total error <1%
5. Measurable of corrosive media ( media compatible with 316L)
6. Standard mounting size- diameter 19mm
7. Various outputs: 4~20mA, SPI, I2C, 0.5-4.5V, 0-5V, 1-5V, 0-10V and customization

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPaSilicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPaSilicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPaSilicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPaSilicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Technical Parameters

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Application:

1. Pressure measurement of gas, vapor or liquid in various areas;
2. Liquid level, volume or mass measurement;
3. Integrated in a variety of user-defined solutions.

>> Dimensions

Remark:Ribbon Cable or Connect Pins are optional for all models
Ribbon Cable

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Connect Pin
Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Hot Product

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Company Information

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Exhibition

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

Certification

Silicone Water Miniature Pressure Sensors 3 Times Overload 0-60MPa

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
