Application:

1. Pressure measurement of gas, vapor or liquid in various areas;
2. Liquid level, volume or mass measurement;
3. Integrated in a variety of user-defined solutions.

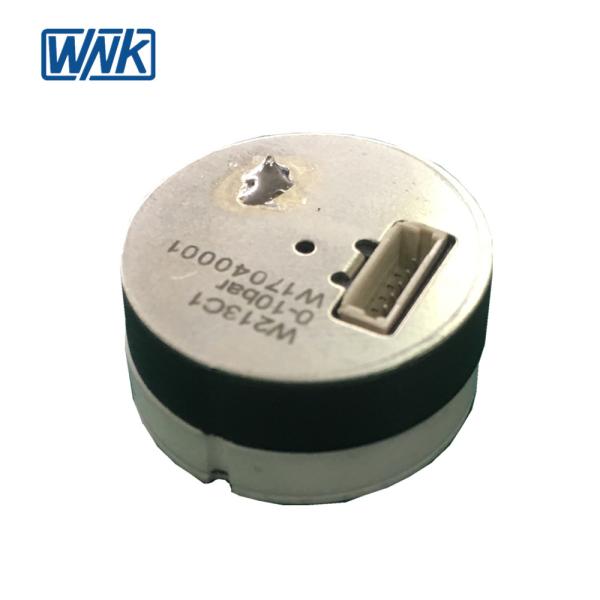

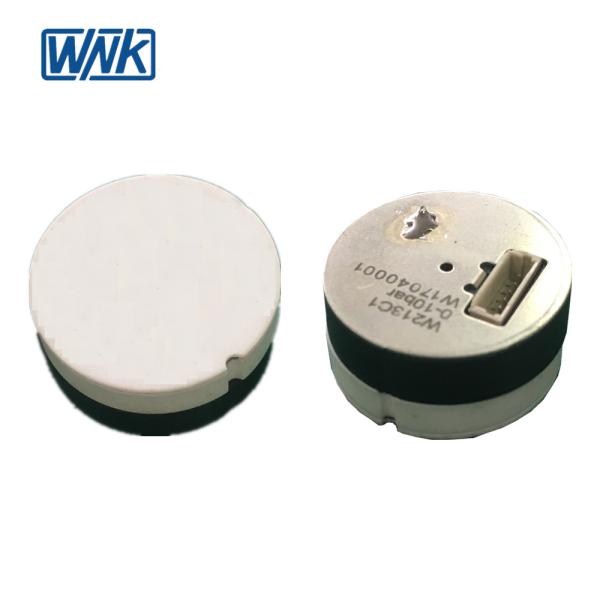

Dry ceramic capacitive pressure sensor has no liquid transfer. Process pressure acts directly on the front surface of the ceramic diaphragm. Capacitance change between the substrate electrode and the diaphragm electrode is proportional to the pressure value. The initial value of capacitance is fine adjusted by laser to be coincident as the proportion. When overloading, the film clings to the ceramic substrate without damage. When pressure resumes normal, its performance is not affected. W21 dry ceramic capacitive pressure sensor completely solved poor overload in low range shortcomings of diffused silicon sensor, and has been new generation products if diffused silicon sensor. The sensor has excellent temperature and time stability, and can contact with most media directly.

As no liquid transmission and no liquid filling in ceramic capacitive sensor, there will be no production process pollution. So it can be widely applied in food, medicine, refrigeration, automotive and etc. In addition to dry ceramic capacitive diaphragm, installation direction will not have any influence. Pressure transmitter with it as sensitive component can be widely used various pressure measurement situations.

Capacitive pressure sensor has excellent temperature stability; working with ASIC dedicated signal conditioning circuit, it can be temperature compensased in -40 ~ 125 ℃. The dual capacitance structure designed internally with main capacitor (Co) and reference capacitor (Cref) can offset most temperature and non-linearity errors.

Q: Are you trading company or manufacturer ?

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
