Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK80MA
Packaging Details :
Each water pressure transmitter in one inner paper box with foam protection
Supply Ability :
5000 Piece/Pieces per Month Air Pressure Sensor/ Air Conditioning Pressure Sensor
MOQ :
10 Pieces
Price :
$12.00 - $19.00/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Delivery Time :
5-8 work days
Warranty :
1 year
Customized support :
OEM, ODM
Measured media :
Liquid, gas and steam
Power supply :
3.3V, 12-30V,5V and so on
Output Singal :
0.5-4.5V, 0-5V, 4-20mA, i2c, customization
Housing Material :
304SS
Operating temperature: :
-20~85 ℃
IP garde :
IP65/IP67
Pressure range :
0-6Mpa
Certificate :
CE
OEM service :
OEM, ODM, customization available
Port :
Shanghai, Ningbo, Shenzhen
Description

High Performance ASIC Circuit Air Conditioning Pressure Sensor For Air Water Liquid

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media Liquid, gas and steam
Pressure range 0-6MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, absolute pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65

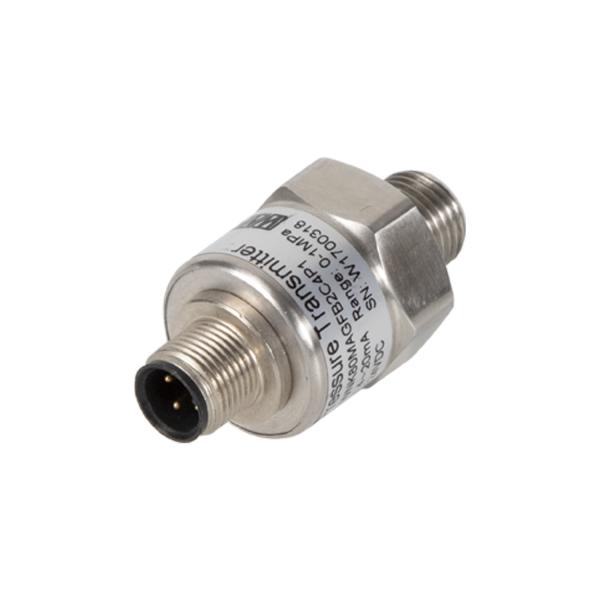

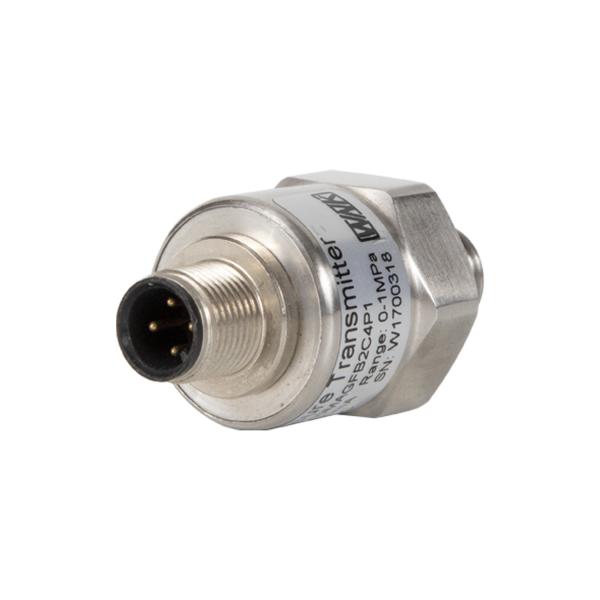

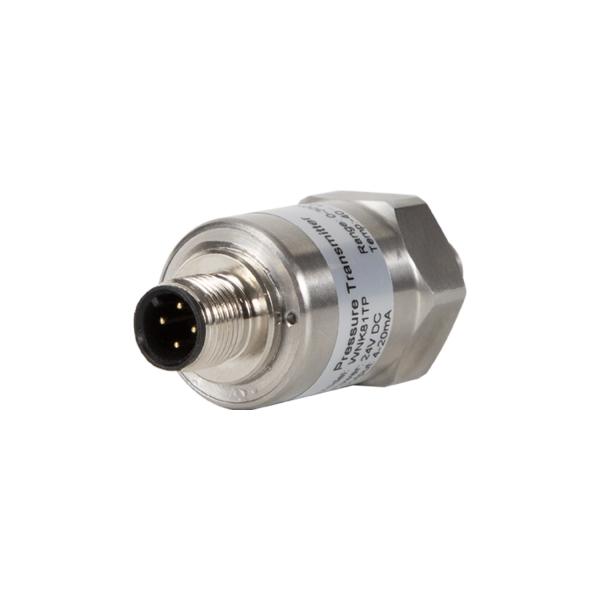

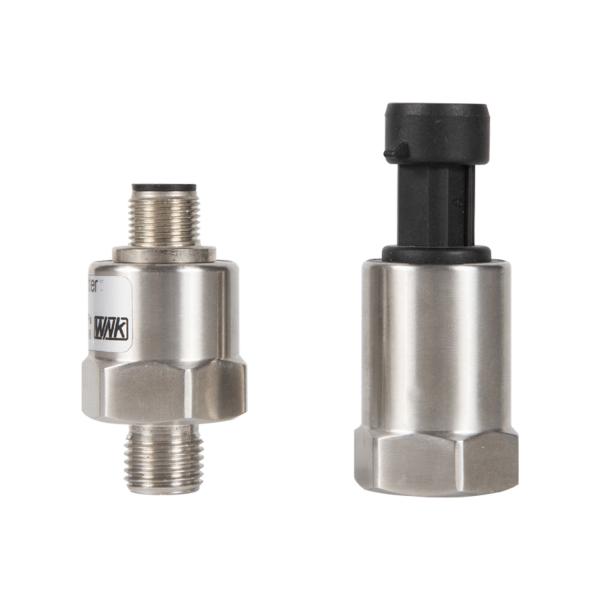

Product Show

ASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE Certificate

ASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE Certificate

ASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE Certificate

ASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE Certificate

ASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE Certificate

Applications

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

Company Information

ASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE CertificateASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE CertificateASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE CertificateASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE CertificateASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE CertificateASIC Circuit HVAC Pressure Sensor , Air Conditioning Pressure Transducer CE Certificate

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
