Specifications
Place of Origin :
Anhui, China
Brand Name :
WNK
Model Number :
WNK80ma
Packaging Details :
Each piece into individual carton with foam protection
Or as per client's request
Supply Ability :
30000 Piece/Pieces per Month water pump pressure sensor
Price :
$12.00 - $19.00/Pieces
Warranty :
1 YEAR
Customized support :
OEM, ODM
Accuracy :
0.2%, 0.5% , 1.0% FS
Output signal :
4- 20mA, 0.5-4.5V, 0-5V, 1-5V, i2c, spi, other
Operating temperature :
-40~85 ℃
Pressure range :
-100Kpa ~ 60MPa
Power supply :
24VDC 12VDC 5VDC 8-30VDC
Material :
304 SS, 316L
Media :
Water, Liquid, Gas, Steam, Oil, Lubricant
IP rating :
IP65, IP67
Type :
Gauge, Absolute, Seal, Vacuum
Product name :
water pump pressure sensor water pump pressure transducer
Port :
Shanghai/Ningbo/Shenzhen/Guangzhou
Description

Low Cost High Overload Water Pump Pressure Sensor/Pressure Transducer

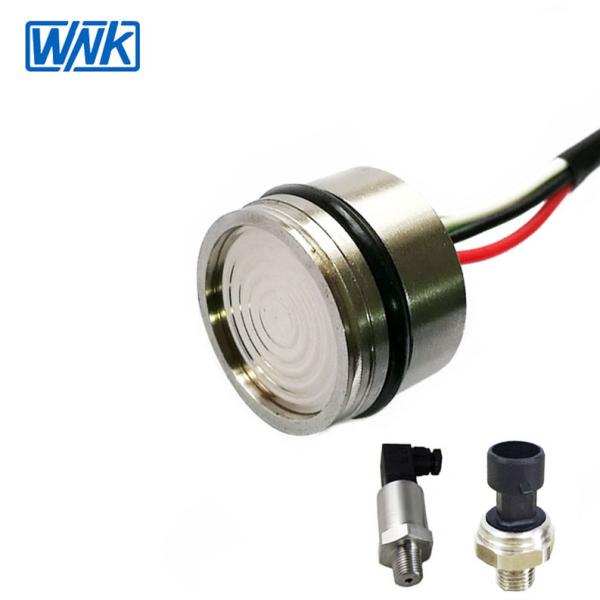

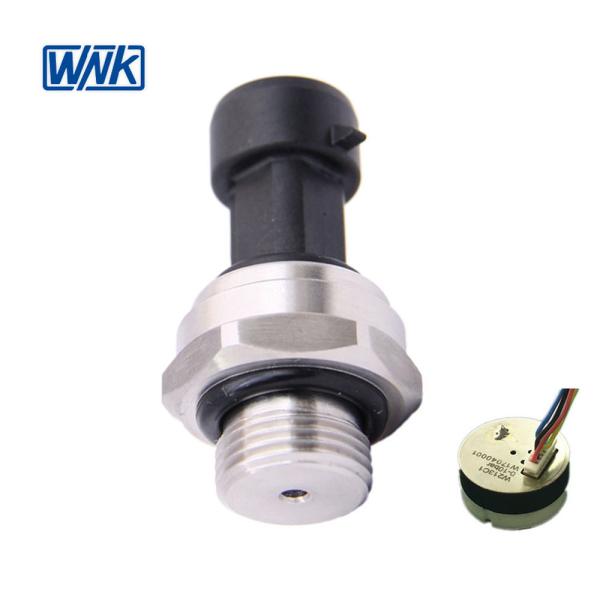

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

Specifications

Pressure Type Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range -100Kpa - 60Mpa
Accuracy 0.2%, 0.5%, 1.0% FS
Power Supply 5VDC, 12-32VDC
Measuring Media Gas, Steam, Liquid, Oil
Output
Analog 4-20mA, 0.5-4.5V, Other
Digital I2C, SPI
Operation Condition and Temperature
Compensation Temperature -40...75℃
Medium Temperature -45 ... 85℃
Storage Temperature -45 ... 85℃
Material and Protection
Ingress Protection IP65, IP67
Housing Material 304SS, 316L

Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems

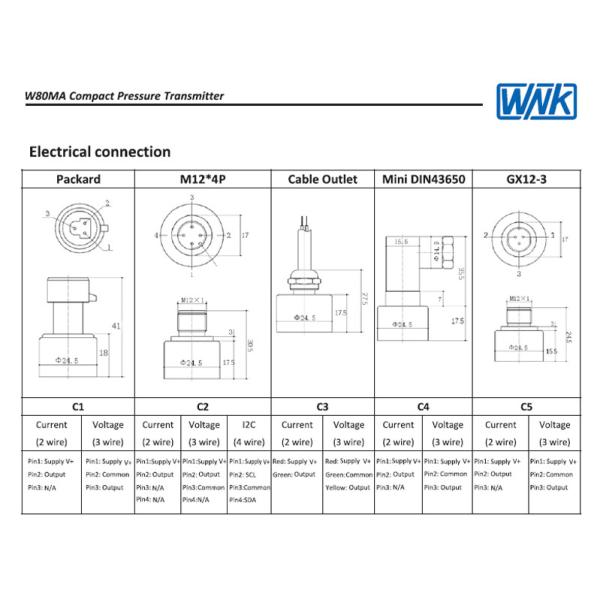

Electrical Connections

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

Pressure Port

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

Hot Product

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

Company Information

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

Exhibition

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

Certification

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
