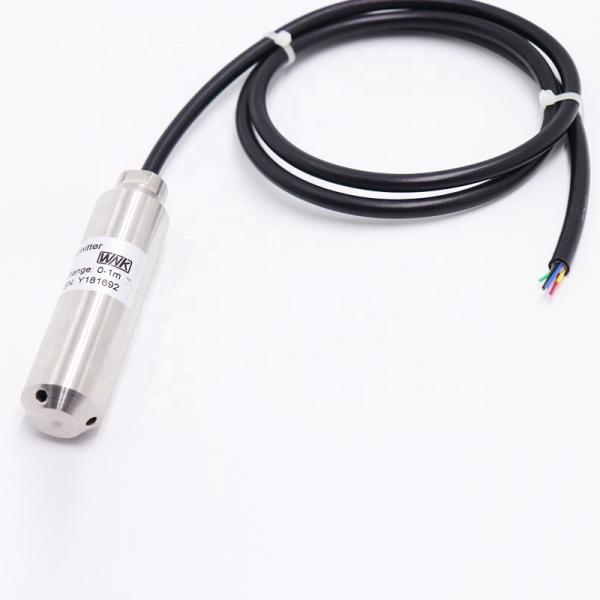

4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement
4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement
4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement
4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement
Specifications
Brand Name :
WNK
Model Number :
WNK 8010
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$35.00 - $50.00/Pieces
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
3000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
cartons
Warranty :
1 year
Customized support :
OEM, ODM
Output signal :
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Accuracy :
0.2%FS, 0.5%FS
Pressure type :
Gauge
Power supply :
12~36VDC
Housing Material :
304SS, 316L
Measuring medium :
Rainwater, Drinking water,Wastewater, Sewage, Oil
Stability :
0.2%FS/year
Protection class :
IP68
Overload :
1.5 times
Working temperature :
-40~85 ℃
Port :
Shanghai
Description

4-20ma 0.5-4.5V Submersible Level Transmitter Sensor Price For Water Tank Well Measurement

WNK Submersible Level Transmitter Sensor Price

Specification

Our WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element, With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or bsolute pressure of measurement medium to standard voltage or current signal. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement

4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement

Company Information


4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement

Certifications

4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement

Packaging & Shipping

4-20ma 0.5-4.5V Submersible Level Transmitter For Water Tank Well Measurement

FAQ

Q: Are you manufacturer or trading company?

A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.

Q: What’s your quality control system?

A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.

Q: Is there MOQ with your product?

A: We have no MOQ limits, 1pc for testing purpose is acceptable.

Q: Can we print our logo on the products? Do you provide customized products?

A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.

Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.

Q: What is lead time of your product?

A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
