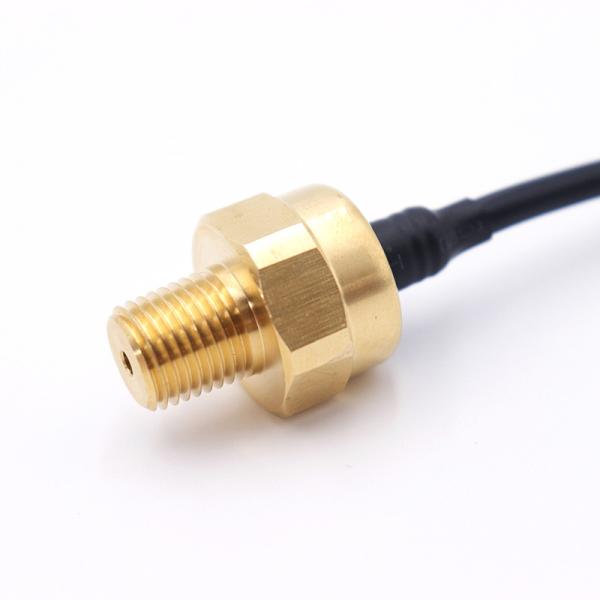

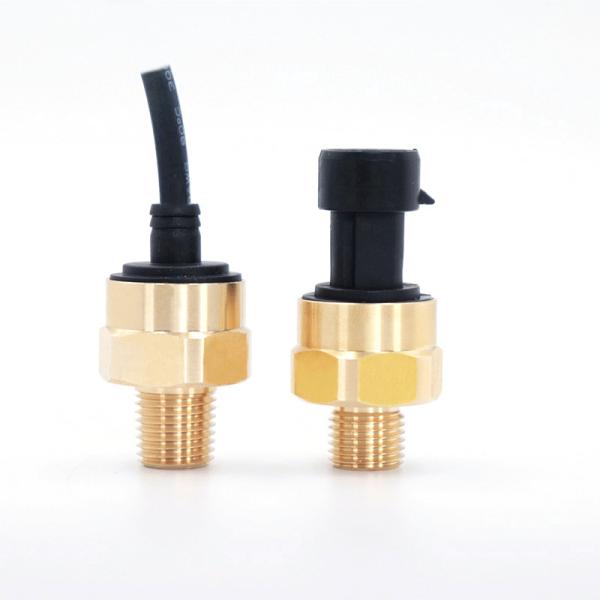

Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Specifications
Brand Name :
WNK
Model Number :
WNK83mA
Place of Origin :
Anhui, China
MOQ :
1pcs
Price :
$6.50/Sets
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000/ Piece/ Month
Delivery Time :
5-8 work days
Packaging Details :
standard export carton box for WNK83MA pressure sensor or as per your
Warranty :
1 YEAR
Customized support :
OEM, ODM
Accuracy :
±1%F.S.
Measured media :
Liquid, gas
Output :
0.5-4.5VDC
Input :
4.75-5.2VDC
Storage temperature :
-40~110°C
Work temperature :
-20~70°C
Electrical connection :
Packard or Cable outlet
Mechanical connection :
1/4NPT or G1/4
IP Rate :
IP65
Housing material :
Brass
Description

0.5-4.5V Output Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet/Parkard Connector
Mechanical connection G1/4, NPT 1/4 Male
Housing material Brass

Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output

Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
Brass Compact Ceramic Capacitive Pressure Sensor For Air Gas 0.5 - 4.5V Output
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
