Double glass Sound Proof Aluminium Clad Timber Windows 90mm Thickness For villas

RIJIABOLAI aluminum-clad wooden doors and windows
Our company produces aluminum-clad wooden doors and windows have the following major advantages:
1. Wood structure production process: ①, adopts the most advanced European variable cross-section process production,
retaining the mechanics of the wood itself Performance, so that the overall window does not tremble and shake,
and is very stable. The frame is 20mm wider than ordinary wooden windows and 20mm wider than ordinary
wooden windows.

②Bedding assembly method: adopts German advanced reverse lap joint technology.
Effectively curb the gap caused by the "wet expansion and shrinkage" of wood.

③ Refined production,to ensure that the error of each meter of the profile is controlled within 0.1 mm,

and fully ensure the flatness of the viewing surface.

2. Outer aluminum production process:
Outer aluminum adopts unique angle screw connection or inlaid connection and welding (full welding) process.

Specifications:

Embellished with exquisite shapes, crisp lines, rich colors and advanced configuration and performance, German style wood with aluminum cladding windows and doors will bring you a great enjoyment.
The thickness of window is 90mm.
Major Components:

The windows and doors are made of integrated larch wood, high quality 6063-T5 aluminum materials, high quality German hardware and 22-37mm double/triple glazed glass. The windows and doors are manufactured following German DIN standards.

​

Window structure:

Performances:

Sound insulation,Energy saving, environment protective,Easy to install,Space saving,push and pull smothly.

Technical parameters:

1) Product type:wood-aluminum composite series

2) Frame specification:90mm

3) Opening style:casement door,window,folding door

4) Profile thickness:68mm thick wood,15mm thick aluminum cladding

5) Hardware: European standard C-Notch ( standard:Siegenia/ROTO System Hardware,Hoppe handle

6) Glass specification:( standard:5mm+12A+5mm/5mm+12A+5+12A+5mm)

7) Flyscreen type: With Integral matched mosquito screen door,screen window

8) Max size range:W 900mm x H3000mm/sash

Applicable place:Villas,apartments,mansions,residential buildings,etc

Packaging&loading:

Sales network:Worldwide

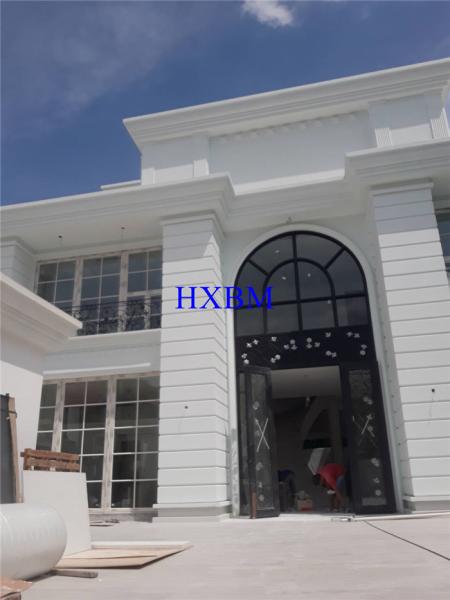

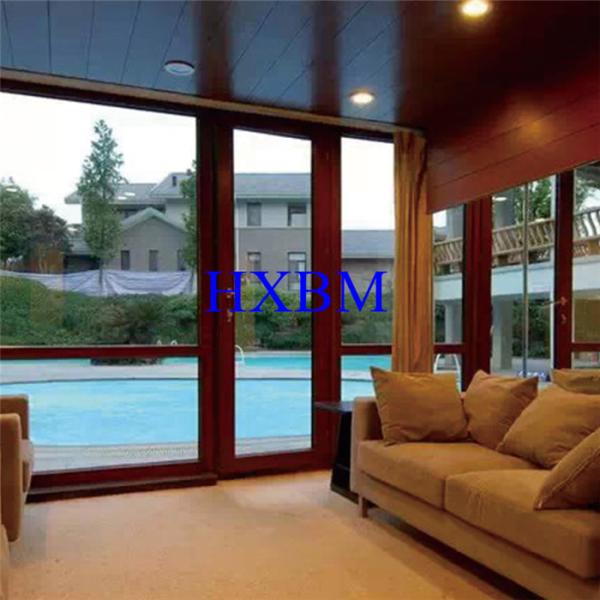

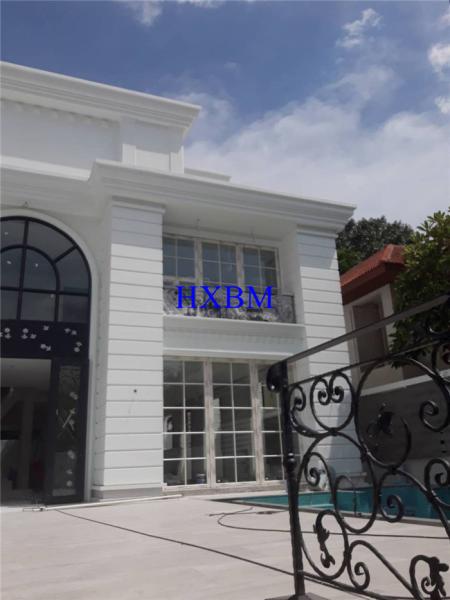

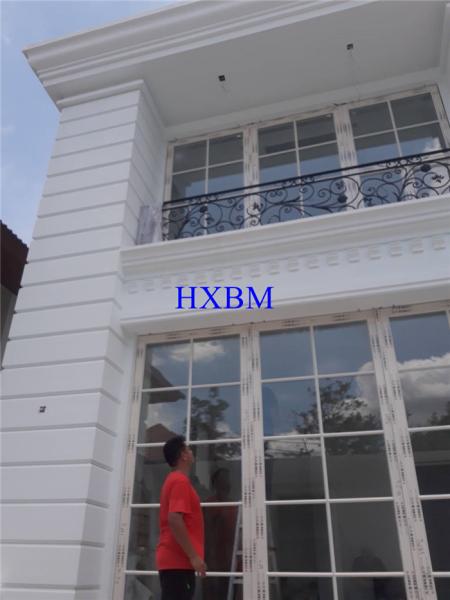

Projects:

Factory view:

FAQ:

Q: What is your manufacture time?

38-45 days depends upon deposit received and shop drawing siganture, as extrusion profile need 25 days to reach us.

Q: What is your MOQ order?

100 sq.meters.

Q: Do you accept customized design and size?

Yes, sure. The design and size all are according to customer customized choice.

Q: What's the favorite payment terms?
Trade Assurence, TT, LC, paypal, west union one touch are available

Q: What is your color available?

Color available from the colorbond or RAL or interpon or real color sample

Q:What's your generally packaging?
with carton and protective film first and then put all windows on the iron steel pallets and the fix with airbag and keep it not moving in the container.

If you have any inquiry,pls feel free to contact us!
