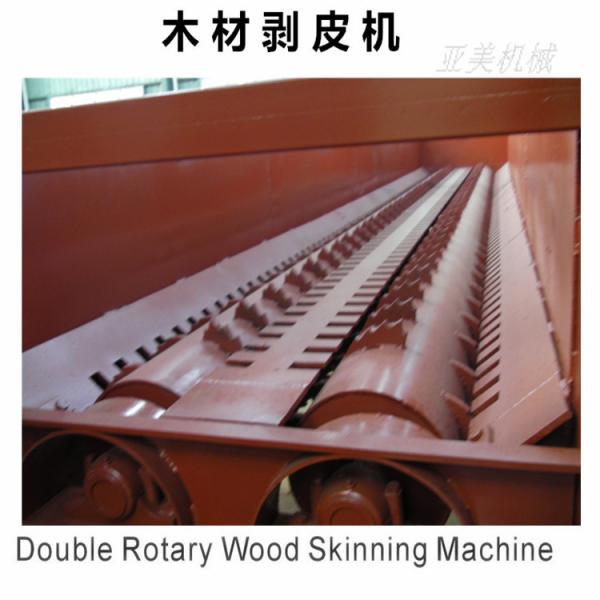

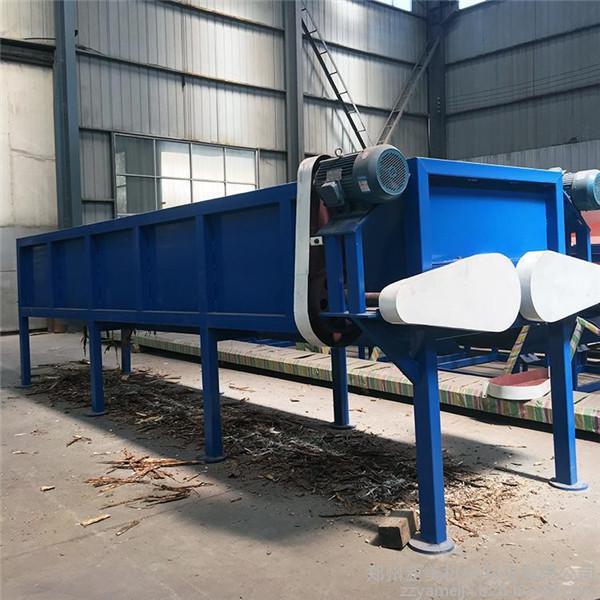

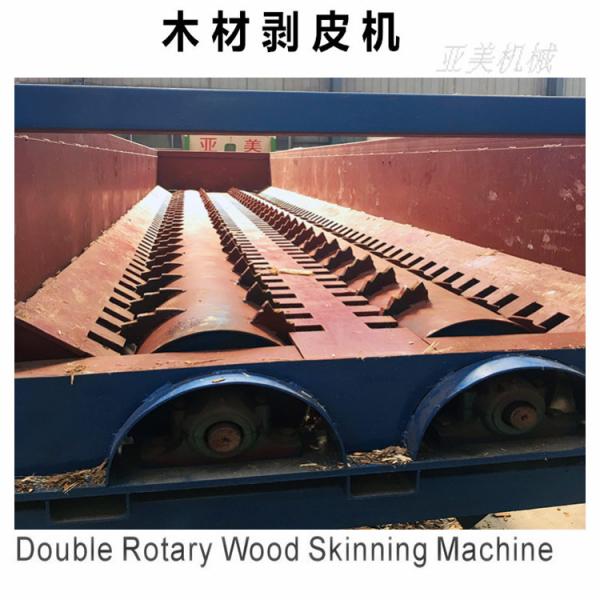

Made in China Peeling Efficiency 95% groove type two-roll peeling machine

wood peeling machine also called groove type double roll wood peeling machine is our innovational developmentproduct,with highefficient,high quality and high speed.it can make the wood run in cycle in the bunker frid and lead the wood skin separated from the wood quickly during continuously rub,strick and press wood debarking machine

This series of wood stripping machine widely used in the fiber board factory in, paper mill, veneer rotary cutting factory, wood factory, paper, wood OARS factory storage plant, such as forest.Wide application on eucalyptus, poplar and popular .wood effect is really good, is applied to automatic production line operation, the equipment.

Main USES:

This series of peeling machines are widely used in medium fiber board factory, paper mill, veneer rotary cutting factory, wood chip factory, pulp mill, wood storage factory, forest farm, etc.Wide range of application, eucalyptus, poplar and other popular tree species effect is very good, is suitable for assembly line operations, automatic production of supporting equipment.Among them.

Technical data:

Features of peeling machine:

1. Four-edged tool is adopted, which is convenient to use and low in cost.

2. The regulating pressure of cutter plate is controlled by hydraulic pressure, with advanced structure and reliable performance.

3. The feeding mechanism adopts continuously variable speed, which has a good peeling effect on such difficult tree species as frozen wood, bending wood, eucalyptus, oak and elm.

4, high peeling clarity, high productivity, small wood damage.

Working principle of peeling machine:

1. The peeling machine adopts the line operation of open silo, which can feed from one end and discharge from the other end, which overcomes the shortcomings of the existing feeding, discharging and segmenting working mode of the roller type peeling machine with high working efficiency.

2. Due to the impact of teeth on wood segments, wood segments not only circulate in the shell, but also turn around around themselves. Therefore, the peeling machine has a high efficiency, and eucalyptus, poplar and other trees difficult to peel have a better peeling effect, with a clarity of more than 95%.

Scope of application:

Suitable for peeling newly cut coniferous wood and part of broadleaf wood, also can finish peeling of part of frozen wood and dry wood.
