Ring Die Biomass Fuel Granulator Wood Sawdust Pellet Machine Sawdust Straw Fuel Wood Pellet Machine

Introduction of Biomass Pellet Machine

Wood pellet machine is the new design wood pellet maker to make biomass fuel pellets. Biomass pellet machine is suitable for all kinds of hard and soft wood, rice husk, peanut shells, agricultural straw etc.

1. Raw materials diameter requirement : 3-5mm(If large ,crusher machine should be used)
2. Raw materials moisture:15-25%.(If beyond the scope,dryer machine should be used )

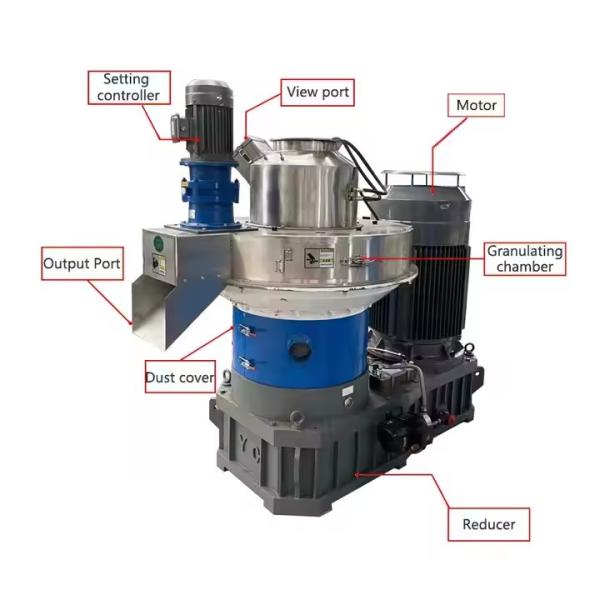

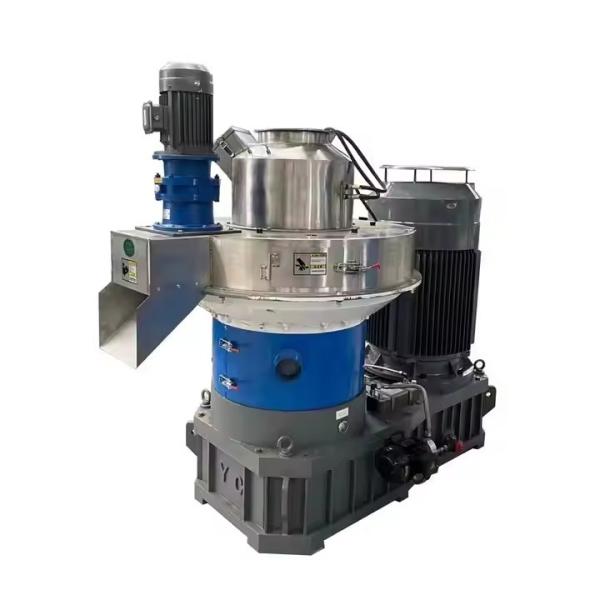

Picture of Biomass Pellet Machine

Working Principle of Biomass Pellet Machine

First, the machine adopts the motor direct connection. The motor is connected to the gear shaft via a gear coupling. Through the gear 90 ° change, horizontal motor drive vertical hollow spindle. The spindle drives the press roll to crush the inner surface of the mold to complete the pressing process. When it’s working, the material falls vertically on the surface of the shelf plate by the drawing inlet. Through the rotation of the shelf plate to make the material evenly in the mold cavity surface.(The contact surface of the press roller with the mold) The powder material passes through the hole of the mold under the rolling of the press roll.(Evenly distributed in the mold on the surface of the hole) This process is subject to high pressure, high temperature,physical changes or appropriate chemical changes.(According to material) It promotes the powder material to form a continuous cylindrical solid body. The cylindrical solid body is continuously extended until it is cut by the cutter around the uniform mold to form a certain size of the particles. The particles scattered around the mold are concentrated from the teeth to the discharge port. The particles are automatically dropped under the action of gravity, and the granulation process is completed.

Note: All port. parts of the machine are installed on the machine surface machining, assembly accuracy, excellent machine performance.

Advantages of Biomass Pellet Machine

Full automatic intelligent feeding system, even no worker near the pellet machine, the feeding speed could be adjusted according to the electricity current adjusted, lower failure rate and electricity cost, increase the capacity, higher work efficiency, save manual cost. Main shaft makes use of the gear box gear oil lubrication, lower the main shaft temperature, improve the main shaft span life. Gear box adopts cooling system, avoid higher oil temperature, service life 5 years guarantee, highly lower the production cost.

After Sales Service

1. One year for machinery warranty.

2. We have the cheap spare parts supply.

3. We can sent engineer to install and maintain on site.

FAQ

1)Are you a factory or trade company?

We have our own factory as an international supplier, a professional manufacturer and a general international trader.

2) How can I trust your company?

1.Henan Wheat Import And Export Company Limited, established in 2005, located in Zhengzhou City--Capital of Henan Province, the center of China mainland.

2.We have special QC department, testing every single equipment, from voltage to appearance, our workers will inspect strictly in order to supply the best and most stable machine for our customers.

3.Our equipment are strictly designed and produced according to CE standard, we care for every details and the quality.

3) How long is your delivery time?

Generally it is 30 days after received your deposit.

4) Is your price competitive?

We can provide the highest quality machines at the best price.
