lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill
Specifications
Brand Name :
Easwon
Model Number :
MJ1200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
15 days
Packaging Details :
wooden case
Model :
MJ1200
Max. sawing width :
1200mm
Max. sawing height :
1100mm
Max. sawing thickness :
350mm
Power :
30kw
Sawing wood length :
10m
Condition :
New
Warranty :
1 year
Description

MJ1200 heavy duty horizontal band sawmill

Our large horizontal band sawmill is controlled cutting thickness by Taiwan FATEK PLC touch screen, and variable frequency forward/backward. Horizontal band sawmill can saw max. log's diameter of 2500mm, especially for hardwood like rosewood, santos rosewood, wenge etc. At present, our horizontal band sawmill is mainly exporting to Congo, Cabon, Angola, Fiji, Suriname etc. It is widely used in lumber factory, furniture factory, forestry farm etc. Horizontal band sawmill can be used for cutting round logs, square shape and other raw materials as well as various shape wood.

Horizontal band sawmill specification:

Model Unit MJ1200
Max. sawing width mm 1200
Max. sawing height mm 1100
Saw wheel diameter mm 960
Max. sawing thickness mm 350
Sawing wood length mm 10000
Saw blade size mm 1.25x150x7700
Motor power kw 30
Weight kg 3800

Optional 1: the power can be changed to 60HP or 100HP 4-cylinder diesel engine

Optional 2: Rail frame can be added to easy move in different places.

Horizontal band sawmill show:

lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill


Horizontal band sawmill features:

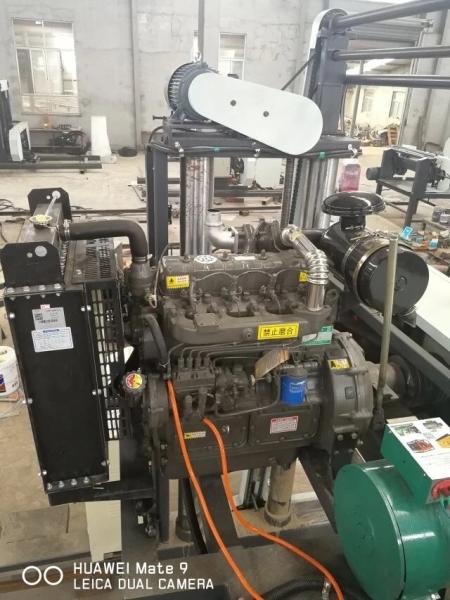

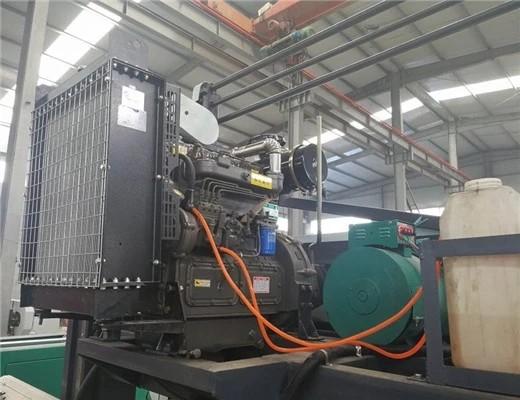

lumber/log mill 60hp or 100hp diesel horizontal band sawmill The power can be also 60HP or 100HP 4-cylinder diesel engine. lumber/log mill 60hp or 100hp diesel horizontal band sawmill High quality SKF Bearings from Sweden
lumber/log mill 60hp or 100hp diesel horizontal band sawmill

4 stand columns and precision

screw to make sure the saw

wheel's up and down is stable

and accurate

 lumber/log mill 60hp or 100hp diesel horizontal band sawmill

Turning, cylindrical grinding, chroming makes sure the stand columns is smooth and precision.

Wear resistance copper sliding bush

lumber/log mill 60hp or 100hp diesel horizontal band sawmill The band sawmill is using Taiwan FATEK PLC central touch screen panel, circuitry concentrating on the control panel to control the sawing thickness digitally, it will be more accurate. lumber/log mill 60hp or 100hp diesel horizontal band sawmill Central saw wheel design makes the saw wheel running stable, extend the working life, and reduce the probability of band saw blade break down.
lumber/log mill 60hp or 100hp diesel horizontal band sawmill Counterweight steel makes the blade more flexible and not easy to break. lumber/log mill 60hp or 100hp diesel horizontal band sawmill Variable frequency speed adjustable forward/backword, the forward speed is 1-20m/min, which is high efficient.


Finished product:

lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill
lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill

Packing and shipping

Generally, the horizontal band sawmill is packed by plastic film, and loaded into 20ft container.

lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill

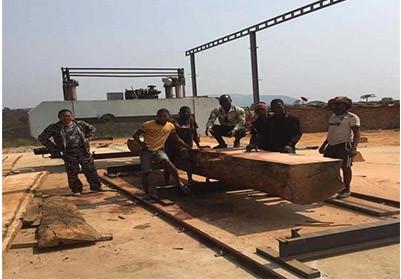

Horizontal Band sawmill customer show:

lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill
Angola Ghana Congo
lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill lumber/log mill 60hp or 100hp diesel horizontal band sawmill
Canada Holland Angola

After sales services:

1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours
