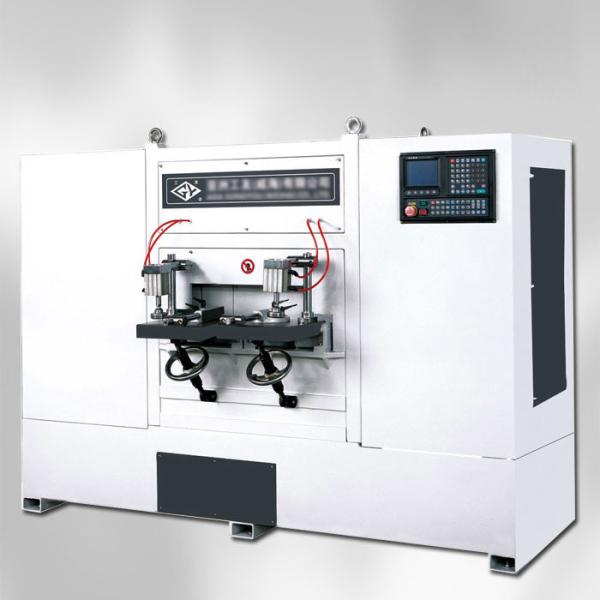

MXK3810 CNC Tenon Milling Machine
MXK3810 CNC Tenon Milling Machine
Specifications
Brand Name :
Easwon
Model Number :
MXK3810
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
500 sets per month
Delivery Time :
15 days
Packaging Details :
wooden case
Model :
MXK3810
Max. tenoning width :
100mm
Max. tenoning thickness :
25mm
Max. tenoning depth :
40mm
Main motor power :
3kw
Condition :
New
Warranty :
1 year
Description

MXK3810 CNC Tenon Milling Machine

MXK3810 CNC Tenon Milling Machine

Technical specification Uint MXK3810
Max. tenoning width mm 100
Max. tenoning thickness mm 25
Max. tenoning depth mm 40
Cutter internal diameter mm Ø30
Cutter diameter mm Ø86(Ø114)
Main spindle speed r/min 7000
Main motor power kw 3
Table forward tilt angle ° 0-30°(30°,45°)
Max. workpiece size mm 100x100(W x H)
Horizontal motor power kw 1
Vertical motor power w 750
Max. X working speed m/min 5
Max. X moving speed m/min 10
Max. Y working speed m/min 5
Max. Y moving speed m/min 10
Air source pressure MPa 0.4-0.6
Overall dimension mm 2250x1150x682
Net weight kg 1180

Contact details:

Linyi Ruixiang Import & Export Co.,Limited

Tony Zhuang

Sales manager

Mobile: +86-15153984859

E-mail: easwonintlco@gmail.com

Skype: seasilkroad
