Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Specifications
Model Number :
MJ6116TY
Place of Origin :
Qingdao, China
Brand Name :
OSETMAC
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Seaworthy wooden case
Delivery Time :
15 days
Payment Terms :
T/T
Supply Ability :
3000 sets per year
Dimension(l*w*h) :
1800*1050*900
Type :
Sliding table saw
Application :
Panels Wood Cutting Machine
Tilting saw blade :
90°/0~45°
Gross cut capacity :
1600mm
Product name :
Sliding Woodworking Table Saw， Wood Panel Saw
Description

Woodworking Machine Sliding Panel Saw MJ6116TY for Plywood and Panel Cutting

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry

Main Features


Manual lift and tilt function,angle dispaly clearly.
Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass plate and solid wood and other wood structure similar to the hardness of the plate.
With whole spray durable wear-resistant treatment, the machine body will not paint off and the appearance is perfect.

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry

Description:

  1. The lifting of the main saw is manual control with linear guide lifting.
  2. The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.
  3. Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
  4. The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
  5. Covered by a 1-year parts warranty

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry

Applications:

This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry

Specifications:

Sliding Table Dimension 3200*375mm
Cast Iron Table Dimension 980*560*70mm
Length Extension Table 760*630*50mm
Width Cutting Extension Table 575*550*50mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 300mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 55mm50/70mm(φ300/350)
Main Motor Power 4KW(5.5KW)
Main Blade Speed 4000/6000RPM
Scoring Saw Blade Diameter 120mm
Scoring Saw Bore Diameter 20mm
Scoring Saw Motor Power 0.75KW(1.1KW)
Scoring Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3200mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Manual
Scoring Saw Height Adjustment Manual

Wood Packing Dimensions

Main Crate and Sliding table

2100*1100*1100mm

3400*420*220mm
Installation Dimensions 3250*3150*900mm
Net Weight 680KG
Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry

Competitive Advantage:

  1. We can change the outlook of the machine according to your requirement.
  2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.

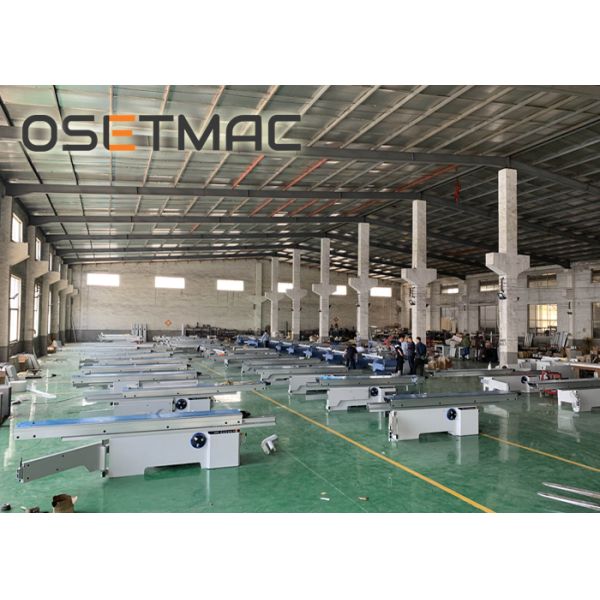

  3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking IndustryPlywood Cutting Sliding Panel Saw Machine Use In Woodworking IndustryPlywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
