Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting
Specifications
Brand Name :
OSETMAC
Model Number :
MJ6132BD
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 2400-5000/SET
Payment Terms :
T/T, L/C
Supply Ability :
3000set/year
Delivery Time :
5-15 days
Packaging Details :
wooden case
Tilting saw blade :
0-45°
Power(w) :
6.6KW
Condition :
NEW
Main saw blade diameter :
300mm/30mm
Scoring saw blade diameter :
120/20mm
Product name :
Sliding Woodworking Table Panel Saw Wood Circular Saw Cutting Machine,Sliding Table Saw Machine
Application :
woodworking,Panels Wood Cutting Machine,Wood Saw,furniture production,plywood machines
Gross cut capacity :
3200mm
Voltage :
220v/380v/415v/440v
Warranty :
12 Months
Weight :
900kg
After-sales service provided :
Online support,Video technical support
Description

OSETMAC Woodworking Industrial Sliding Panel Saws for Cutting

OSETMAC Panel Saws MJ6132BD Specifications

Sliding Table Dimension 3200*390mm
Cast Iron Table Dimension 910*620*80mm
length extension table 905*680*70mm
width cutting extension table 640*680*70mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 350mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 50/70mm(φ300/350)
Main Motor Power 5.5KW
Main Blade Speed 4000/6000RPM
Scorning Saw Blade Diameter 120mm
Scorning Saw Bore Diameter 20mm
Scorning Saw Motor Power 1.1KW
Scorning Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3100mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Electric
Scorning Saw Height Adjustment Manual
Dust Guard Outlet Diameter 80mm
Dust System Outlet Diameter 100mm
Dimension of Wood Packing Carton 2250*1200*1100mm(Main Crate )
3400*450*290mm(Sliding Table)
Dimension 3250*3450*900mm
G. W. 900KG

Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting

OSETMAC Panel Saws MJ6132BD Package

Industrial 300mm/30mm Woodworking Sliding Table Saw For Cutting

OSETMAC Panel Saws MJ6132BD Discriptions:

* This panel saw uses linear guideway to lift the saw blade.
* All bearings in this panel saw machine are all imported SKF brand.
* The table of this panel saw is made of fully-extruded, anodized aluminum.
* With cast-iron main table and broaden extension table.
* The main saw blade lifting is electric control in this model MJ6132BD panel saw.
* The hand wheel for main saw blade tilting is very light.
* In this panel saw, the fine adjustment range is between 0-10mm.
* Digital Readout is available according to your requirement.
* There are comb lock on the table.

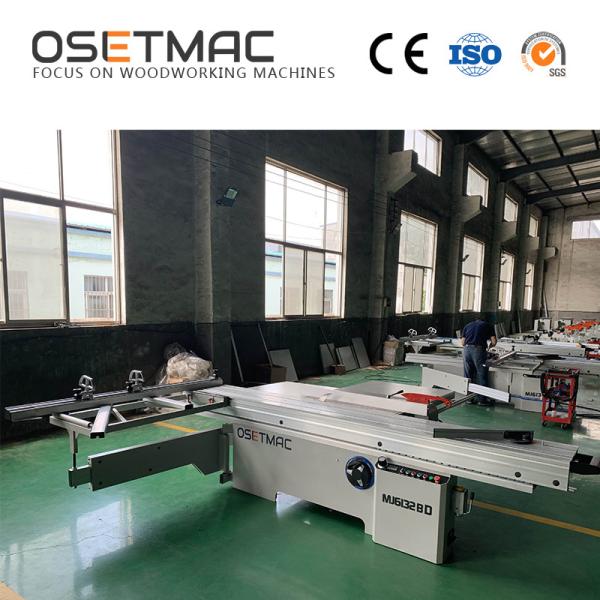

OSETMAC Woodworking Panel Saw Factory Show
