Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Specifications
Place of Origin :
Shandong, China
Brand Name :
OSET
Condition :
New
Machine Type :
Wood Sanding Machine
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty :
1 Year
Weight (KG) :
1100 KG
Power (kW) :
7.75
Key Selling Points :
Easy to Operate
Showroom Location :
None
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Building Material Shops, Machinery Repair Shops
Sander Type :
Electric Wood Sanders
Max Working Width :
1300mm
Max Working Thickness :
10-150mm
Min Working Length :
≥350mm
Roller Speed :
Inverter Control
Conveyor Speed :
5-20m/min
Packaging Details :
WOODEN CASE PACKING stretch film
Port :
Qingdao Port
Supply Ability :
10000 Set/Sets per Year
Price :
$5,790.00/sets 1-4 sets
Description
Products Description

China Automatic Wooden Frame Sanding Machine Wood Working Sanding Machines

Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Description： This machine is suitable for the sanding or grinding of doors, cabinet, plywood, MDF and other panel furniture and solid wood furniture. It is widely applied to the board with primer, PE, PU, UV coating etc. 1. RIKEN sandpaper from Japan 2. Inner Structure：Z2Y2H2 ( 2 units of small rollers, 2 units of disc brushes and 2 units of long brush rollers which can oscillate in different direction to make sure the perfect polishing effect.) 3. 9 disc brushes with quick-change connectors 4. The sandpaper grades are from #120-#600 5. The speed of rollers are adjustable so that the workers can adjust the speed according to different materials. 6. High precision and easy-to-use features makes your work more efficient. 7. This machine is time-saving, labor-saving, and manpower- saving. 8. Different Abrasive Materials for your choice 9.Support Customization Service

SPECIFICAITONS
Max Working Width
1300mm
Max Working Thickness
10-160mm
Min Working Length
≥350mm
Roller Speed
Inverter Control
Conveyor Speed
5-20m/min
Long Roller Motor
2.2KW×2
Conveyor Motor
1.5KW
Lifting Motor
0.55KW
Disc Motor
1.5KW
Disc Swing Motor
0.55KW
Small Roller Motor
1.5KW*2
Small Roller Swing Motor
0.55KW
Total Power
12.05KW
N. W.
1900KG
Packing Dimension
3180*2130*2150mm
Using Dimension
3650*2050*2160mm
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min

Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min

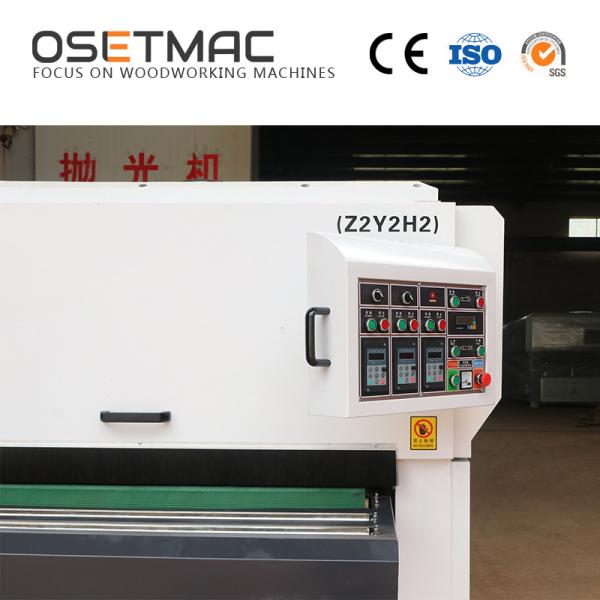

Rotatory Control Board

This brush sanding machine is very easy to control. Four units rollers' speed are controlled by two inverters and the speed of the rollers are easy to control by the switch on the control board. Workers can adjust the speed according to different materials.
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min

Disc Brushes

Two units of disc brushes (total 9 disc brushes) rotate in opposite directions, and the speed of the roller is adjustable by frequency control. With the board own movement and the disc brushes rotating, the machine can realize the sanding of uneven surface and corner from different angles.
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Length ways Rollers
Two units of long brush rollers are counter-rotating and can be lifted individually, which guarantee the sanding effect of all-round uneven surface and R-angle.
Product packaging
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Certifications
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Company Profile
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
OSETMAC
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
Woodworking Sanding Machine Max Working Thickness 10-150mm Conveyor Speed 5-20m/min
FAQ
1. Who Are We?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North
America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What Can You Buy From Us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES

4. Why Should You Buy From Us Not From Other Suppliers?
Professional technical team and perfect careful after-sale service

5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
