Specifications
Brand Name :
ZHONGCHI MACHINERY
Model Number :
MJ3928X400
Certification :
CE,ISO9001,SSL
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T etc.
Supply Ability :
2000pieces/Year
Delivery Time :
5-7 day
Packaging Details :
Stretch Film or Wooden Packaging
Max.working width: :
400mm
Saw wheel diameter: :
711mm
Feeding speed: :
0-18m/min
Saw wheel motor: :
18.5Kw
Distance of blade to worktable: :
3-200mm
Saw blade size: :
4527*27*0.7mm
Saw the road: :
1.2-2.2mm
Overall size: :
3000*1950*1850mm
Weight: :
1900kgs
Description

Woodworking band saw machine horizontal band saw

Woodworking band saw machine

Horizontal band saw

400mm Woodworking Band Saw Machine Horizontal Bandsaw 0-18m/Min



Parameter:

Model 300mm 400mm 650mm
Max assembling size(mm) 300*300 400*300 650*300
The distance of blade to
the workbench (mm)		 3-200 3-200 3-200
Conveyor width(mm) 285 385 650
Saw wheel dia(mm) 711 711 711
Feed speed(m/min) 0-18 0-18 0-18
Saw wheel lifting motor(kw) 0.37 0.37 0.37
Saw wheel motor(kw) 15 18.5 22
The hydraulic pressure(kg/cm³) 55 55 55
Dust tube diameter(mm) 102*2 102*2 102*2
Saw blade size (L*W*T)mm

4572*27*0.7

(1’saw wheel)
4572*27*0.9

(1.3’saw wheel)

4572*27*0.7

(1’saw wheel)
4572*27*0.9

(1.3’saw wheel)

4572*27*0.7

(1’saw wheel)
4572*27*0.9

(1.3’saw wheel)
Saw the road(mm) 1.2-2.2 1.2-2.2 1.2-2.2
dimensions(mm) 2700*2100*1900 2700*2300*1900 2700*2300*1900
Net weight(kg) 1800 2000 2300

Product Description:

Our Horizontal Band Saw Machine is a multi blade saw that is reliable and efficient. It has a hydraulic pressure of 55kg/cm, a saw wheel lifting motor of 0.18kw, and a feed speed of 0-18m/min. It also has a maximum assembling size of 400x300mm and a saw wheel motor of 18.5kw. It is a strong and robust machine that can handle heavy duty jobs with ease. The saw is designed for precise cuts and can be adjusted to accommodate different material thicknesses. It is easy to use and maintain, with a low noise level and minimal vibrations. This Horizontal Band Saw is an essential tool for any workshop or factory.

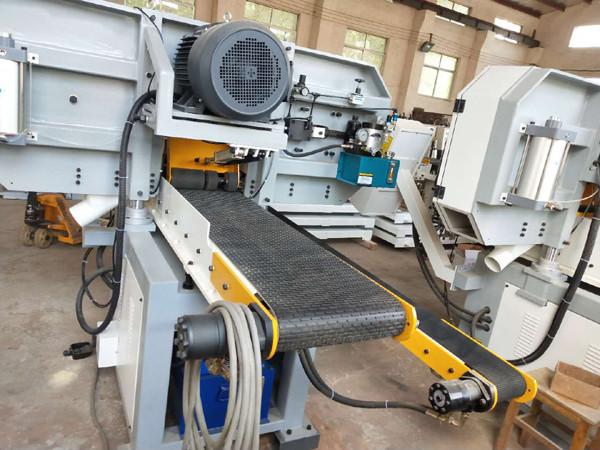

Detail Pictures
