Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Double Gluing PUR Hot Melt Coater Laminator 1600-2440mm 5-20m/Min
Specifications
Brand Name :
Sheng jin
Model Number :
RTM1300 Doubl Gluing
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD106000~114000/SET
Payment Terms :
T/T
Supply Ability :
2 SETS /Month
Delivery Time :
30-40 work days
Packaging Details :
2×40 GP
Usage :
Construction，Furniture,Hotel，hospital
Type :
PUR Hot Melt Glue
Other names :
Hot Melt Adhesive Sticking Machine
Keywords :
Honeycomb /PUR Hot Melt Laminate
Application :
Panel Honeycomb board Laminating
Weight :
About 14300 KG
Description

RTM1300 Double Gluing PUR Hot Melt Laminating Machine

Capability and use:

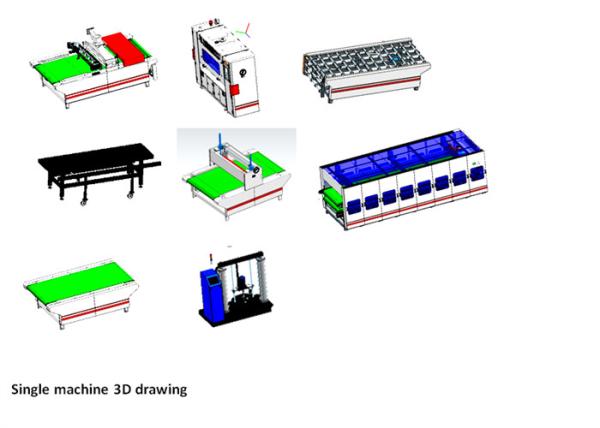

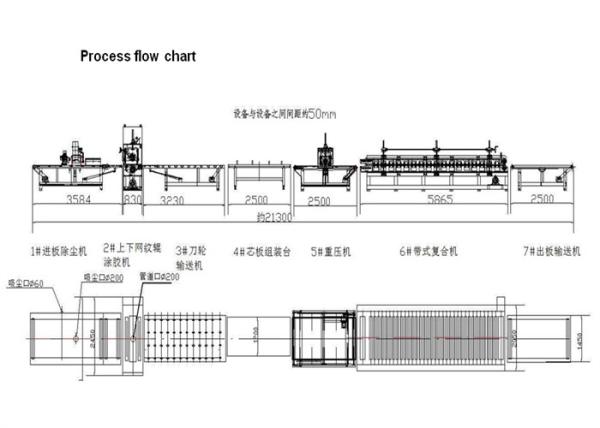

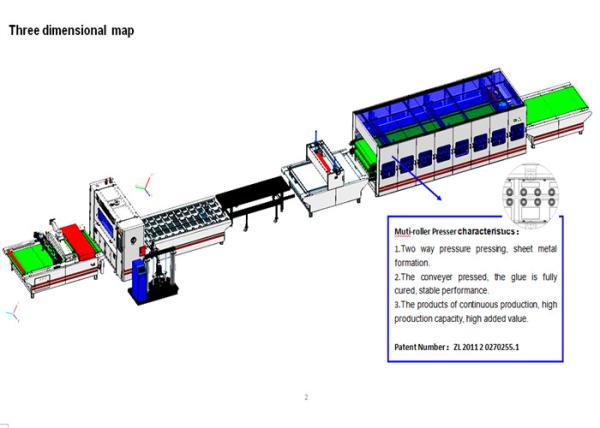

The machine is specially developed for customers,it’s a new special-purpose equipment.It consists of seven standalone unit and a PUR glue supply.The unit for the manufacturer required to laminate various substrate.Including wood design on face of three layer sandwich composite panels,and cellular core plate, other board etc.

Technical parameters:

1. Panel effective width:1000-1300mm

2. Panel effective length:1600-2440mm

3. Panel effective thickness:2-50mm

4. Effective thickness of composite panel:5-70mm

5. Operating height:800mm(Customizable)

6. Speed:5-20m/min

8. Total power:about 70kw

9. Control mode: the equipment is the whole line control
