Specifications
Brand Name :
Sheng jin
Model Number :
RTM1300A PUR Laminating Machine
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD55000~59900/SET
Payment Terms :
T/T
Supply Ability :
2 SET /Month
Delivery Time :
20-30 work days
Packaging Details :
1×40 HC +1×20 GP （Pearl cotton + winding film packaging）
Glue :
PUR Adhesive
Warranty :
1 Year
Face Material :
PVC,Acrylic,PET,PETG,HPL
Basic Board :

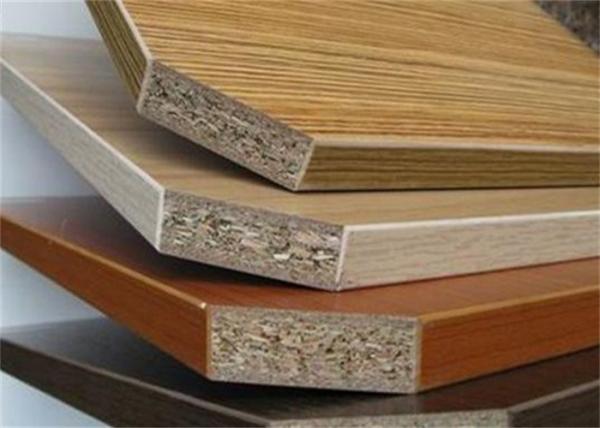

MLB(Multi laminating board)/PVC foam board /MgO board / MDF/CHIP Board
Weight :
About 7250KG
Description

Acrylic HPL PET sheet / PVC PET Film Coating Laminating Machine Using PUR Glue

Feature:Customizable

Time limit for delivery:20-30 working days

Working Principle

1. Sheet model:

The bottom plate is manually fed from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,The bottom plate is coated with glue, then conveyed to the front stalls by the 3# automatic laminating machine,the sucker is sucked up from the sheet stacking area (sheet by artificial feeding),automatically attach to glued floor,floor forward transportation,after pressing by 4#press machine,plate output from 5# out plate conveyor,artificial feeding.

2. Film continue mode:

The bottom plate is manually fed from the 1#dust cleaning conveyor,after 2#anilox rollgluing machine,the bottom plate is covered with glue and then conveyed by inclined rollers along the 3# automatic laminating machine,to 4# press machine and roll fit,plate output from 5# out plate conveyor,after trimming off by artificial feeding.

Technical parameters

1. Plate effective width:1000-1300mm；

2. Plate effective length:1500-2600mm；

3. Glued Plate effective thickness:2—50mm

4. Composite Plate effective thickness:5—70mm

5. Speed:5-20m/min

6. Total Power:61.2KW

7. Visual size:12334*3600*2800mm

8. Working height:800mm

9. Number of packages:8 Packages
