Specifications
Brand Name :
Sheng jin
Model Number :
RTM1300 Doubl Gluing
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD106000~122000/SET
Delivery Time :
30-40 work days
Packaging Details :
2×40 GP
Payment Terms :
T/T
Supply Ability :
2 SETS /Month
Usage :
Woodworking，Construction，Furniture
Type :
Hot Melt Glue
Application :
Panel Honeycomb board Bonding
Other names :
Hot Melt Adhesive Sticking Machine
Keywords :
Honeycomb /Hot Melt Adhesive /PUR Laminate
Description

RTM1300 Doubl Gluing Hot Melt Adhesive Coating Machine

Capability and use:

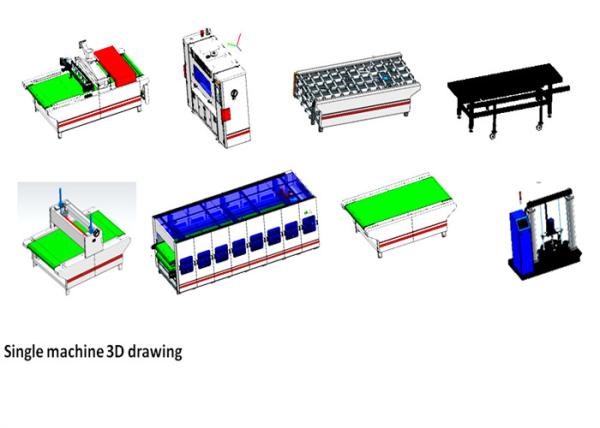

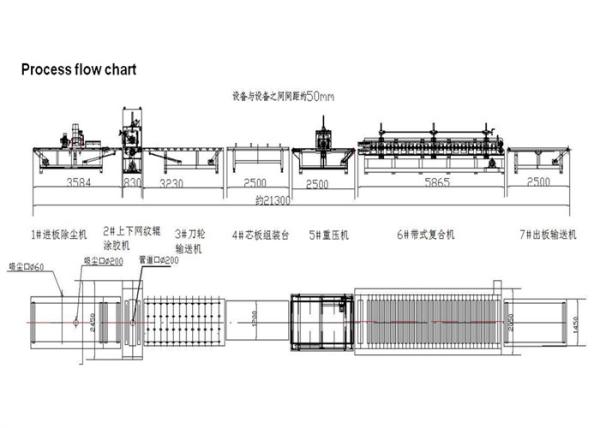

The machine is specially developed for customers,it’s a new special-purpose equipment.It consists of seven standalone unit and a PUR glue supply.The unit for the manufacturer required to laminate various substrate.Including wood design on face of three layer sandwich composite panels,and cellular core plate, other board etc.

Technical parameters:

1. Board max effective width:1000-1300mm

2. Board effective length:1600-2500mm

3. Board effective thickness:2-50mm

4. Effective thickness of composite Door:5-70mm

5. Equipment operating height:800mm

6. Motor power:19.34kw

7. Speed:5-20m/min

8. Total power:about 70kw

9. Visual size:21300×3600×2200mm(L×W×H)

10. The equipment is equipped with a dustproof system and a monitoring system.

11. Control mode: the equipment is the whole line control
