1300mm Hot Melt Glue Coating Machine 1500-3100mm 5-20m/Min 93kw
1300mm Hot Melt Glue Coating Machine 1500-3100mm 5-20m/Min 93kw
Specifications
Brand Name :
Sheng jin
Model Number :
RTM1300G
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD115000~118000/SET
Payment Terms :
T/T, L/C
Supply Ability :
3 SET /Month
Delivery Time :
30 work days
Packaging Details :
2×40 GP (11 PKGS)
Product name :
HOT-MELT GLUE STICKING MACHINE
Board maximal effective width :
1300mm
Board effective length :
1500-3100mm
Board effective thickness :
2-50mm
Equipment operating height :
800mm
Motor power :
24.93kW
Speed :
5-20m/min
Total power :
93kw
Description

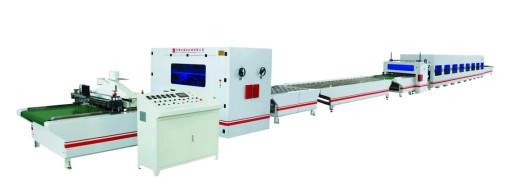

RTM1300G HOT-MELT GLUE STICKING MACHINE

Capability and use:

RTM1300G HOT-MELT GLUE STICKING MACHIN is specially developed for customers, it’s a new special-purpose equipment.It consists of seven standalone unit and two PUR glue suppliers.Among them, the double gluing machine is equipped with a set of gluing device for reticulated rolls and a set of gluing device for upper and lower reticulated rolls.

The production process is briefly described as follows:substrate is preheated by dedusting and then coated with PUR hot melt adhesive on double coating machine,artificial placement of frames, built-ins and panels on the roller assembly table,after pressing, the finished sheet is exported by the output plate machine.

Technical parameters:

1. Board maximal effective width: 1300mm;

2. Board effective length: 1500-3100mm;

3. Board effective thickness :2-50mm

4. Effective thickness of composite Door: 5-70mm

5. Equipment operating height : 800mm

6. Motor power: 24.93kW;

7. Speed:5-20m/min；

8. Total power: 93kw

9. Visual size:22120×4800×2200mm(L×W×H)
