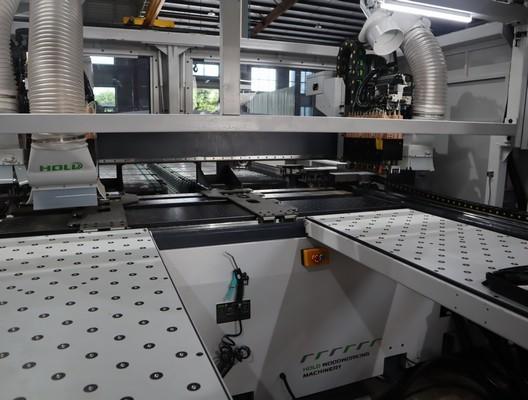

Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Two Workstation Six Side Drilling Machine For Wood 46KW
Specifications
Brand Name :
HOLD
Model Number :
HB622P
Certification :
CE
Place of Origin :
Guangdong China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
LC/ TT
Supply Ability :
10 Set / Month
Delivery Time :
45 Days
Packaging Details :
Poly Wrapping Or Wood cases
After-sales service provided :
Video technical support,Online support,Field installation
Condition :
New
Control system :
PLC control,CNC,Totally Automatic
Application :
Woodwork
Voltage :
380V 60Hz / Or Customize
Workpiece Max. width :
1200mm
Workpiece Min. width :
50mm
Workpiece Max. Length :
2750mm
Workpiece Min. Length :
150mm
Workpiece Min. Thicknes :
8mm
Workpiece Max. Thickness :
55mm
Number of Boaring Head :
2
Vertical drill :
12
Horizontal drill :
50
Bottom Boaring head Horizontal drill :
16
Total Power :
46KW
Overall dimensions :
6000x3900x1800mm
Spindle Power :
6KW*4
Total weight :
6000 kg
Description

Two Workstation Six-Side CNC Boring Machine

Quick Info.

Product name
 HOLD HB622P
Working effciency
1600-2400 pcs/ day
Working length
200-2800mm
Working width
50-1600mm
Working thickness
12-40mm
X(A)/Y/Z max working speed
120/80/30m/min
Spindle
Top spindle 3.5kW*2,Bottom spindle 3.5kW*2
Spindle speed
18000rpm
Top: 2.2kW*2,bottom:1.8kW*2
Drilling magazine speed
Top: 2800r/min, bottom: 2840r/min
Top drilling (vertical head)
V16 pcs*2
Top drilling (Horizontal head)
(X: 2*2 pcs+ Y: 2*2 pcs)X2
Bottom drilling (vertical head)
V9 pcs*2
Drill pipe delay protection
Horizontal drilling action, Vertical drilling delay
Drilling depth protection
Yes(by software)
Bottom dust-blowing device
Yes
Voltage
380V/3Phase/50Hz or customize
Total power
30kw
Overall size
L*W*H 6000x3900x1800mm (square:25.76㎡)
Moniter
Industrial Main Board
Code scanner
manual
AC contactor
/France
Sensor
Otto nix/Korea
Lowvoltageelectrical switches
Schneider /France
pneumatic component
EMC
Drilling magazine
KMS/China
Servo motor
TaiWan syntec
Reducer box
R-TUP planetary gear
Control systerm
Syntec control systerm/TaiWan
Inverter
Fuling/China
Guide rail
Roust/Germany
Ball screw
TBI/TaiWan
pinion and rack
Grinding grade/home made
Pump
2.2kW/Dry type
Operation COM systerm
Syntec+R-TUP Independent R&D on the microcomputer
Windows
Windows7 64bit
Available file format
mpr,BAN,XML,(can drawing in the systerm and transfer the program)
Gripper self-cleaning
yes
Bottom dust-blowing device
yes
Manipulator grasping and positioning
Support pre- position
Two sides grooving
First top, last bottom
Measure the board size
Plate size pre-detection, avoid the wrong processing, sound and photoelectric prompt
Process hole
principle of proximity
Features
Can process 6 sides work at one time
Rectangular steel structure, strong and durable
Standard manual loading and unloading of front and rear ends
Manual scaner gun
Double clamp
X/Y rack gear transmission ,Zaxis ball screw transmission
Servo control
Moving bracket + floating platform directly improves drilling efficiency and accuracy
Full Automatic CNC router panel furniture production line is widely used in customized panel furniture, cabinet making, home
decoration, shop and office furniture with automatic feeding, automatic CNC processing, automatic discharge.

FEATURES
1. Equipped with computer optimization layout software, saving plate, improve utilization.
2. The whole process of numerical control, reducing the professional and technical personnel requirements.
3. Easy to operate, 1-day training can be on the job.
4. Fully automatic loading and unloading system, no need to push or move materials manually, promise accurately positioned,
greatly improve production efficiency, multifunctional integrated machine.
5. Main parts adopt international famous brand, like FAM vertical driller, Taiwan Syntec control, Taiwan PMI
linear guide rail, etc, longer time used, good after-sales service.
6. All electronic components adopted European standard (CE certified) components, such as French Schneider, Japan OMRON limit

Product video

Two Workstation Six Side Drilling Machine For Wood 46KW


About our company

One-stop solution for

interior furniture equipment and wooden door equipment

HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.

HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.


FAQ:

1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.

2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.

3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
