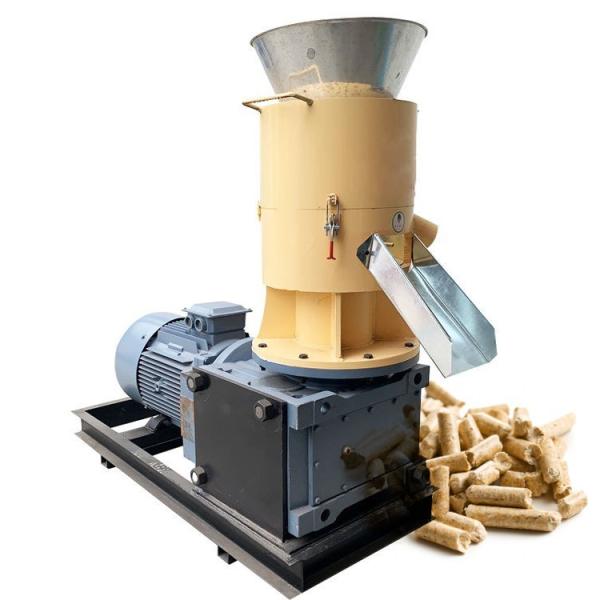

The Wholesale Wood Sawdust Making machine Biomass Vertical Ring Die Pellet Mill with CE Certificate
Introduction:
Wood pellet machine is a kind of molding equipment which can compresses agricultural and forestry biomass(disperse finely divided,non-shaped)into a rod-shaped and granular shape under the action of a certain temperature and pressure.
Biomass Wood pellet machine can use biomass and other wastes such as wood chips, straw, rice husks and bark as raw materials, and solidify them into high-density granule fuels through pretreatment and processing. It is an ideal fuel to replace kerosene. It can not only save energy but also reduce soot emissions, but also economic and social benefits. It is an efficient and clean renewable energy source.
Wood pellet Machine Use Raw Material:
1. Wood waste, scobs, branch, palm tree, sugarcane residue, sawdust, medical slag, hay, discarded edible fungus.
2. Bean stalk, wheat stalk, corn stalk, cotton stalks, sunflower stalks, mustard stalk, rice stalks, coffee husk, cotton shell, peanut shell, rice shell, coconut shell.
3. Livestock and poultry's waste, tea waste, tea waste, forestry wastes, forestry wastes, wood chips and many other organic waste resources.
Model | Capacity (kg/h) | Power (kw) | Specification (mm) | Weight(t) | Dimension (mm) |
RKL-250 | 100-200 | 15 | 4-6 | 0.5 | 1400*600*1000 |
RKL-280 | 150-250 | 22 | 4-6 | 0.65 | 1760*670*1600 |
RKL-300 | 100-300 | 30 | 4-8 | 0.76 | 1860*670*1600 |
RKL-350 | 300-600 | 37 | 4.5-10 | 2.2 | 1900*850*1750 |
RKL-400 | 500-800 | 55 | 4.5-10 | 4.3 | 2300*1100*1900 |
RKL-550 | 1000-1500 | 90 | 4.5-12 | 5.5 | 2350*1100*2050 |
RKL-800 | 1500-2500 | 160 | 4.5-12 | 6.8 | 3200*1235*2700 |
RKL-1200 | 3000-5000 | 320 | 4.5-15 | 19 | 3800*1700*4200 |
Features:
1. The mold is vertical and vertical feeding; the mold is stationary, the pressure roller rotates; the material is centrifuged, the material distribution is uniform;
2. 360 degree output high efficiency and energy saving; automatic lubrication system high pressure filtration, clean and smooth; independent frequency conversion, to ensure pellet molding.
3. The pelletized fuel after molding has a large specific gravity, is small in volume and resistant to combustion, and is convenient for storage and transportation. The volume after molding is 1/30 of the volume of the raw material, the specific gravity is 10-15 times of the raw material, and the calorific value can reach 3400-6000 kcal.
4. Material and Finished Production: wood machine pellet is suitable for all kinds of crop straw, wood chips, bamboo chips, rice husks, branches, bark, peanut melon shell, bagasse, Chinese medicine residue, sage and other raw materials, water content 10-30 % can be processed.
