Horizontal Tube Furnace Charcoal Briquette Machine Carbonization Stove Air Flow Palm Kernel Charcoal Making Furnace

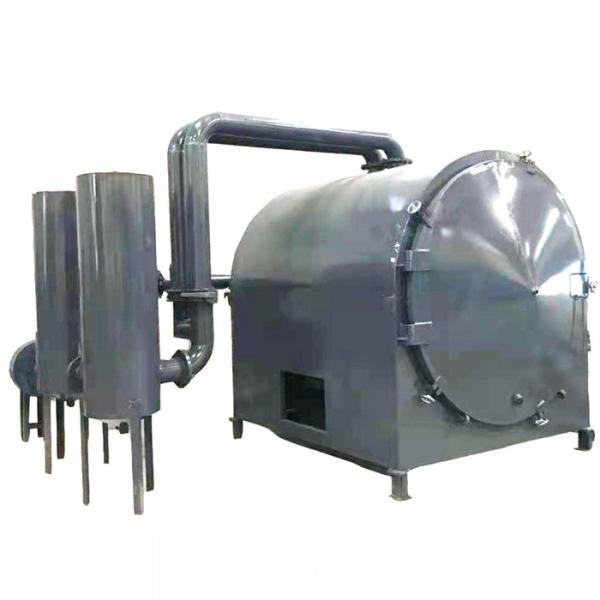

This Industrial horizontal charcoal carbonization furnace is an internal heat carbonization furnace, which can carbonize a variety of raw materials, such as bamboo, coconut shell, palm shell and other large materials. As it is of internal heat type, the high-temperature flue gas generated by the carbonized flue gas after full combustion in the flue gas incineration chamber and flue gas passage is used to drive the carbonization furnace. No energy is needed to be added in the carbonization process.

All kinds of wood, wood chips, wood branches, wood sawdust, wood wastes and other kinds of biomass like rice husks, peanut shells, coconut shells, wheat brans, stalks,tree branches, bamboo etc. And, the biomass briquettes like rice husk briquettes, wood briquettes can also be carbonized by our machine.

Specification

Our charcoal making furnace adopts the method of dry distillation and high temperature nature pyrolysis carbonizing process. This price of carbonization furnace is our new invention, using the structure of unique burning chamber, to fully reuse the smoke produced during the process of carbonization. And 80% of the redundant smoke also can be used in drying and carbonization which saves energy and increases the enterprise revenue. And the operation is very convenient: Heating the inside materials until it produces fuel gas ,tar and final charcoal; 6-8 hours for regular carbonization process and then 8-10 hours for cooling, then the charcoal product can be take out by the moving trolley, less labor required.

Advantages of industrial charcoal carbonization furnace

1. Simple and convenient, this machine don't need power. Saving a lot of energy.

2. It can finish 2-3batches every 24hours. The specific temperature and carbonization time are mainly depend on raw material moisture content, density, diameter size and carbonization degree, etc.

3. More environmentally friendly and saving fuel. The stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating.

4. Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.

5. Carbonization furnace to end the charcoal cooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient and convenient.

Production process of Mingyang charcoal making furnace

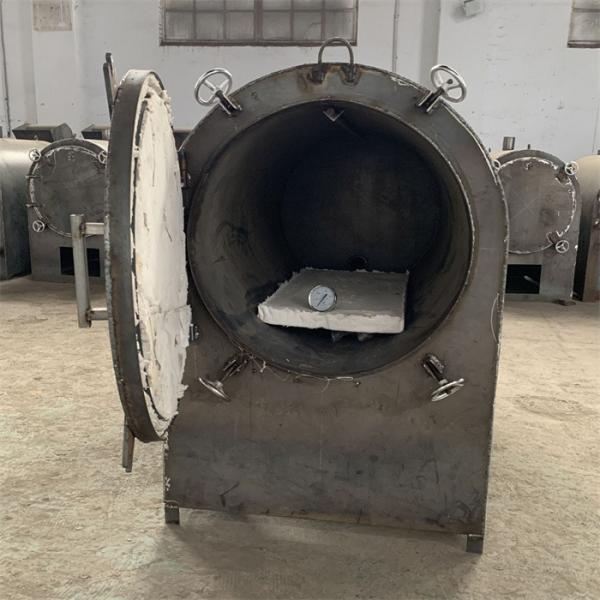

Firstly, we open the sealing door. Then we can put the raw materials( such as the wood logs, wood briquettes, wood chips, coconut shell or macadamia-nut shell). If the raw materials are the granular size ( such as coconut shell or macadamia-nut shell). We should put the cylinder venting in the trolley firstly. Because there should be enough space inside to guarantee the carbonizing completely.
Then we push the loaded trolley into the furnace.
After doing these preparing work, we begin to heat in the base of the stove by fuel materials. With the temperature of rising, some smoke will come out from the exhaust port
When the temperature of inner furnace reaches to high degree ( different raw materials has different temperature). When the smoke color becomes light yellow, we should connect fume extraction tube at once, let the smoke return back to the stove. Also stop heating by the fuel at the same time. The materials ( wood logs or the shell) are under the progress of carbonizing.

When the temperature reach to 450 degree, should stop heating, disconnect the jointing parts. Taking the trolley out from the furnace. We can get the final charcoal out from the furnace.
