Specifications
Brand Name :
Jinzhao
Model Number :
XGJ560A
Place of Origin :
Shandong, China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
10-25 working days
Packaging Details :
suitable packing for sea freight
Raw Material :
Wood, Straw, Grass, Sawdust, Etc.
Warranty :
1 Year
Voltage :
3phases,380v-415v,50hz
Control System :
Electricity Control System
Main Machine :
Pellet Machine, Hammer Mill, Dryer, Cooler, Etc.
Application :
Feed, Fuel, Fertilizer, Etc.
Spare parts :
Mould and roller shell
Motor Power :
90kw or 132kw
Pellet Diameter :
6mm/8mm
Description

Customized Capacity Complete Wood Pellet Production Line With 132kw Pellet Mill

Customized Capacity Complete Wood Pellet Production Line Description:

Fully Biomass Pellet Production Line including wood chipper, wood hammer mill, wood sawdust dryer, wood pellet machine, pellet cooler machine, pellet packing machine and conveyors for transporting materials. Based on your raw materials condition, choose related machine. For example, if your raw materials are wood sawdust, you just need wood sawdust dryer, pellet machine, pellet cooler machine, and pellet packing machine; whereas if your raw materials are rice husk, you just need to select a pellet machine, pellet cooler, and pellet packing machine. The key machine in the line is pellet machinery, so it's important to choose the right pellet machine.

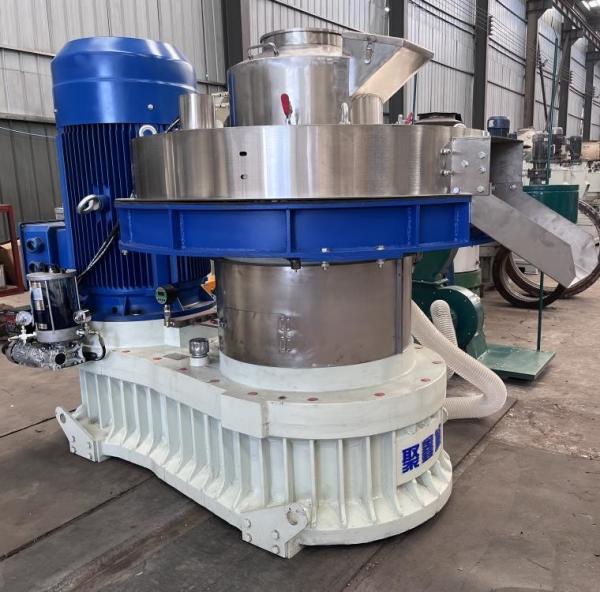

Wood Pellet Making Machine is a special equipment for biomass fuel granulation and coarse fiber material pelletizing. It consists of a reasonable structure, stable operation, high forming rate and high output. The main structure includes power part, transmission part, granulation part (the core part is mould and pressure wheel), automatic lubrication part, and air-cooled dust removal part.
Among the various types of pellet machine, Jinzhao 8th generation pellet machine is one of the most famous. It has superior production capacity, smooth operation, and high work efficiency.

Customized Capacity Complete Wood Pellet Production Line With 132kw Pellet Mill Features:

Pellet Machine Gear Box

The gear box of pellet machine adopts three-stage gear deceleration which result in five times larger carrying capacity than the old models and super long service life. It is made by five axis gantry CNC machining center to ensure its quality and precision. With the connection to Chinese standard motor through a coupling, kinetic energy conversion rate will be increased and production efficiency improved, and maintenance will be more conveniently.

Main Shaft
The main shaft of pellet machine is made of 45# steel. To enhance its hardness and service life, the shaft will be processed by precision casting, quenching and tempering heat treatment after rough machining.
New Kick-Out System

The feeding system of the pellet machine is equipped with hard tooth surface reducer which can provide longer life and more stable operation when compared with the traditional system. The pellets discharging is smoother and the forming degree is better due to the disc type discharging.

Lubrication Pump
The pellet machine is provided with two sets lubricating system, grease pump and circulating lubricating oil pump. Grease pump is mainly to lubricates two rollers in pellet machine while circulative lubricating oil pump is equipped to lubricates the pellet machine main shaft bearings and gearbox as well as the material dial part. With flow detection and over-pressure protection, the gear box will not be failed due to poor lubrication. Besides, the lubrication pump is also outfitted with a cooling fan so that the machine can still operate without interruption.
Ring Die

Pellet machine is provided with two kinds of rings die, one is made of alloy steel while the other one of stainless steel material. They both are quenched in a vacuum furnace to possess uniform hardness and super wear-resistant. The die holes are processed by high-speed gun drilling such that it has even holes arranged and inner of holes are smooth. Furthermore, both upper and lower sides of the die can be used.

Customized Capacity Complete Wood Pellet Production Line With 132kw Pellet Mill Applications:

The Complete Pellet Production Line provided by Jinzhao offers a solution for producing wood pellets, biomass pellets, and other related products. The Jinzhao XGJ560 pellet machine is a versatile and reliable solution that is capable of processing many types of raw materials, such as wood, straw, grass, sawdust, and more. The motor power is customizable, and the pellet press is equipped with a 1-year warranty and CE, ISO, SGS certificates. This is a complete wood pellet production line that is reliable and efficient, and is capable of producing high-quality pellets. It is equipped with advanced technology and the latest features, and it is designed to be economical and cost-effective. The Complete Pellet Production Line is an ideal choice for businesses looking to produce wood pellets and other related products.

Customized Capacity Complete Wood Pellet Production Line With 132kw Pellet Mill Support and Services:

Pre-sale service
1. Expertise and experience of our team help each client to select their most suitable pellet machine.
2. Legal logo printing or design are available.
3. Quality + Good Price + Quick Response + Reliable Service is what we are doing best to offer you.
After you choose:
1. Your machine order can be arranged to produce at the first time.
2. Empty loading running test once machine finished production.
3. Every equipment will be checked carefully before packing, take photos and video for you.
4. Shipment booking service is supported.
5. Supervise the whole process of loading.
6. Customs clearance documents will be supplied in time.
After-sale service
1. 24hours on-line service, guide you to install and operate the machines your ordered.
2. Video communication guide your local workers doing installation, commissioning and normal maintenance.
3. Engineer technician can be available to your factory to on-site guide installation, training for biomass pellet machine line and other big machines.
4. Spare parts and accessories will be supplied with good price and delivered in 7 working days.

Customized Capacity Complete Wood Pellet Production Line With 132kw Pellet Mill FAQ:

Q1. What is your payment term?
A1: T/T 30% down payment, the balance to be paid before shipment.
Q2: What is your main market?
A2: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q3: What is your delivery time?
A3: Unit pellet machine can be done well within 7 working days. Complete line will be done with 15-50 working days, the specific time depends on the amount of equipment you purchased.
Q4: What documents you can offer?
A4: Invoice, packing list, contract for customs declaration, certificate of origin, Form E etc, If client need other documents, specifications, please confirm with service staff.
Q5: If machine have some quality problem, your solutions?
A5: If finally confirm our side machine quality problem within guarantee time, we will responsible for it. Change all the parts for free.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
