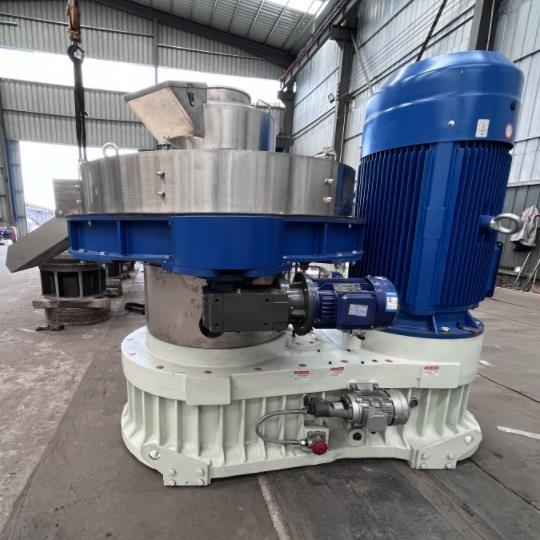

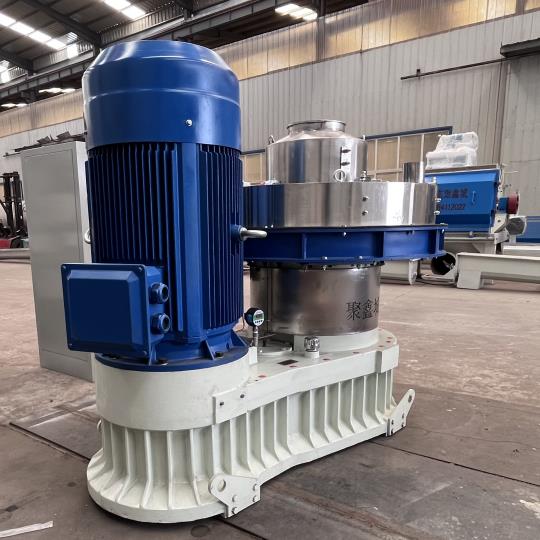

Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H Product Description:

The vertical ring die pellet machine is a kind of special equipment designed for granulating biomass fuel and other coarse fibre materials. It stands out for its excellent structural composition, stable operational performance, high forming rate, and high output capacity.

The main parts of this equipment are its power component, transmission component, granulating component (with the core parts being the mould and pressure wheel), automated lubrication system, and air-cooled dust removal system.

Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H Features:

Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H Gear Box
1)The gear box adopts three-stage gear deceleration, the carrying capacity is 5 times larger than the old model, and the service life is super long.
2)Pellet machine gear box is made by five axis gantry CNC machining center, guarantee the quality and precision of the gearbox.
3)The gear box is connected with Chinese standard motor by coupling directly, increase kinetic energy conversion rate and improve production efficiency, meanwhile, maintenance is more conveniently. The motor brands we cooperated are all well-known in domestic.

About Main Shaft Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H
1) The main shaft is made of 45# steel.
2)To increase the hardness and service life of the shaft, pellet machine main shaft are been processed by precision casting, quenching and tempering heat treatment after rough machining.

Ring Die Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H
There are two kind die. One made of alloy steel, one made of stainless steel material, quenched in a vacuum furnace, and the die has uniform hardness, no breakage, and super wear-resistant; the die holes are processed by high-speed gun drilling, the holes are arranged evenly , and the inside of the holes is smooth. Up and down all can be used.

Roller Shell Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H
There are three type roller shell. One type surface carbonizing treatment Trough. Second type is the roller shell Sealing Groove. The third type is the roller shell adopts super wear-resistant alloy welding process by robot.

Technical Parameters of Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H:

Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H Applications:

Jinzhao's Grass Wood Pellet Machine Sawdust Pellet Machine XGJ560 1500-2000Kg/H is an advanced biomass pelletizing device for home and industrial use, certified by CE and ISO. It is suitable for processing a wide range of biomass raw materials, including grass, rice husk, wood sawdust, biomass, straw, cotton stalks and other agricultural and forestry wastes. This small wood pellet machine features ring die mould, high efficiency and low energy consumption, which makes it an ideal choice for biomass pelletizing.

This Sawdust Pellet Making Machine Wood Pellet Machine XGJ560 For Grass 1500-2000 Kg/H is suitable for large and small scale production. It can be used for producing high quality biomass pellets with a wide range of raw materials. The wood pellets produced by this machine have a high burning efficiency and low ash content, which makes them an ideal fuel for home and industrial use. This machine is easy to operate and maintain, and it can be used to produce high quality wood pellets with a short production cycle.

Jinzhao's XGJ560 Sawdust Pellet Making Machine Wood Pellet Machine XGJ560 For Grass 1500-2000 Kg/H Output is an ideal choice for biomass pelletizing. It can process a wide range of raw materials, with high efficiency and low energy consumption. It is easy to operate and maintain, and it can produce high quality wood pellets with a short production cycle. The wood pellets produced by this machine have a high burning efficiency and low ash content, making them an ideal fuel for home and industrial use.
