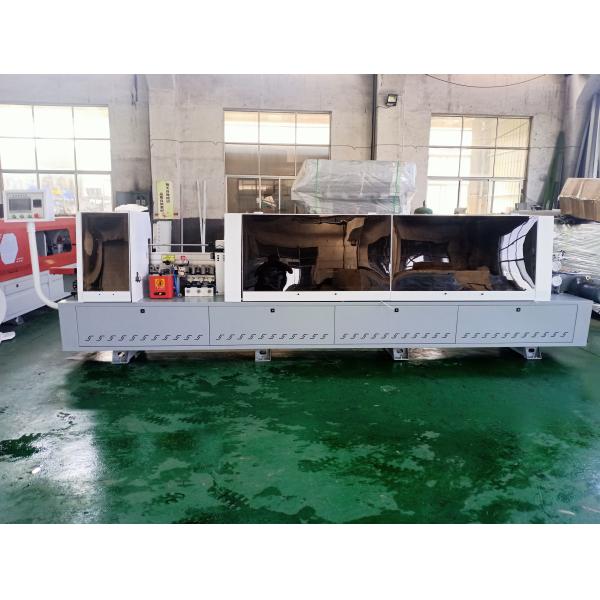

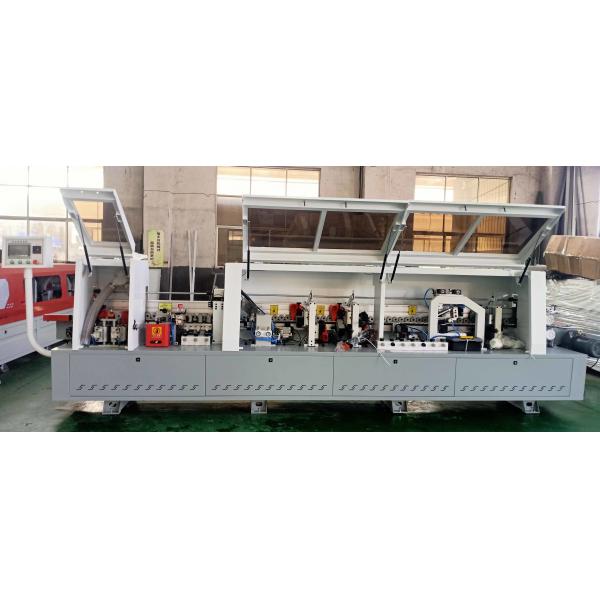

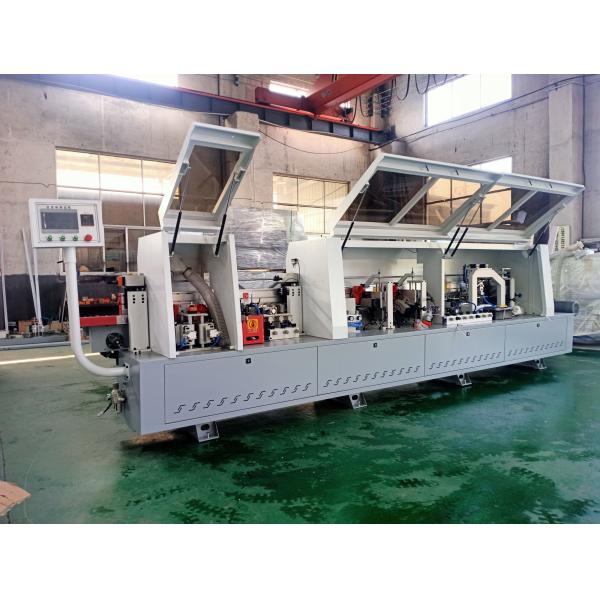

KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
KC308 MDF wood door edge banding machine with pre-milling R round trim functions
Specifications
Brand Name :
KW
Model Number :
KC308
Place of Origin :
qingdao China
MOQ :
1 set
Payment Terms :
D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
15-30 days
Packaging Details :
Plywood case
Voltage :
customized
Warranty :
1 year
Description

Automatic edge banding machine KC308

Test video:

https://youtu.be/o5tEprwSEZ8

Functions:

Pre-milling,Gluing,End trimming,Rough trimming,Fine trimming,Corner trimming,Scraping,Buffing.

KC308 MDF wood door edge banding machine with pre-milling R round trim functions

Model KC308
Control Panel Touch screen
Motor power 9.5kw
Feeding speed High--middle--low speed 15-22m/min
Panel thickness 10-60mm
Panel length ≥150mm
Edge banding tape thickness 0.4-3mm
Panel width ≥60mm
Working air pressure 0.6-0.8Mpa
Pre-milling motor 2.2kw*2pcs
Glue motor 0.37kw
End cutting motor 0.55kw*2pcs
Rough trim motor 0.75kw*2pcs
Fine trim motor 0.75kw*2pcs
Round trim motor 0.3kw*2pcs
Polishing motor 0.18kw*2pcs
Feeding motor 1.5kw
Lift motor 0.18kw
N.W./G.W. 1400kg/1600kg
Machine size 5700*800*1500mm
Package size 6200*1000*1750mm
