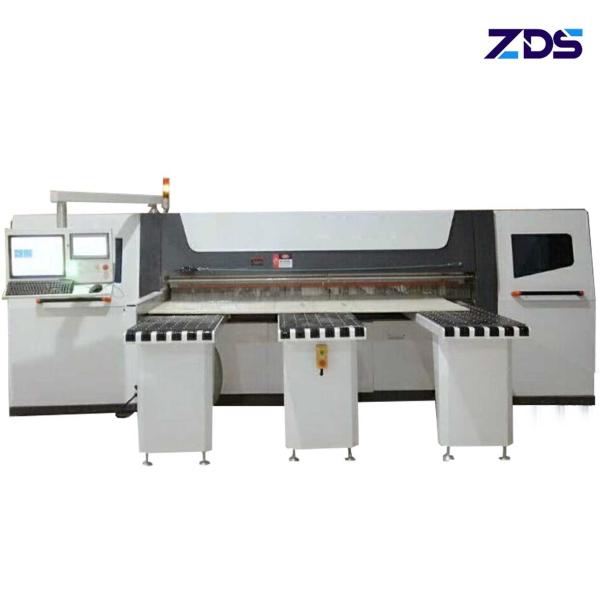

Cutting Length 2700mm Woodworking CNC Machine 80m/Min Panel Sawing Machine

Precautions for operating wood panel sawing machine:

1. Before starting the machine, check whether the saw blade is sharp, whether the clamp handle of the saw blade base and the screws of each component are loose, and adjust it in time;
2. Before starting the machine, clean up the sawdust on the machine table, air trough, etc. in time, and check whether there is any remaining sawdust at the interface of the control box, etc., and clean it up immediately;
3. Workers wear work clothes, work gloves and protective glasses when working;
4. During the feeding process, the board must be close to the machine ruler and pushed into the manipulator;
5. Do not stand in the cutting direction to prevent sawdust from flying out and hurting people. When discharging, workers should ensure a safe distance from the discharge port;
6. When a fault occurs, the power supply should be cut off immediately and the operation should be stopped, and repaired and maintained by professionals;
7. Cut off the power supply in time after the stop work, and clean and lubricate the equipment.

Computer panel saw work flow:

When the cutting saw machine works automatically, first move the feeding manipulator to the set feeding area, move the saw blade to the initial position, start the saw blade, and then push the plate into the manipulator against the ruler, and then start the automatic cycle; the manipulator clamps Hold the plate and pull the material back, move backward to the long distance of the plate, and then feed forward according to the set length; after the feeding is completed, the pressure rod moves down to press the plate, and the saw blade rises; the pressure rod is pressed in place, and the saw blade moves After the saw blade is in place, the saw blade moves forward. After the advance is in place, the saw blade drops and the pressure beam rises. When the saw blade is in place, the saw blade retreats. At the same time, the above action cycle is repeated for another feeding. Until all the set quantities are processed, the manipulator runs to the zero position to remove the remaining material. When it is launched, a cycle of work is completed.
It involves the action control of the feeding manipulator, the pressing beam, the saw blade and the plate supporter, and the automatic calling and management of parameters such as various cutting sizes and weights.
