Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making
Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making
Specifications
Brand Name :
ZDS
Model Number :
ZDS-NC4
Place of Origin :
China
MOQ :
1sets
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
30sets/months
Delivery Time :
5-8 work days
Packaging Details :
Plastic film winding
Name :
Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making
Control system :
Taiwan Baoyuan System
Drive motor :
1.5kw ZHISHAN servo motor 2+1 (brake)
Principal axis :
6.0KW spindle x 4, speed: 18000 rpm
Effective working stroke :
2800X 1220X 200mm (L x W x H)
Dimensions :
4000x 2400X 2200mm (L x W x H)
Description

Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making

The four-step cutting machine has four spindles, and each spindle is fixed with a tool, which can automatically change the tool. The main functions are: automatic material cutting, grooving, reaming, etc. The cabinet body and door panel can be processed. Considering production efficiency, it is often used for processing cabinets.

Panel furniture refers to furniture that is connected by man-made panels and hardware. Panel furniture is easy to disassemble and assemble, saves wood, and has various colors. It is a variety developed by the furniture industry.

Panel furniture cutting machine is mainly used for panel furniture cutting, grooving, punching and other processes. At the same time, it includes all the engraving and milling functions of woodworking engraving machines, which can fully meet the needs of panel furniture production and whole house custom production; It is suitable for the processing of diversified complex products or various processing, and has a wide range of uses: one-time cutting, drilling, cutting, chamfering, milling, engraving, etc.

Product Description
Name Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making
Model ZDS-NC4
Frequency converter Inverter 7.5KW (KEKEN)
Guide rail, slider Taiwan, Y axis adopts 30#, XZ axis adopts 25#, frame and beam adopt flange slider
Rack Taiwan Jingte high-precision 2-mode helical rack, rack with additional quenching process
Screw rod 2510 Taiwan TBI ball screw
Bearing Japan angular contact bearing x2, domestic deep groove ball bearing x1
Processing speed 0-25m/min
No load speed 0-80m/min
Accurate relocation +0.2mm
Total power about 24kw
Total weight about 3 tons
Effective working stroke 2800X 1220X 200mm (L x W x H)
Dimensions 4000x 2400X 2200mm (L x W x H)
Voltage 380V±5% 50HZ1±1%

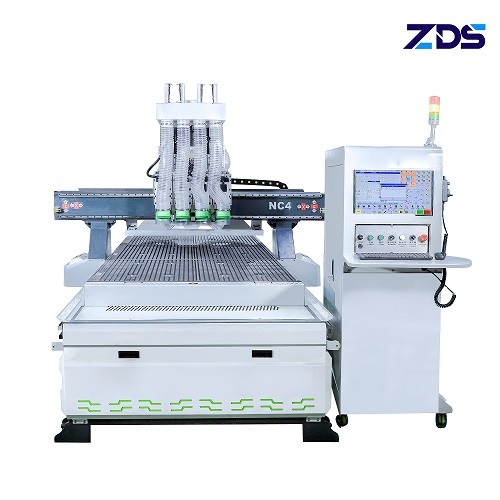

Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making

Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making

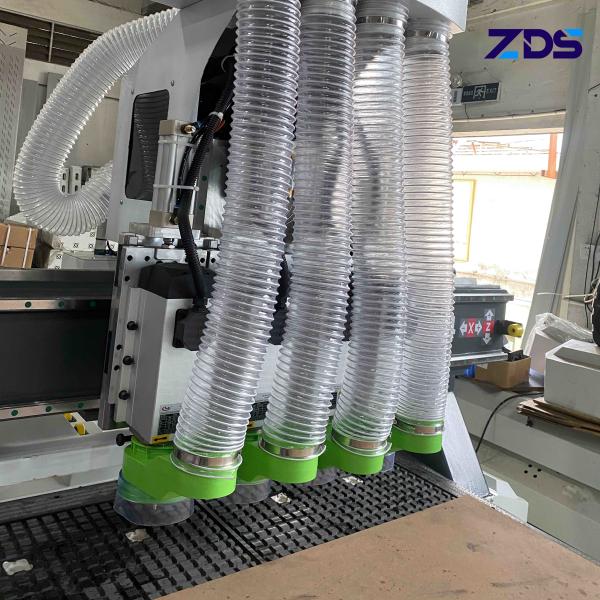

6kw four-spindle simultaneous machining group

Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making

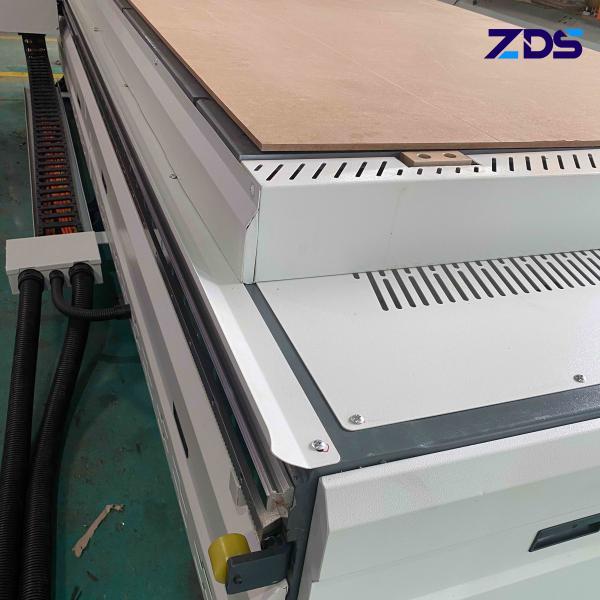

Tracking trimming device

Four Spindles CNC Wood Router Machine 25m Per Min CNC Router For Cabinet Making

Finished Products
