1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine
1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine
Specifications
Brand Name :
ZDS
Model Number :
ZDS-NC4
Place of Origin :
China
MOQ :
1sets
Price :
USD13700/sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/months
Delivery Time :
5-8 work days
Packaging Details :
Plastic film winding
Name :
1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine
Condition :
New
Cnc or not :
CNC
Warranty :
12 Months
Voltage :
380V
Weight :
3000Kg
Control system :
Taiwan Syntec Control System
Inverter :
11KW Taiwan DELTA Inverter
Motor :
Servo Motor
Spindle power :
6KW*4
Description

1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine

The CNC router machine can cooperate with many design and layout optimization cutting software, which can improve the utilization rate of the plate, and the software can automatically dismantle the order and cut the material automatically, and it can be produced with simple operation.

It is suitable for the processing of panel furniture, cabinets, wardrobes, stereos, interior decoration materials of automobiles and yachts, and other non-metallic materials. It is suitable for plate cutting for diversified production modes, processing of cabinet doors and interior doors, and high-performance.

Product Description
Name 1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine
Model ZDS-NC4
Control system Taiwan Baoyuan System
Drive motor 1.5kw ZHISHAN servo motor 2+1 (brake)
Principal axis 6.0KW spindle x 4, speed: 18000 rpm
Frequency converter Inverter 7.5KW (KEKEN)
Guide rail, slider Taiwan, Y axis adopts 30#, XZ axis adopts 25#, frame and beam adopt flange slider
Rack Taiwan Jingte high-precision 2-mode helical rack, rack with additional quenching process
Screw rod 2510 Taiwan TBI ball screw
Bearing Japan angular contact bearing x2, domestic deep groove ball bearing x1
Workbench 1220x 2440mm vacuum adsorption, 6 zones
Frame, beam National standard rectangular square tube welding
Vacuum pump 7.5kw Water-cooled circulating pump
electrical Schneider Electric
Processing speed 0-25m/min
No load speed 0-80m/min
Accurate relocation +0.2mm
Total power about 24kw
Total weight about 3 tons
Effective working stroke 2800X 1220X 200mm (L x W x H)
Dimensions 4000x 2400X 2200mm (L x W x H)
Voltage 380V±5% 50HZ1±1%

1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine

1325 Wardrobe Woodworking CNC Router Machine Wood Statue Carving Machine

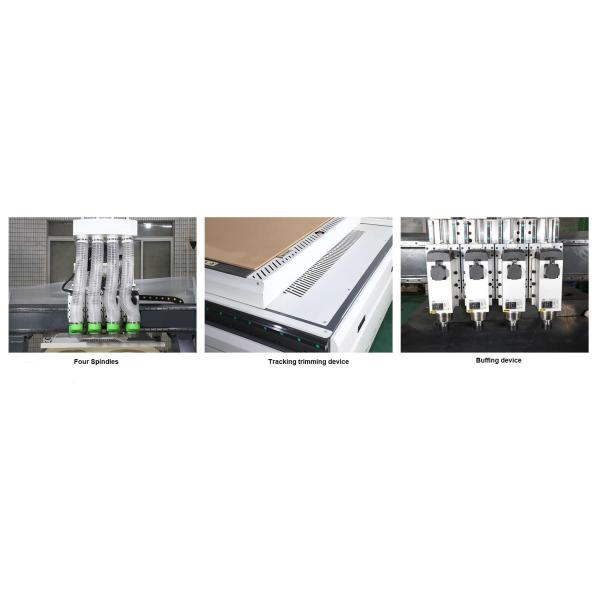

6kw four-spindle simultaneous machining group

Suitable for custom furniture, panel furniture, cabinet wardrobe, office furniture etc.

Application:

Suitable for panel furniture, cabinet doors, office furniture, custom furniture, door industry and other industries.

Material:

multi-layer board, particle board, ecological board, MDF, wave board and other various boards.
