380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks
380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks
380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks
380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks
Specifications
Brand Name :
ZDS
Model Number :
73032
Place of Origin :
China
MOQ :
1sets
Price :
negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100sets/months
Delivery Time :
5-8 work days
Packaging Details :
Plastic film winding
Name :
Double head hinged drill machine
Voltage :
380V
After-sales service provided :
Online support
Power(w) :
1.1kw*2
Weight :
550kg
Dimension(l*w*h) :
1700*800*1550mm
Drilling speed :
2840r/min
Warranty :
12months
Description

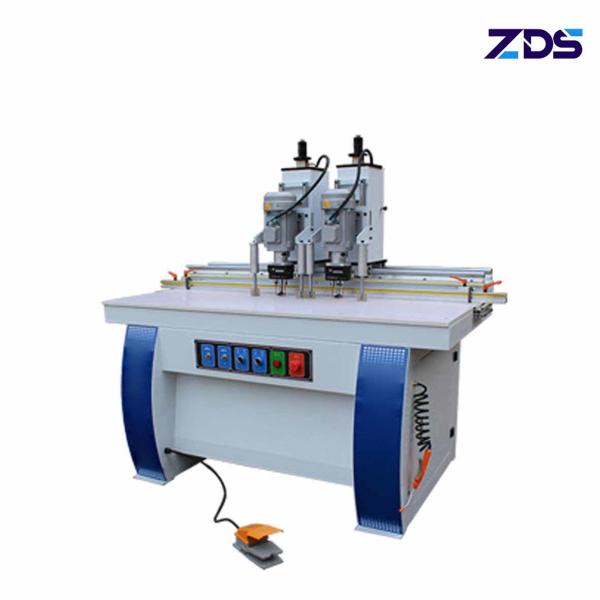

Double head hinged drilling machine for drilling holes in wood planks

Woodworking automatic double-head hinge drill, the main guide hole of the double-head hinge can be completed at one time. The woodworking automatic single head hinge drilling machine is economical. The hinged woodworking machinery and equipment commonly used in the production of hinged drilling machine furniture is suitable for the production of panel furniture. This machine is mainly used for the door hole link drilling of panel furniture. Woodworking double-row vertical hinge machine, vertical hinge drilling machine, single-head hinge machine adopts High-precision double guide rails ensure the vertical adjustment of the movement of the drill shaft. The imported standard drill row is used with high drilling accuracy. (The drill bags are all made in Taiwan.) This series of products is mainly used for loose-leaf and hinge drilling. The drilling position can be adjusted vertically and horizontally, which is convenient and quick to adapt to the drilling processing requirements. Ideal equipment.

Name Double head hinge drilling machine
Mode ZDS-73032
Maximum drilling diameter φ35mm
Maximum drilling depth 50mm
Maximum processing length 1500mm
Drill chuck aperture 3*2
Spindle speed 2840r/min
Air pressure 0.6-0.8Mpa
Voltage 380v
The motor power 1.1kw*2
Warranty period 12 Months
Application MDF, partical/abs/artficial board
After-sales service provided Online support
Produce name Woodworking hinge drill, Cabinet door hinge drill
Overall dimensions 1700*800*1550mm
Weight 550kg

380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks

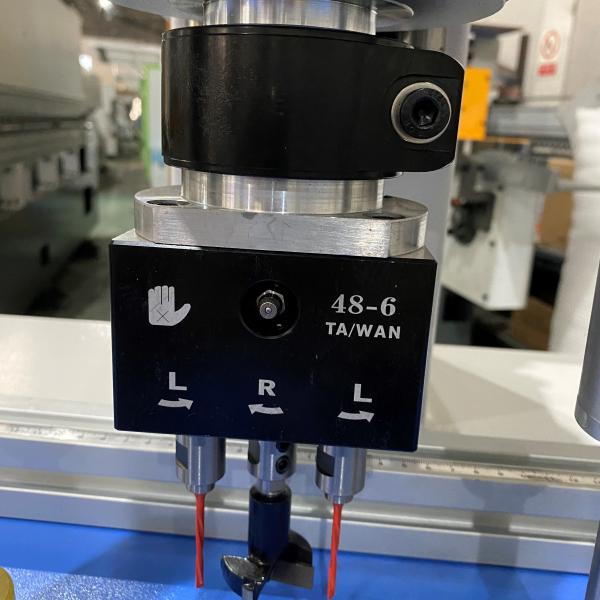

Hinged Drill Kit

Adopt excellent drill bag design, low noise and long use time

380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks

Positioning bezel

Accurate scale, can be adjusted according to the needs of the work

380V 1.1kw*2 Double Head Hinge Hole Drilling Machine For Wood Planks

Footswitch

Foot switch control, safe and labor-saving
