PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
Specifications
Condition :
New
Range of Spindle Speed(r.p.m) :
1 - 2840 rpm
Positioning Accuracy (mm) :
0.03 mm
No. of Spindles :
Single
Working Table Size(mm) :
1280*2860mm
Machine Type :
CNC Router
Travel (X Axis)(mm) :
1280 mm
Travel (Y Axis)(mm) :
2860 mm
Repeatability (X/Y/Z) (mm) :
0.03 mm
Spindle Motor Power(kW) :
10
CNC or Not :
CNC
Place of Origin :
Qingdao,China
Brand Name :
TEING
Voltage :
AC 380V/220 or customization
Dimension(L*W*H) :
5900*2400*1850mm
Power (kW) :
24
Weight (KG) :
4500
Control System Brand :
Syntec
Warranty :
12 Months
Key Selling Points :
high productivity
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
2 years
Core Components :
Motor
Traveling Size :
1300*2850mm
Working size :
1250*2800*200mm
Drive type :
X/Y Rack, Z lead screw
Table Structure :
adsorption strip+adsorption block
Spindle power :
10KW
Spindle speed :
2400r/min
Traveling speed :
80m/min
Drilling type :
12 vertical+4 horizontal+1 saw blade
Max working speed :
20m/min
Tool magazine form :
Hat type
Local Service Location :
Egypt, Viet Nam, South Africa, Nigeria, Uzbekistan
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location :
Egypt, Viet Nam, South Africa, Nigeria
Marketing Type :
New Product 2020
Certification :
CE ISO
Packaging Details :
Export Standard Wrapping Film Package
Port :
Qingdao, China
Supply Ability :
100 Set/Sets per Year
Price :
$44,200.00 - $47,200.00/sets
Description

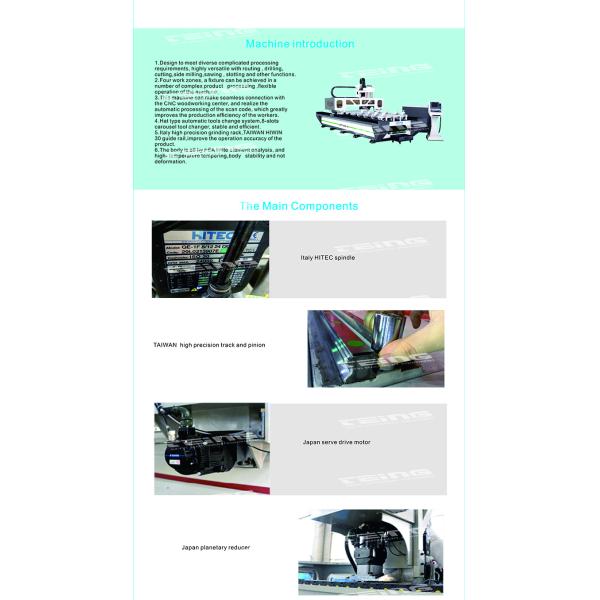

Product Overview
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328

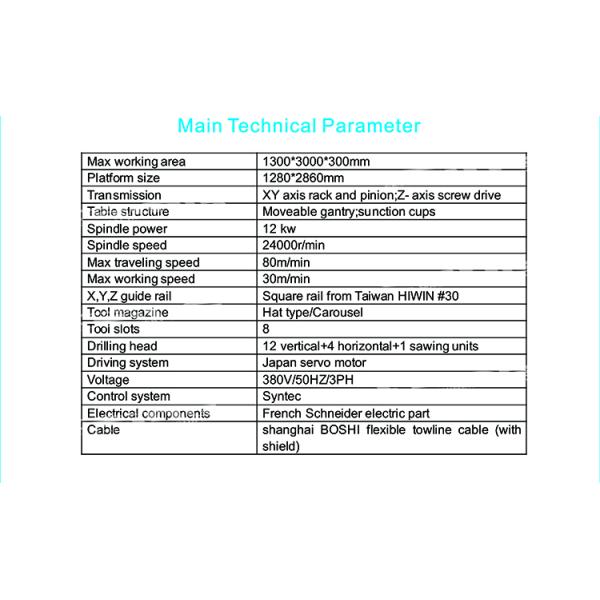

Technical Data Sheet
Model
SXA1328-6 / 8
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328

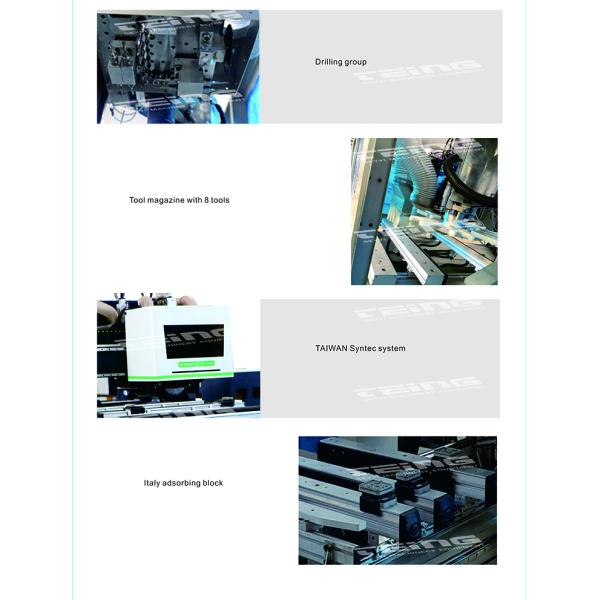

Details Images
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
Exhibition
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
Company Profile
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
Qingdao Skyyi Hengtong Machinery Equipment Co.,Ltd is one of the leading manufacturer in the woodworking machinery of China. We have 10000sqm factory and well-known "TEING" brand of sliding table saw, edge banding machine, sanding machine and so on.
With more than 10 years in woodworking machine industry, our machine had sold out to more than 20 Chinese Province, and more than 30 countries and regions, such as: Vietnam, Malaysia, USA, Canada, Brazil, Preu, Pakistan, Russia, Ukraine, India, Uzbekistan, Israel, Yemen, Thailand, Mexico, Ecuador and so on.
We passed the ISO 9001:2008, SGS and other certification, we believe through our efforts to make "TEING" grow up to world famous brand in order to serve worldwide woodworking industry with our quality products.
PTP Woodworking Center CNC Router Drilling Machine with 2860mm Y Axis Travel SXA1328
