8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
Specifications
Place of Origin :
Qingdao,China
Condition :
New
Type :
Edge Banding Machine
Brand Name :
TEING
Voltage :
380V/220V or customized
Dimension(L*W*H) :
4000x900x1600mm
Power (kW) :
8.5kw
Weight (KG) :
1100 kg
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company, Other
Warranty :
12 months
Function :
Gluing
Key Selling Points :
Automatic
Panel Feed Speed(m/min) :
20m/min
Video outgoing-inspection :
Provided
Warranty of core components :
2 Year
Core Components :
Motor
Usage :
Particle Board Production
Edge Banding Tape Thickness :
0.4-3mm
Panel Thickness :
10-60mm
Panel Width :
≥60mm
Panel Length :
≥120mm
Feed Speed :
14-20-23m/min
Working Pressure :
0.6Mpa
Lifting Mode :
Electric
Color :
Support Customization
Working methods :
Fully Automatic
Name :
Edge Banding Machine
Packaging Details :
Wraping film package, or according client request
Port :
Qingdao, China
Supply Ability :
200 Set/Sets per Year
Price :
$5,880.00/sets 1-4 sets
Description
Product Overview
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
Technical Data Sheet
Model
SKY420
Edge Banding Tape Thickness(mm)
0.4-3mm
Panel Thickness(mm)
10-60mm
Panel Width(mm)
≥60mm
Panel Length(mm)
≥120mm
Feed Speed(m/min)
14-20-23m/min
Working Pressure(Mpa)
0.6Mpa
Total Power (KW)
8.5kw
Overall Size(mm)
4000mm*900mm*1600mm
Lifting Mode
Manual

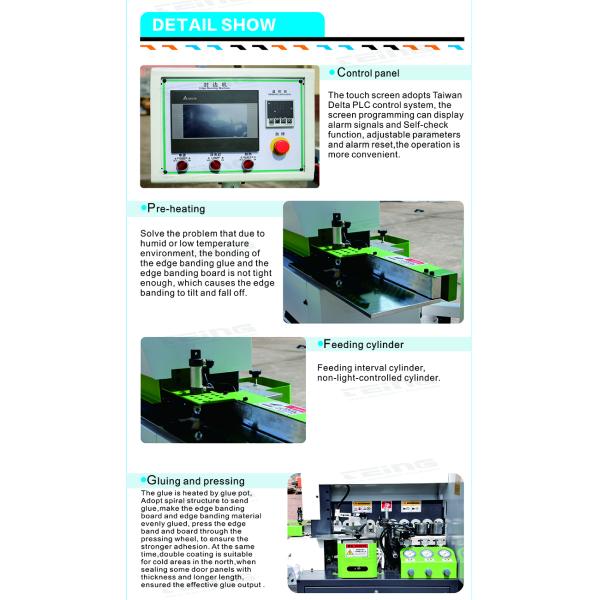

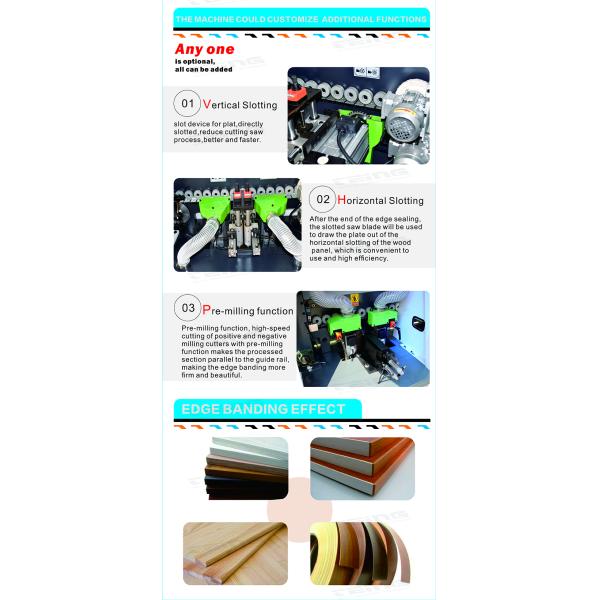

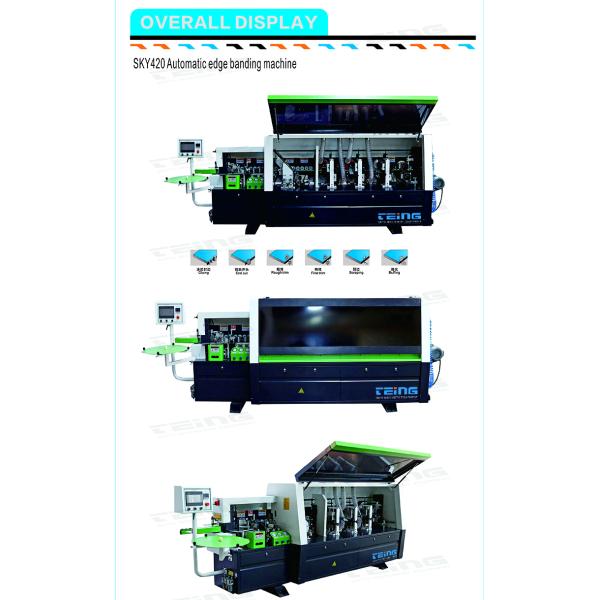

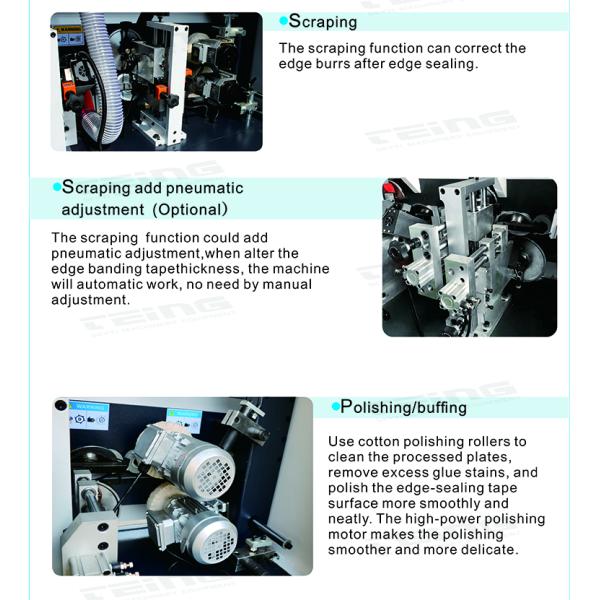

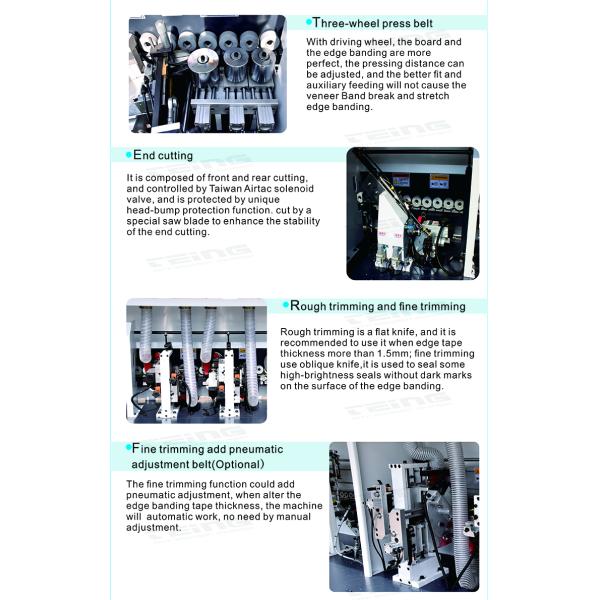

Details Images
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
Exhibition
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
Company Profile
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
Qingdao Skyyi Hengtong Machinery Equipment Co.,Ltd is one of the leading manufacturer in the woodworking machinery of China. We have 10000sqm factory and well-known "TEING" brand of sliding table saw, edge banding machine, sanding machine and so on.
With more than 10 years in woodworking machine industry, our machine had sold out to more than 20 Chinese Province, and more than 30 countries and regions, such as: Vietnam, Malaysia, USA, Canada, Brazil, Preu, Pakistan, Russia, Ukraine, India, Uzbekistan, Israel, Yemen, Thailand, Mexico, Ecuador and so on.
We passed the ISO 9001:2008, SGS and other certification, we believe through our efforts to make "TEING" grow up to world famous brand in order to serve worldwide woodworking industry with our quality products.
8.5kW Power Automatic Edge Bander with Double Trimming and Electric Lifting Mode SKY420
