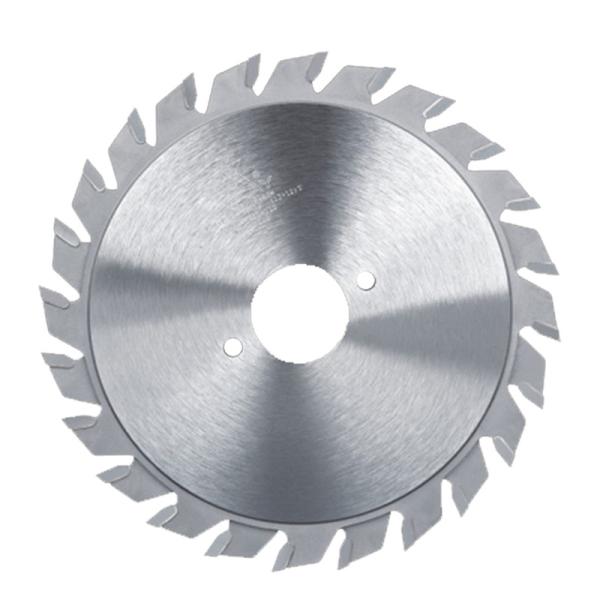

140 144 Tooth Saw Blade Cutting Wood For Metal Steel ODM
140 144 Tooth Saw Blade Cutting Wood For Metal Steel ODM
Specifications
Brand Name :
Songpu
Model Number :
300mm To 730mm TCT Circular Saw Blade
Place of Origin :
Jiangsu, China
MOQ :
10 PCS
Price :
negotiable
Supply Ability :
100000pcs/month
Customized support :
OEM, ODM
Color :
Picture Shows
Grade :
Industrial
Product Name :
TCT Circular Saw Blade
Feature :
High Speed.Straight Smooth Edge
Packing :
Standard Packing
Advantage :
High Efficiency, Low Noise, High Speed,Excellent Wear Resistance, Heat Resistance, Long Linfespan.electricity Saving
Keywords :
Wood Circular Saw Disc
Usage :
Cut ceramic, wood, hard wood material cutting
Blade Thickness :
0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in, Customized
Teeths :
140, 144, Customized
Process Type :
HOT PRESS, High Frequency Welded, Laser welded, Cold PRESS, Customized
Suitable Machine :
Circular Saw, Miter Saw, Table Saw, Radial Arm Saw
Blade Material :
TCT, Alloy, Diamond, Tungsten Carbide Steel, HSS
Description

TCT Saw Blade For Cutting Wind Energy Composites


VIABLE APPLICATIONS
They can be used across multiple industries for heavy-duty applications. Some of the applications of TCT blades include:
Cutting all types of wood, including plywood, MDF, birch ply, melamine faced chipboard, oak, all types of soft wood and hard wood
Cutting plastics
Cutting laminates


SUNPU offers high quality TCT saw blades for wood cutting. Our company introduces and uses advanced facilities including automatic welding and grinding machines, tension testing and heattreatment facilities, which guarantee high quality TCT saw blades. Meanwhile, we control vertical tolerance within 0.03 mm, radial tolerance within +/-0.03 mm to reduce wobbling during working. Our unique technical process guarantees long cutting life, perfect cutting edge and lower noise.

产品编码 外径 齿宽 锯身厚度 内孔 齿数 切削角 齿型 定位孔
ID D (mm) B (mm) b (mm) d (mm) Z α T-type Positioning hole
C3001F01 300 4 3 30 60 15 TP 　
C3052A02 300 4 3 30 72 15 TP 　
C3052B02 300 4 3 80 72 15 TP 　
C3029B03 300 4 3 30 96 15 TP 2/15/110+4/9/100
C3029C02 300 4 3 75 96 15 TP 　
C3001F02 300 4.4 3.2 30 60 15 TP 　
C3001D01 300 4.4 3.2 80 60 15 TP 　
C3052A01 300 4.4 3.2 30 72 15 TP 2/15/110+4/9/100
C3052B01 300 4.4 3.2 80 72 15 TP 　
C3029B02 300 4.4 3.2 30 96 15 TP 2/15/110+4/9/100
C3029C01 300 4.4 3.2 75 96 15 TP 　
C3029A01 300 4.4 3.2 80 96 15 TP 　
C3023B01 350 4 3 30 72 15 TP 　
C3023A01 350 4 3 60 72 15 TP 　
C3023F01 350 4.4 3.2 25.4 72 15 TP 2/15/100
C3023B03 350 4.4 3.2 30 72 15 TP 　
C3023A02 350 4.4 3.2 60 72 15 TP 　
C3023C01 350 4.4 3.2 75 72 15 TP 2/15/100
C3023D03 350 4.4 3.2 80 72 15 TP 4/15/105
C3005C03 350 4 3 30 84 15 TP 4/9/100+2/9/110+2/15/110
C3005A02 350 4 3 60 84 15 TP 2/15/100
C3005D01 350 4.4 3.2 25.4 84 15 TP 　
C3005C01 350 4.4 3.2 30 84 15 TP 　
C3005A01 350 4.4 3.2 60 84 15 TP 2/15/100
C3005B01 350 4.4 3.2 75 84 15 TP 4/15/105
C3005E03 350 4.4 3.2 80 84 15 TP 4/9/100+2/9/110+2/15/110
C3033A01 350 4.4 3.2 25.4 96 15 TP 　
C3033D01 350 4.4 3.2 30 96 15 TP 　
C3033B01 350 4.4 3.2 60 96 15 TP 4/15/100
C3033F01 350 4.4 3.2 75 96 15 TP 4/15/105
C3033C01 350 4.4 3.2 80 96 15 TP 4/9/100+2/9/110+2/15/110
C3009D01 380 4.4 3.2 30 72 15 TP 　
C3009A03 380 4.4 3.2 60 72 15 TP 2/15/100
C3009C01 380 4.4 3.2 75 72 15 TP 4/15/105
C3009E01 380 4.4 3.2 80 72 15 TP 4/9/100+2/9/110+2/15/110
C3004D01 380 4.4 3.2 30 84 15 TP 　
C3004A02 380 4.4 3.2 60 84 15 TP 2/15/100
C3004E01 380 4.4 3.2 80 84 15 TP 4/9/100+2/9/110+2/15/110
C3041A01 380 4.4 3.2 30 96 15 TP 　
C3041B01 380 4.4 3.2 60 96 15 TP 2/15/100
C3041C01 380 4.4 3.2 75 96 15 TP 4/15/105
C3041D01 380 4.4 3.2 80 96 15 TP 4/9/100+2/9/110+2/15/110
C3009A01 380 4.8 3.6 60 72 15 TP 2/15/100
C3009E02 380 4.8 3.6 80 72 15 TP 4/9/100+2/9/110+2/15/110
C3004A01 380 4.8 3.6 60 84 15 TP 2/15/100
C3004E02 380 4.8 3.6 80 84 15 TP 4/9/100+2/9/110+2/15/110
C3041B02 380 4.8 3.6 60 96 15 TP 2/15/100
C3041D02 380 4.8 3.6 80 96 15 TP 4/9/100+2/9/110+2/15/110
C4007C02 400 4.4 3.2 30 72 15 TP 　
C4007A01 400 4.4 3.2 60 72 15 TP 2/15/100
C4007B01 400 4.4 3.2 75 72 15 TP 4/15/105
C4007D01 400 4.4 3.2 80 72 15 TP 4/19/120+2/9/130
C4002F01 400 4.4 3.2 30 84 15 TP 　
C4002A01 400 4.4 3.2 60 84 15 TP 2/15/100
C4002B01 400 4.4 3.2 75 84 15 TP 4/15/105
C4002E02 400 4.4 3.2 80 84 15 TP 4/19/120+2/9/130
C4003B01 400 4.4 3.2 60 96 15 TP 2/15/100
C4003C01 400 4.4 3.2 75 96 15 TP 4/15/105
C4003D01 400 4.4 3.2 80 96 15 TP 4/19/120+2/9/130
C4007E01 400 4.8 3.6 60 72 15 TP 2/15/100+2/15/125
C4007B02 400 4.8 3.6 75 72 15 TP 4/15/105
C4002C02 400 4.8 3.6 60 84 15 TP 2/15/100+2/15/125
C4015B01 430 4.4 3.2 80 72 15 TP 4/19/120+2/9/130
C4004A01 430 4.4 3.2 75 96 15 TP 4/15/105
C4004A02 430 4.8 3.6 75 96 15 TP 4/15/105
C4004B01 430 4.8 3.6 80 96 15 TP 4/19/120+2/9/130
C4008A01 450 4.4 3.2 30 72 15 TP 2/13/94
C4008B01 450 4.4 3.2 60 72 15 TP 2/10/80+2/15/125
C4008C01 450 4.4 3.2 80 72 15 TP 2/9/130+4/19/120
C4001A02 450 4.4 3.2 60 84 15 TP 2/10/80+2/15/125
C4001B01 450 4.4 3.2 75 84 15 TP 4/15/105
C4001C01 450 4.4 3.2 80 84 15 TP 2/9/130+4/19/120
C4008A02 450 4.8 3.6 30 72 15 TP 2/13/94
C4008B02 450 4.8 3.6 60 72 15 TP 2/10/80+2/15/125
C4008C02 450 4.8 3.6 80 72 15 TP 2/9/130+4/19/120
C4001A01 450 4.8 3.6 60 84 15 TP 2/10/80+2/15/125
C4001C02 450 4.8 3.6 80 84 15 TP 2/9/130+4/19/120
C4018A01 450 4.8 3.6 60 96 15 TP 2/10/80+2/15/125
C4018B01 450 4.8 3.6 80 96 15 TP 2/9/130+4/19/120
C4019B01 480 4.8 3.6 60 72 15 TP 2/11/115+2/19/120
C4019A01 480 4.8 3.6 80 72 15 TP 2/9/130+4/19/120
C4020A01 480 4.8 3.6 60 84 15 TP 2/11/115+2/19/120
C4020B01 480 4.8 3.6 80 84 15 TP 2/9/130+4/19/120
C5001A01 500 4.8 3.6 60 72 15 TP 2/11/115
C5002A01 500 4.8 3.6 60 84 15 TP 2/11/115
C5003A01 520 4.8 3.6 30 72 15 TP 2/13/94
C5003B01 520 4.8 3.6 60 72 15 TP 2/11/115+2/19/120
C5004A01 520 4.8 3.6 60 84 15 TP 2/11/115+2/19/120
C6002A01 600 5.8 4 60 60 15 TP 2/11/115+2/19/120
C6003A01 600 5.8 4 60 72 15 TP 2/11/115+2/19/120
C6001A01 730 7 5.2 80 70 18 TP 2/17/110

Our Services & Strength :

1. According to the materials provided by the customer, choose 6 kinds of imported steel and 8 kinds of domestic high-quality steel.
2. The heat treatment adopts the domestic leading equipment and technology, with the following options: vacuum quenching,high-frequency quenching and salt furnace quenching.
3. Three elements of quality control and quality assurance: material selection, heat treatment and precision.

FAQ:

Q1:How is your quality?
A1:Our product is very durable and sharp. We guarantee the high performance of our products.

Q2:Do you accept customization?
A2:Yes,our products can be customized according to your needs. According to the type of machine and slitting, we have almost all kinds of blades.

Q3:Is there cheap shipping cost to import to our country?
A3: For small order,Express will be the best, And for bulk order, ocean shipping way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.

Q4:How long is the delivery time?
A4:Generally it is 3-5 days if the goods are in stock, or it is 15-20 days, if the goods are not in stock. It is according to quantity.

Q5:When you can reply to me when I send you an Inquiry?
A5:We promise to reply within 3 hours( including holidays) on receipt of your inquiry.
