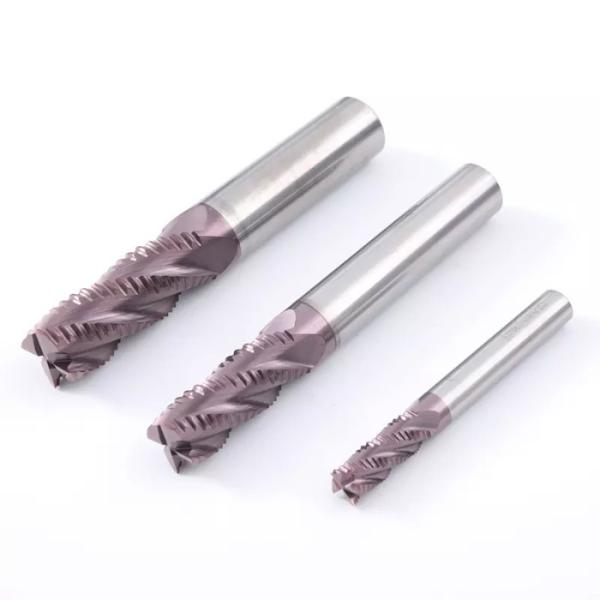

D5 D6 Carbide End Mill 4 Flute Solid Carbide Chamfer Mill AlTiN Coating
D5 D6 Carbide End Mill 4 Flute Solid Carbide Chamfer Mill AlTiN Coating
Specifications
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000 piece/pieces per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons and wooden cases
Product Name :
Cnc Milling Cutter Tools
Material :
Tungsten Cobalt Alloy
Type :
End mill
Coating :
AlTiN, TiAIN, TiCN, Tin
Application :
Carbon steel
HRC :
45
Advantages :
High heat stability
Controlling Mode :
CNC milling machine
Description

End Mill 4 Flute Hrc45 Coated Milling Cutters For Metal Working Tools

The purpose of a milling cutter is to remove material from a workpiece. With that said, milling cutters don't consist of a single blade. While turning operations performed using a lathe generally feature a single-bladed cutting tool, milling cutters consist of multiple blades. Sharp cutting edge recommended for stainless steel, as well for cutting different steels below 48HRC, such as cast iron. Application for roughing and finishing cutting, drilling, and ramping. Work on any cutting direction with high speed condition.

Products Features:

1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer

2. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily

3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing

4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized

5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten

6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved

Standard type

Model No. Flute Diameter (mm) Flute length (mm) Shank Diameter (mm) Overall length (mm)
D1*3*D4*50 1 3 4 50
D1.5*4.5*D4*50 1.5 4.5 4 50
D2*6*D4*50 2 6 4 50
D2.5*7*D4*50 2.5 7 4 50
D3*8*D4*50 3 8 4 50
D3.5*10*D4*50 3.5 10 4 50
D4*10*D4*50 4 10 4 50
D5*13*D6*50 5 13 6 50
D6*15*D6*50 6 15 6 50
D8*20*D8*60 8 20 8 60
D10*25*D10*75 10 25 10 75
D12*30*D12*75 12 30 12 75
D14*45*D14*100 14 45 14 100
D16*45*D16*100 16 45 16 100
D18*45*D18*100 18 45 18 100
D20*45*D20*100 20 45 20 100

D5 D6 Carbide End Mill 4 Flute Solid Carbide Chamfer Mill AlTiN Coating
