Product Specification:

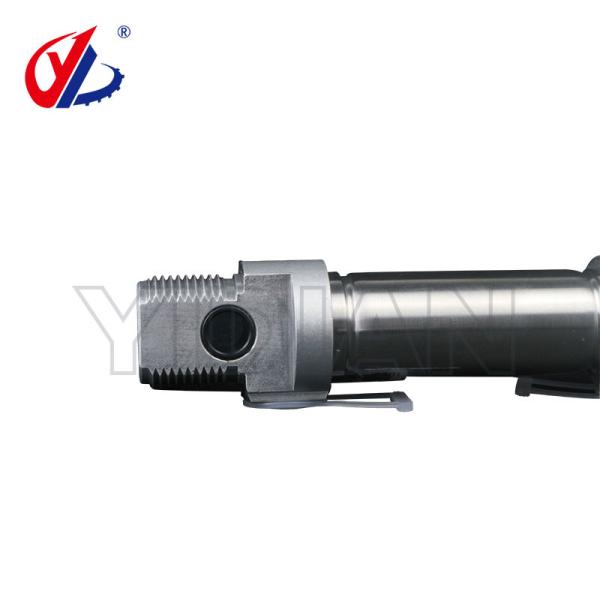

FESTO Air Cylinder DSNU-20-20-P-A 1908283 P708 - KDT Edgebanding Machine Spare

Product Overview

The Air Cylinder DSNU-20-20-P-A 1908283 P708 is a high-quality pneumatic component designed specifically for use in KDT edgebanding machines. This air cylinder is essential for ensuring smooth and efficient operation in your machinery, providing precise linear motion control for various applications within the edgebanding process.

Key Features

- High-Quality Construction: Manufactured by FESTO, a leader in pneumatic technology, this air cylinder boasts exceptional durability and reliability. It is crafted from premium materials to withstand rigorous industrial use.

- Precise Control: With a 20mm bore and 20mm stroke, this air cylinder offers precise linear motion control, ensuring accurate positioning and movement of components within the edgebanding machine.

- Easy Integration: Designed for compatibility with KDT edgebanding machines, the FESTO DSNU-20-20-P-A is easy to install and integrate into your existing setup. Its standardized dimensions and fittings make replacement straightforward.

- Long Service Life: Thanks to its robust construction and high-quality materials, this air cylinder provides a long service life, reducing downtime and maintenance costs.

Installation Instructions

1. Safety Precautions: Before starting the installation process, ensure the edgebanding machine is turned off and disconnected from the air supply. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.

2. Remove the Old Cylinder: Locate the existing air cylinder in the edgebanding machine. Carefully disconnect the air lines and mounting hardware. Remove the old cylinder, taking note of its orientation and position.

3. Prepare the New Cylinder: Inspect the new FESTO air cylinder for any signs of damage or defects. Ensure that it is clean and free from debris before installation.

4. Install the New Cylinder: Position the new cylinder in place, aligning it with the mounting points on the edgebanding machine. Attach the air lines to the cylinder's ports, ensuring a secure and leak-free connection. Secure the cylinder using the appropriate mounting hardware.

5. Test the Installation: Once the new cylinder is securely installed, reconnect the air supply and power up the edgebanding machine. Perform a test run to verify that the cylinder is functioning correctly. Check for any air leaks, unusual noises, or improper movement, and make any necessary adjustments.

Maintenance Tips

- Regular Inspection:Periodically inspect the air cylinder for signs of wear, damage, or air leaks. Replace the cylinder if any significant issues are detected to maintain optimal performance.

- Cleaning: Keep the cylinder clean and free from dust and debris. Use a soft cloth or brush to remove any buildup on the cylinder's surface and around the mounting points.

- Lubrication: Follow the manufacturer’s recommendations for lubrication. Ensure that the cylinder’s moving parts are adequately lubricated to reduce friction and wear.

- Air Supply Quality: Ensure that the air supply to the cylinder is clean and dry. Contaminants such as moisture, oil, and particulates can damage the cylinder and reduce its lifespan. Use appropriate air filters and dryers to maintain air quality.

- Storage: If the air cylinder is not in use, store it in a cool, dry place away from direct sunlight and extreme temperatures to prevent premature aging and degradation of materials.
