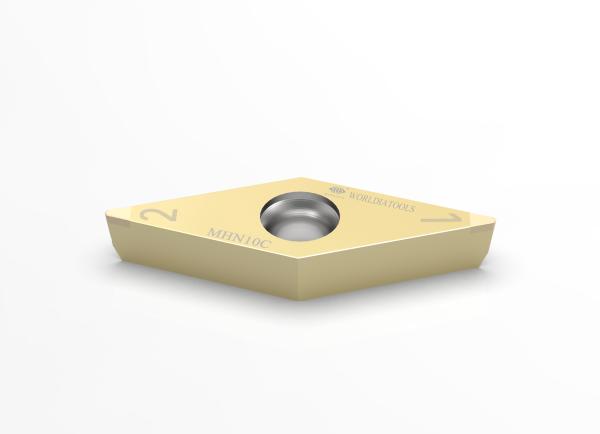

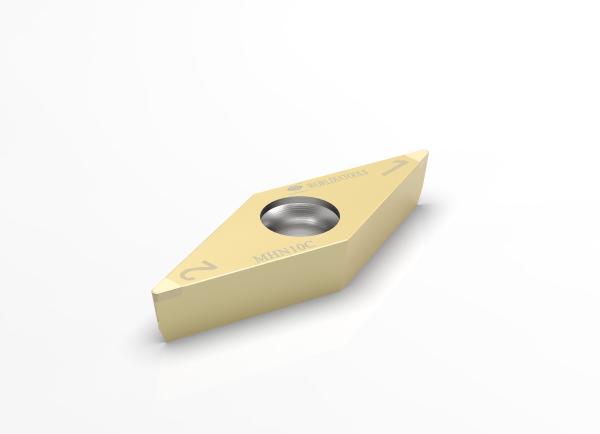

ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
ISO RoHS Yellow CBN Carbide Cutting Insert For Hardened Steel
Specifications
Brand Name :
ManaNova
Model Number :
VCGW 110308
Certification :
ISO9001,14001.18001, RoHS
Place of Origin :
Beijing, China
MOQ :
2 Piece
Price :
$20-40/ Piece
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
In stock
Delivery Time :
3-4days
Packaging Details :
2 PCs/Blue rose box
Product Brand :
WORLDIA
Product Family :
ManaNova
Name :
PCBN Coated insert
Usage :
Turning tools
Material :
PCBN+Carbide
PCBN Grade :
MNH10C/20C/30C
Tips :
2
Color :
Yellow
Application :
High-precision maching of hardening steel
Description

VCGW110308 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel

Material:

Poly-Crystalline Diamond (PCD)

1. Reduce your tooling cost significantly

Polycrystalline cubic boron nitride(CBN)

1. With an excellent hot hardness

Description:

MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,

mainly promoting PCD / PCBN standard inserts.

MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide

fast and efficient service for domestic and foreign customers to meet their demand for standardized and universalized tools.

Application:

MHN10C Applied to the continuous cutting of hardened steel
MHN20C Applied to medium interrupted cutting of hardened steel
MHN30C Applied to the heavy interrupted cutting of hardened steel
MKN10 Applied to the cutting of gray cast iron
MKN20 Applied to the cutting of ductile iron
MSN10 Applied to the cutting of powder metallurgy
MSN20 Applied to the cutting of powder metallurgy


Main products:


PCBN insert:

PCBN insert is suitable for machining of hardened steel, gray cast iron, ductile iron, and powder metallurgy.

PCD insert:

PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.

Advantages:
· Universal
· Easy choice
· Fast delivery


Service:
· Online store service
· Local distributor support
· Technical support

Specification:

Material ISO H ISO K ISO S
PCBN Grade MHN10C MHN20C MNH30C MKN10 MKN20 MSN10 MSN20
Smooth Moderate Toughness Cast Iron Ductile Iron Powder Metallurgy Powder Metallurgy
Vc 180(150~250)
m/min		 100(50~150)
m/min		 80(30~120)
m/min		 600(300~800)
m/min		 300(150~450)
m/min		 300(200~500)
m/min		 500(300~800)
m/min
fn 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r
% 45~55 60~70 85~95 85~95 60~70 60~70 85~95
Grain size 1~2 um 1~2 um 2~3um 2~3 um 1~2 um 1~2 um 2~3 um
Bond TiC TiN Co/W Co/W TiCN TiCN Co/W

VCGW Shape Dimensions
ANSI Code ISO Code Tips IC
mm		 S
mm		 R
mm		 Φd
mm		 LE
mm
All
Stocked		 VCGW 221 VCGW 110304 2N 6.35 3.18 0.4 2.8 2.2
VCGW 222 VCGW 110308 2N 6.35 3.18 0.8 2.8 2.2
VCGW 331 VCGW 160404 2N 9.525 4.76 0.4 4.4 2.2
VCGW 332 VCGW 160408 2N 9.525 4.76 0.8 4.4 2.2
