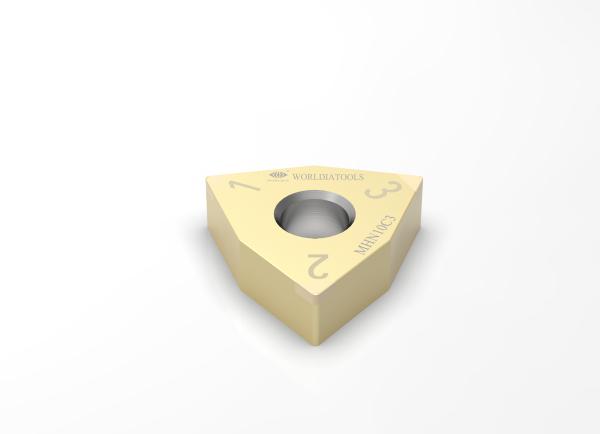

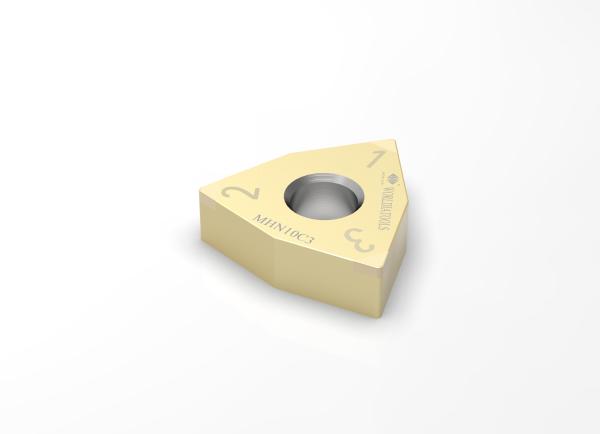

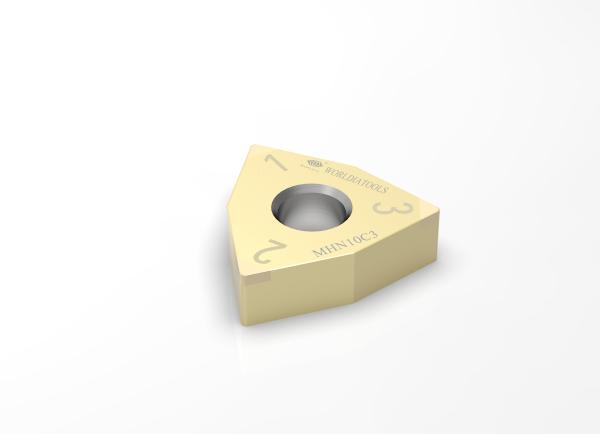

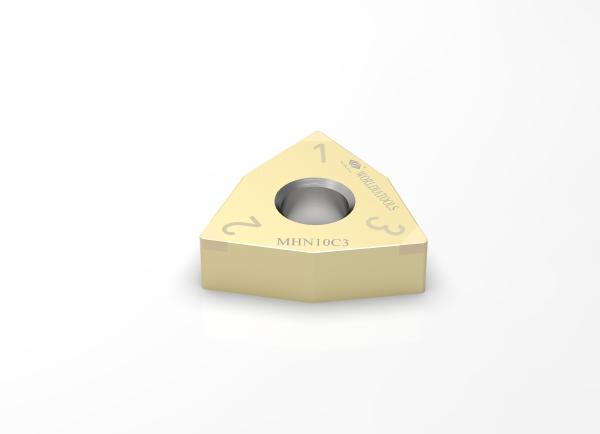

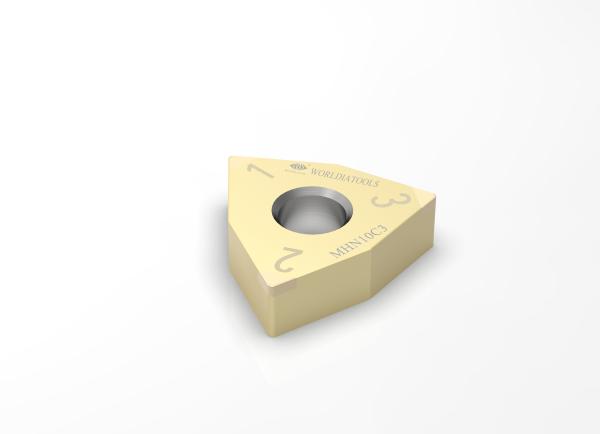

WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
WNGA PCBN Cutting Inserts CBN Lathe Inserts For hardening steel
Specifications
Brand Name :
ManaNova
Model Number :
WNGA 080408
Certification :
ISO9001,14001.18001, RoHS
Place of Origin :
Beijing, China
MOQ :
2 Piece
Price :
$20-40/ Piece
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
In stock
Delivery Time :
3-4days
Packaging Details :
2 PCs/Blue rose box
Product Brand :
WORLDIA
Product Family :
ManaNova
Name :
PCBN Coated insert
Usage :
Turning tools
Material :
PCBN+Carbide
PCBN Grade :
MNH10C/20C/30C
Tips :
2
Coating :
C3
Application :
High-precision maching of hardening steel
Description

WNGA080408 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel

In the manufacturing worldia, changes push us to promote our products and service.

We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.

We want to grow up with you together.

Application:

MHN10C Applied to the continuous cutting of hardened steel
MHN20C Applied to medium interrupted cutting of hardened steel
MHN30C Applied to the heavy interrupted cutting of hardened steel
MKN10 Applied to the cutting of gray cast iron
MKN20 Applied to the cutting of ductile iron
MSN10 Applied to the cutting of powder metallurgy
MSN20 Applied to the cutting of powder metallurgy

Description:

MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,

mainly promoting PCD / PCBN standard inserts.

The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.


Material:

Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,

PCD tools are ideal for use with non-ferrous metal.

Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very

high cutting speeds. It also exhibits good toughness and thermal shock resistance.

CBN tools are ideal for the use with hardened steel, cast irons, and sintered irons as well as powder metallurgy components.

Main products:

PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.


Advantages:
· Universal
· Easy choice
· Fast delivery


Service:
· Online store service
· Local distributor support
· Technical support


Specification:

Material Introduction - Easy choice for CBN Grade

ISO H: Hardened Steel Continuous cutting

ISO K: Cast Iron Light interrupted cutting

ISO S: Powder Metallurgy Heavy interrupted cutting

Material ISO H ISO K ISO S
PCBN Grade MHN10C MHN20C MNH30C MKN10 MKN20 MSN10 MSN20
Smooth Moderate Toughness Cast Iron Ductile Iron Powder Metallurgy Powder Metallurgy
Vc 180(150~250)
m/min		 100(50~150)
m/min		 80(30~120)
m/min		 600(300~800)
m/min		 300(150~450)
m/min		 300(200~500)
m/min		 500(300~800)
m/min
fn 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r
% 45~55 60~70 85~95 85~95 60~70 60~70 85~95
Grain size 1~2 um 1~2 um 2~3um 2~3 um 1~2 um 1~2 um 2~3 um
Bond TiC TiN Co/W Co/W TiCN TiCN Co/W

WNGA Shape Dimensions
ANSI Code ISO Code Tips IC
mm		 S
mm		 R
mm		 Φd
mm		 LE
mm
All
Stocked		 WNGA 431 WNGA 080404 3N 12.7 4.76 0.4 5.16 2.2
WNGA 432 WNGA 080408 3N 12.7 4.76 0.8 5.16 2.2
