Specifications
Brand Name :
ManaNova
Model Number :
TCGW 110204
Certification :
ISO9001,14001.18001, RoHS
Place of Origin :
Beijing, China
MOQ :
2 Piece
Price :
$20-40/ Piece
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
In stock
Delivery Time :
3-4days
Packaging Details :
2 PCs/Blue rose box
Product Brand :
WORLDIA
Product Family :
ManaNova
Material :
PCBN+Carbide
PCBN Grade :
MNH10C/20C/30C
Application :
Maching of hardening steel
Coating :
C3
Tips :
3
Description

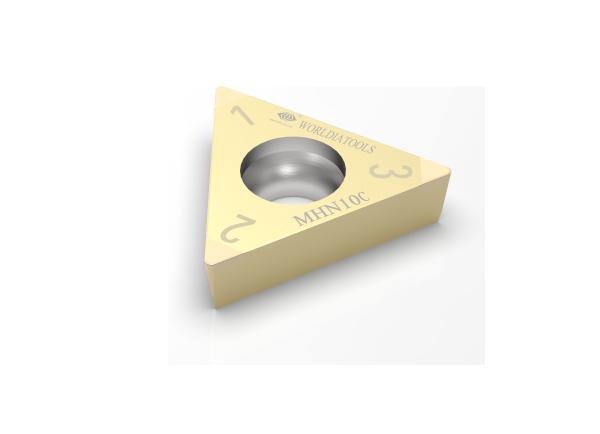

TCGW110204 Coated PCBN Carbide Turning Insert CBN Cutting Insert for hardened steel

Description:

MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,

PCD / PCBN standard inserts are the main products.

Advantages:
· Universal
· Easy choice
· Fast delivery

MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and efficient

service for domestic and foreign customers to meet their demand for standardized and universalized tools.

Main products:

Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,

cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C, MKN10, MKN20, MSN10, and MSN20.

MHN10C Applied to the continuous cutting of hardened steel
MHN20C Applied to medium interrupted cutting of hardened steel
MHN30C Applied to the heavy interrupted cutting of hardened steel
MKN10 Applied to the cutting of gray cast iron
MKN20 Applied to the cutting of ductile iron
MSN10 Applied to the cutting of powder metallurgy
MSN20 Applied to the cutting of powder metallurgy

Coated PCBN insert has excellent universal performance.

PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone

industry.

PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.

Specification:

Material ISO H ISO K ISO S
PCBN Grade MHN10C MHN20C MNH30C MKN10 MKN20 MSN10 MSN20
Smooth Moderate Toughness Cast Iron Ductile Iron Powder Metallurgy Powder Metallurgy
Vc 180(150~250)
m/min		 100(50~150)
m/min		 80(30~120)
m/min		 600(300~800)
m/min		 300(150~450)
m/min		 300(200~500)
m/min		 500(300~800)
m/min
fn 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.2)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r		 0.1(0.03~0.3)
mm/r
% 45~55 60~70 85~95 85~95 60~70 60~70 85~95
Grain size 1~2 um 1~2 um 2~3um 2~3 um 1~2 um 1~2 um 2~3 um
Bond TiC TiN Co/W Co/W TiCN TiCN Co/W

TCGW Shape Dimensions
ANSI Code ISO Code Tips IC
mm		 S
mm		 R
mm		 Φd
mm		 LE
mm
All
Stocked		 TCGW 1.81.51 TCGW 090202 3N 5.56 2.38 0.4 2.8 2.2
TCGW 1.81.52 TCGW 090208 3N 5.56 2.38 0.8 2.8 2.2
TCGW 21.51 TCGW 110204 3N 6.35 2.38 0.4 2.8 2.2
TCGW 21.52 TCGW 110208 3N 6.35 2.38 0.8 2.8 2.2
TCGW 221 TCGW 110304 3N 6.35 3.18 0.4 2.8 2.2
TCGW 222 TCGW 110308 3N 6.35 3.18 0.8 2.8 2.2
